Rovema CMK Operator’s Manual
Section 5: Operator Controls
200246 CMK Operators Manual (02/06/2006) 5-41
Recipe Management Screen
Recipe Management Screen
The Recipes Management screen helps you manage up to 100 product recipes. It
allows you to save all of the forming parameters for the current recipe under the
same name or under another existing recipe name. It also allows you to load or
rename any of the recipes.

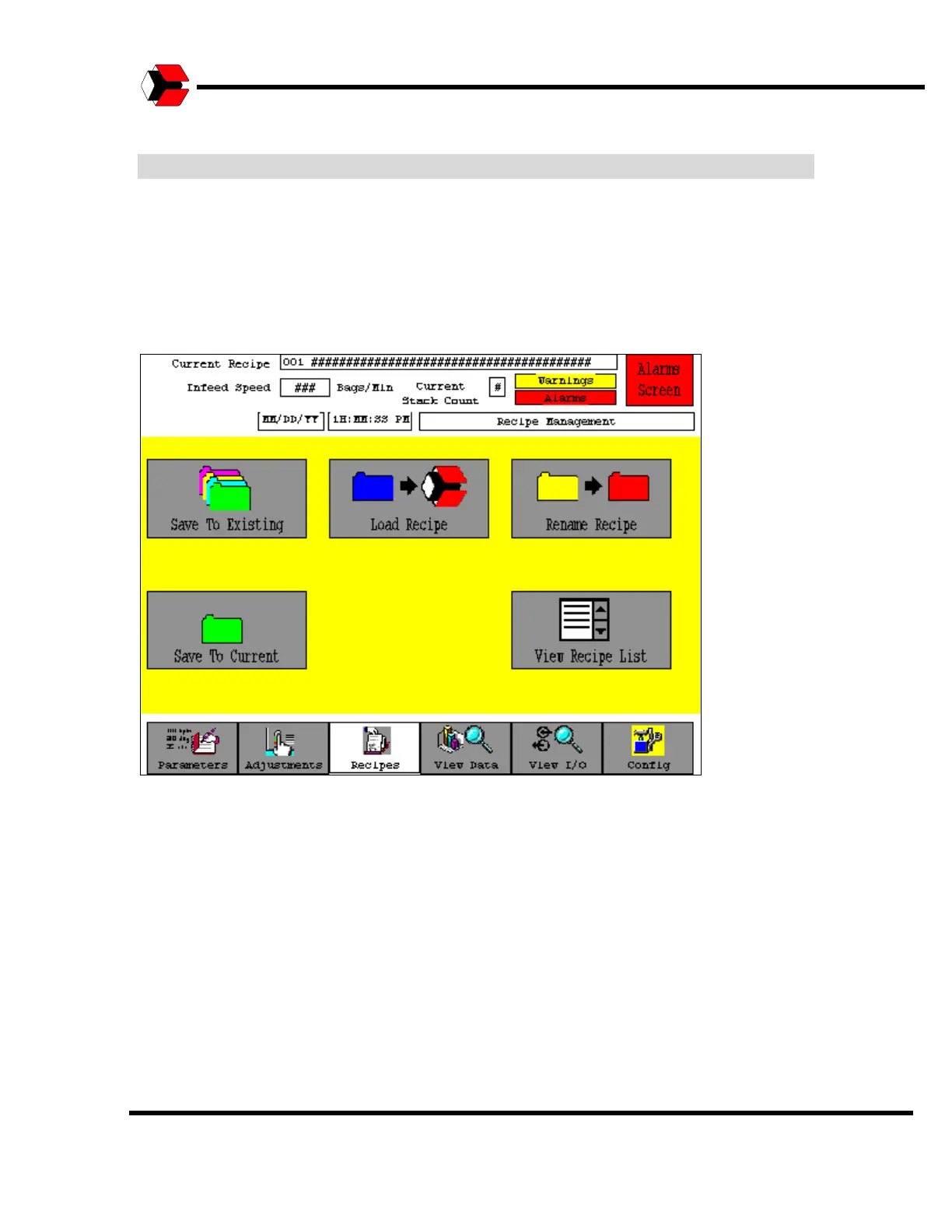

Figure 5.47
Shows the Recipes Management Screen.
