Rovema CMK Operator’s Manual
Section 5: Operator Controls
200246 CMK Operators Manual (02/06/2006) 5-43
HMI (Human-Machine-Interface)
Save To Selected Recipe Screen
When the Operator selects “Save To Selected”, he/she will be prompted to enter a
password to proceed. If the correct password is entered, the Save To Selected
screen will appear as shown in the figure below. Use the scroll arrows to select the
desired recipe.
While the save function is in progress, the text on the Save button changes to
display “Saving”. When the save is complete, the Save button will return to its
normal state.

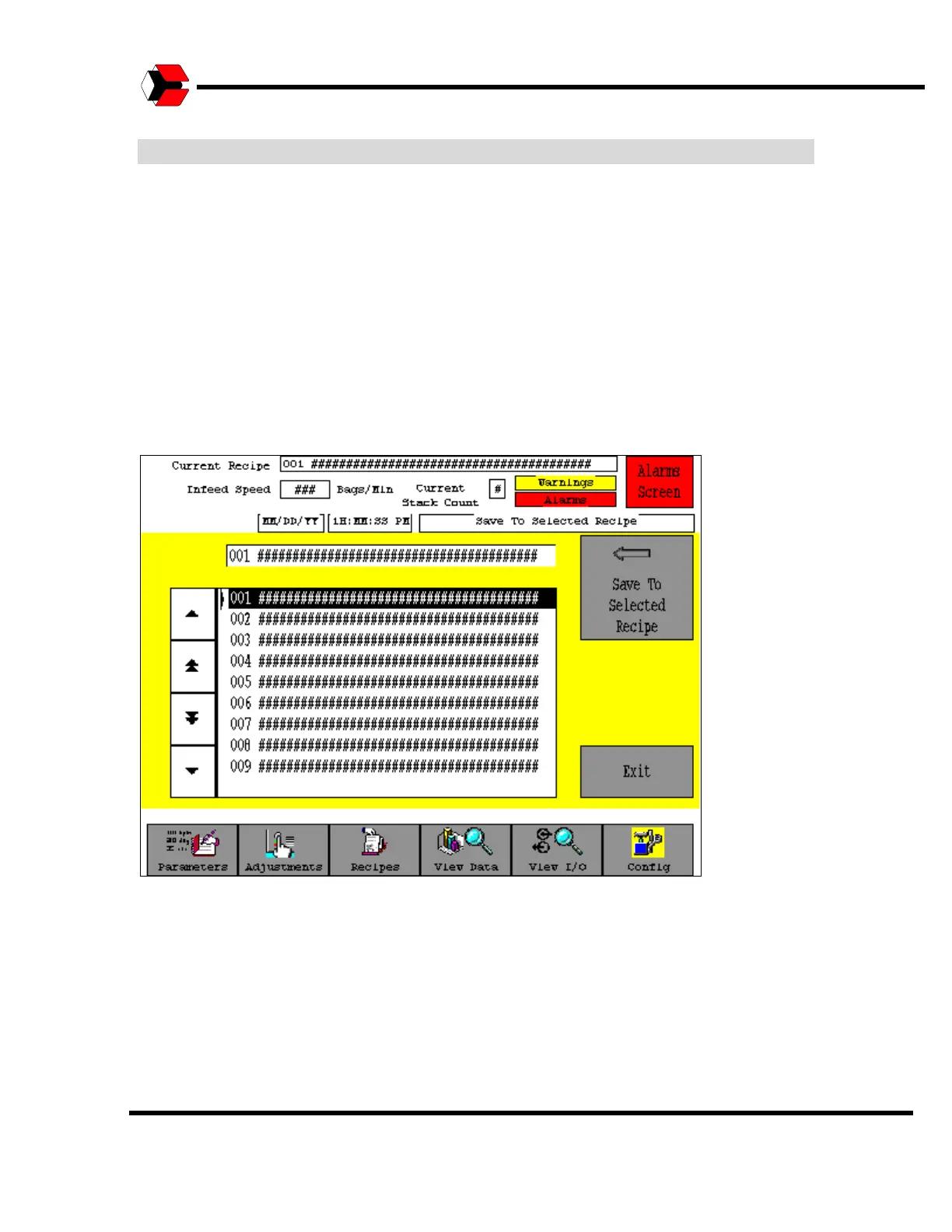

Figure 5.50
Save To Selected Recipe Screen
The screen shows a scroll list of all 100 recipes in the controller, and provides a
Save button, which allows the currently loaded parameter set to be saved to the
selected recipe. The Operator may also return to the Recipe Management screen
without saving the recipe by pressing the Exit button.
While the save function is in progress, the text on the Save button changes to
display “Saving”. When the save is complete, the Save button will return to its
normal state.
