Rovema CMK Operator’s Manual
Section 7: Working with Components
200246 CMK Operators Manual (02/06/2006) 7-12
Carton Supply
Adjusting the Carton Guide
The cartons must be aligned on the carton guide. This setting corresponds to the
length of the cover flap on the carton. Measure the length of the cover flap, in
millimeters, then adjust the spindle to that number on the adjustment knob’s dial.
Turning the adjustment knob moves the carton guide forward or backward.

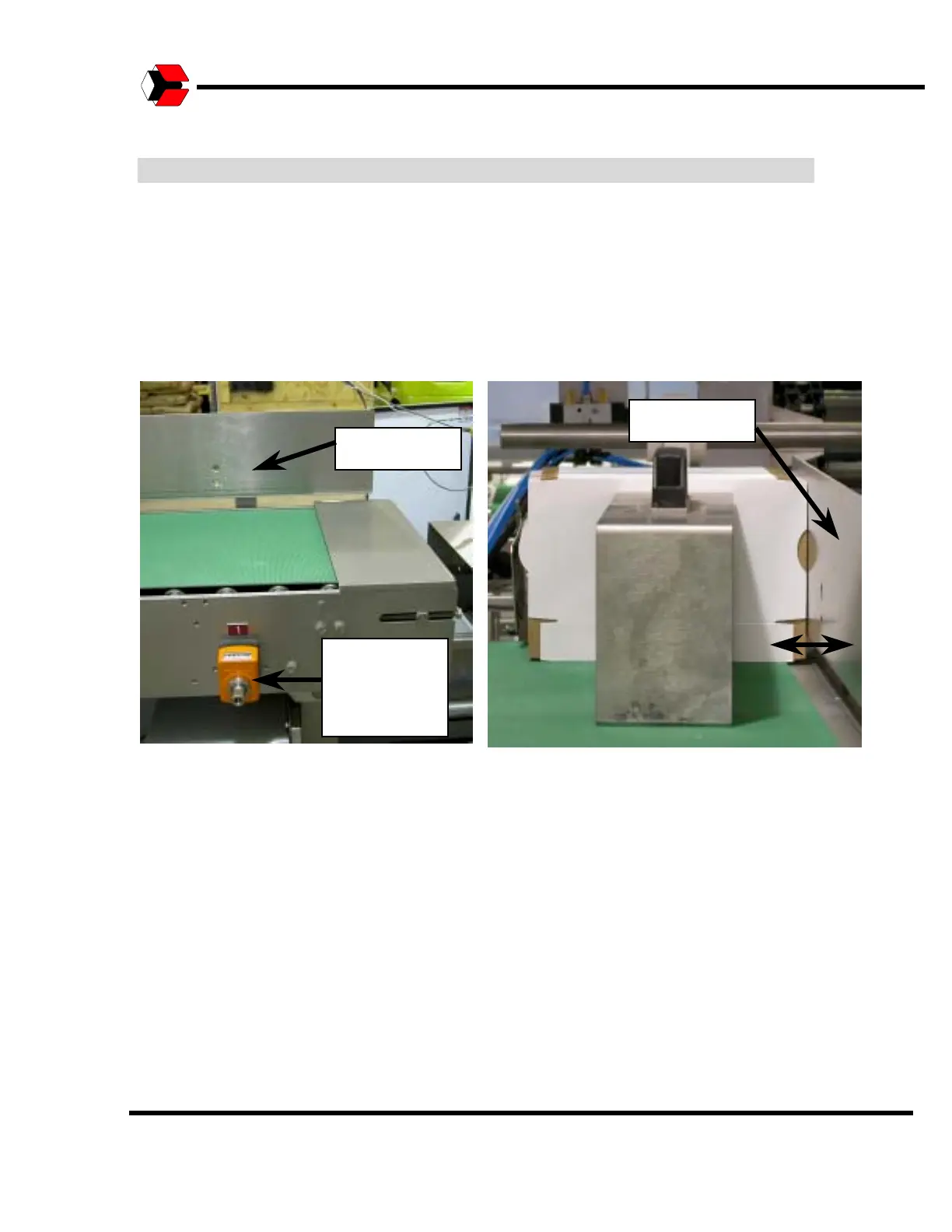

Figure 7.4
Adjusting the carton guide.
Carton Guide
Adjustment
Knob and Dial
Indicator
Carton Guide
Carton Guide
