Carton Magazine
Front and Rear Pushers
The front pushers (#2) are activated before the rear pushers (#4). The cartons
(#7) are first pushed away from the front part of the carton holding surface into
the holding gap (#5) of the rear pusher. The lowest carton in the magazine falls
forward out of the magazine. It is held in place in the holding gap (#5) of the rear
pushers (#4) until they are activated.

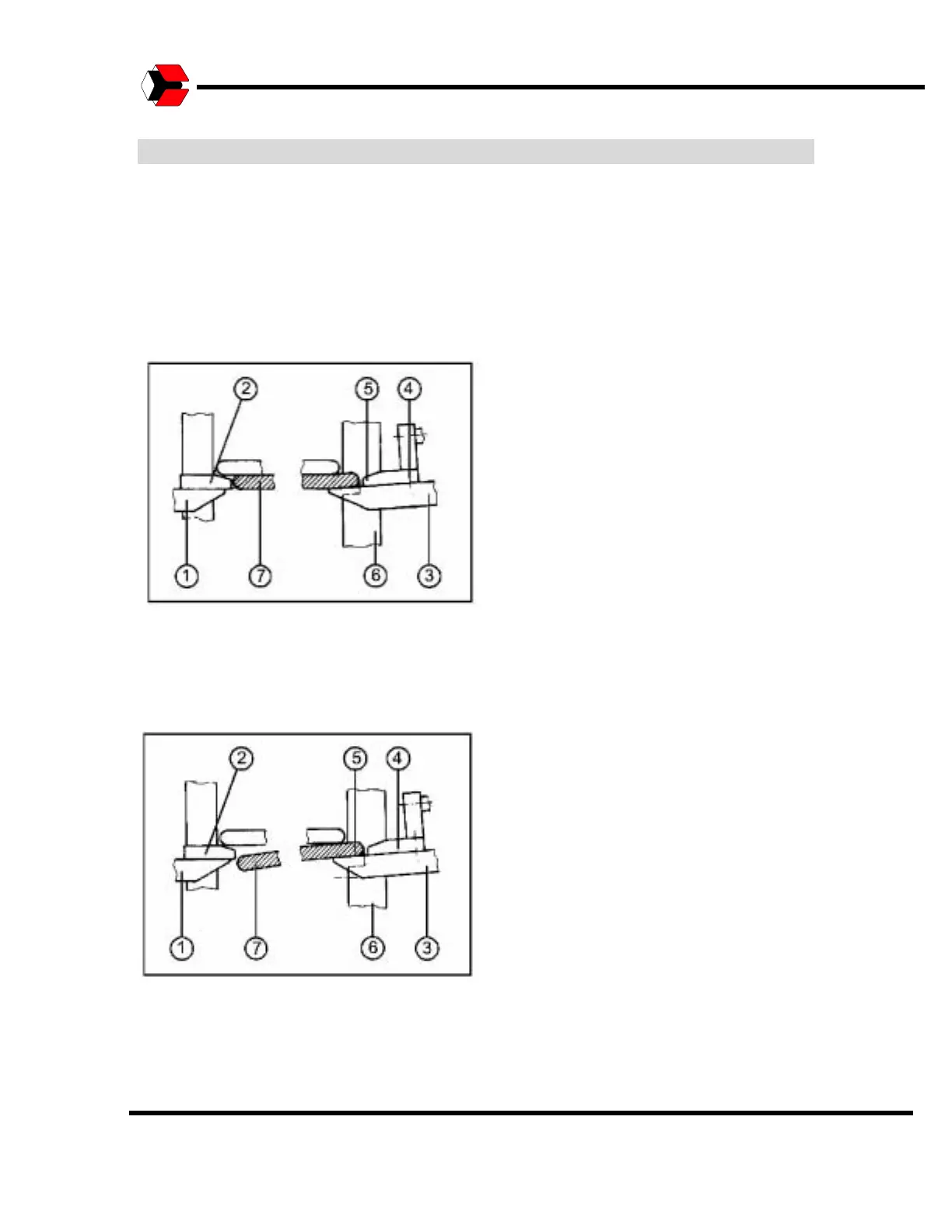

Figure 4.7
Demonstrates the pushers action.
When the rear pushers (#4) are activated, the carton is pushed out of the
magazine and falls onto the guide rails of the driver chain.
Figure 4.8
Demonstrates the pushers action.
