Rovema CMK Operator’s Manual
Section 7: Working with Components
200246 CMK Operators Manual (02/06/2006) 7-36
Guides
Flap Guide Adjustments
The flap guides must be adjusted to match the required dimensions of the carton.
The individual guides may be adjusted to the appropriate carton dimension by
loosening the fastening screws. The guides in the area of the folding magazine
are automatically adjusted when the carton size is adjusted. Other guides are
connected with adjustment points (for example height adjustment) and are
changed during an adjustment.
NOTE: The guides must always be checked after an adjustment is made. Move a
carton through the machine in JOG mode to check for any problems.

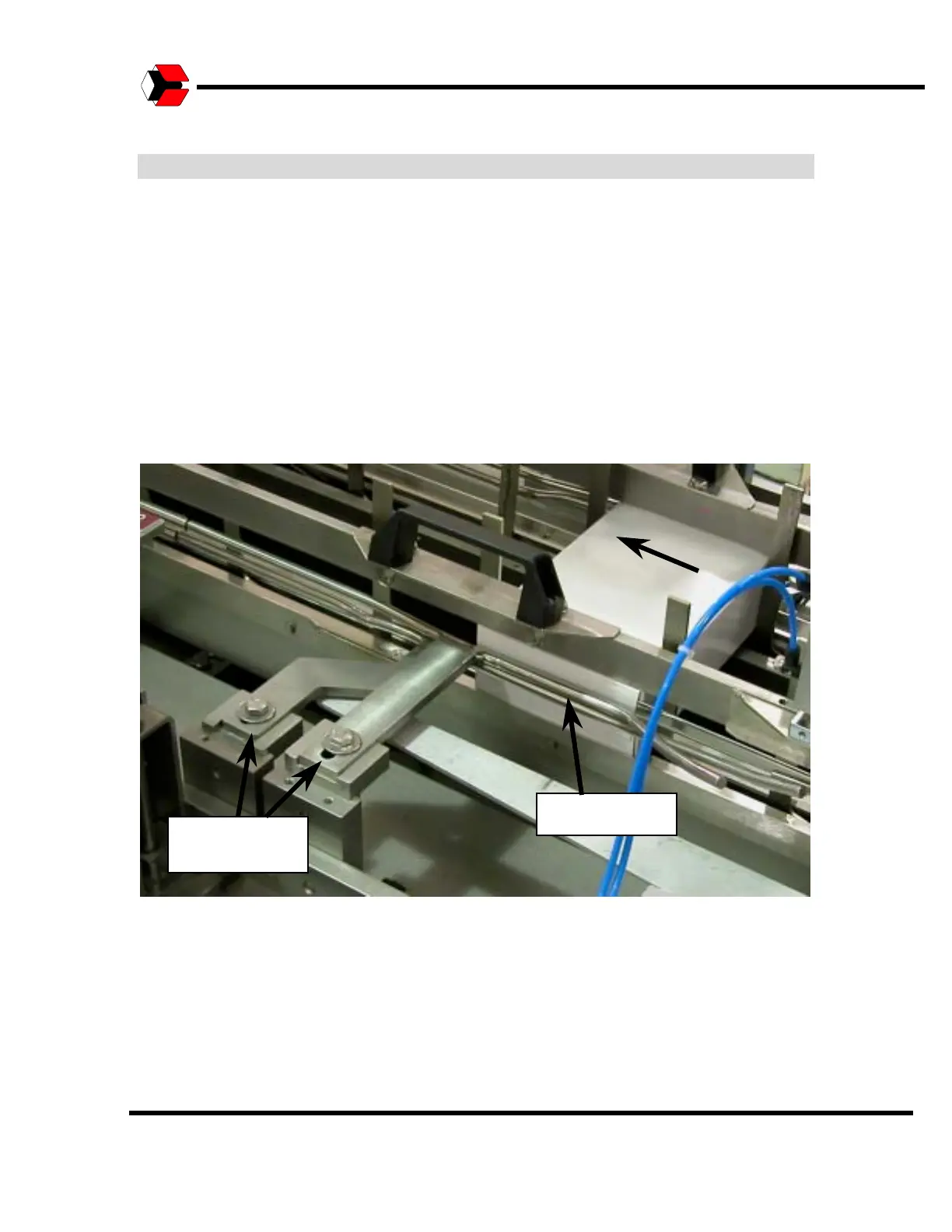

Figure 7.28
Flap Guide adjustments.
Flap Guides
Flap Guides
Adjustments
