Bucket Conveyor
Adjust Bucket Conveyor
To adjust the bucket size on the bucket conveyor, the mechanical coupling of the
adjustable bucket side must be released. To do this, go to location #19 as shown
below and open the access cover, place the hand wrench on the bolt and release
the mechanical coupling by turning it counterclockwise.

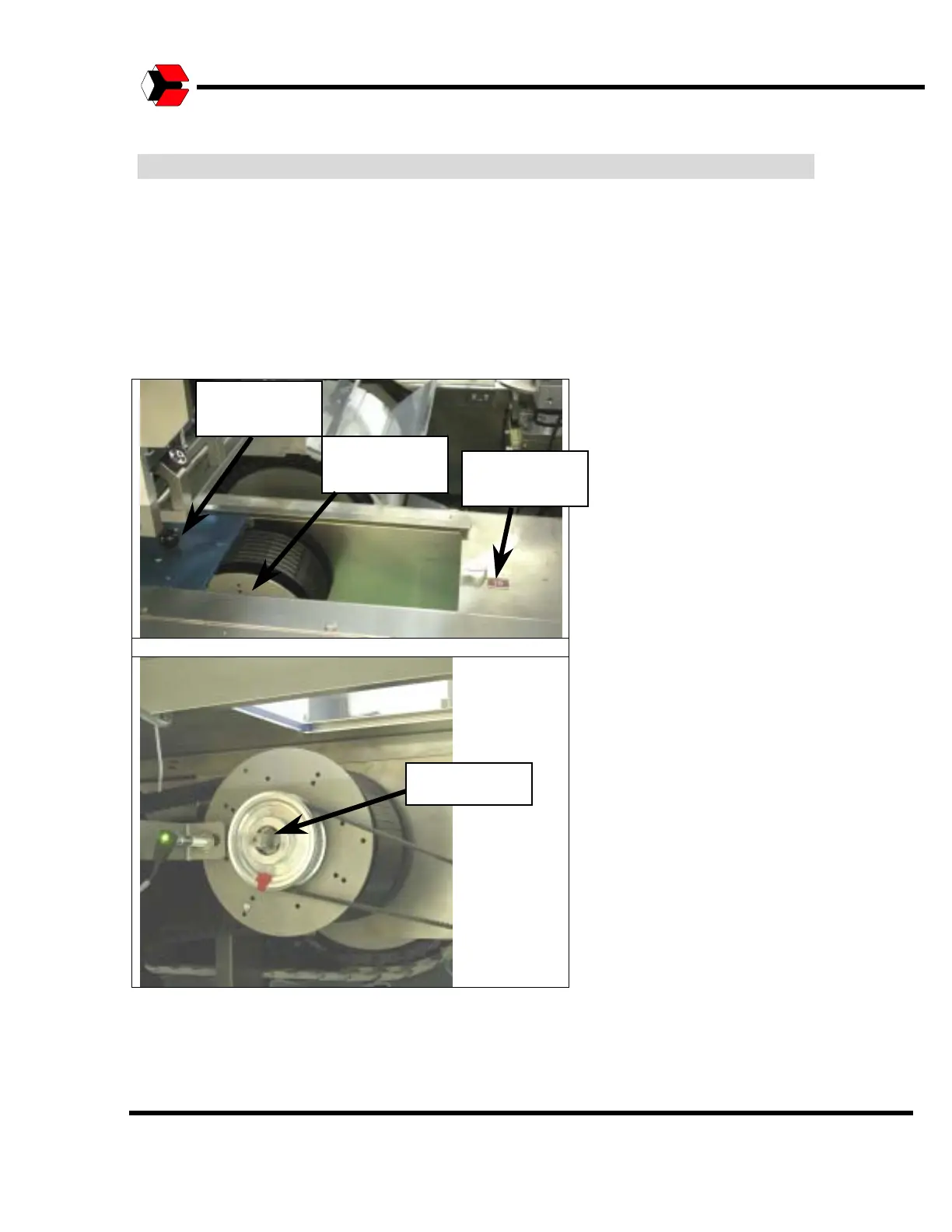

Figure 7.29
Adjusting the bucket size.
Open Access
Cover
Location #19
Loosen Bolt
Loosen Bolt
(See Below)
