Rovema CMK Operator’s Manual
Section 5: Operator Controls
200246 CMK Operators Manual (02/06/2006) 5-10
HMI (Human-Machine-Interface)
PLS Timing Channels Screens
These screens contain the PLS (Programmable Limit Switch) parameters. These
include the Product Detect, Carton Release, Flap Lifter, Load Enable, Jam Detect,
Open Flap Detect. Leaflet Enable and Laser Printer Enable values.

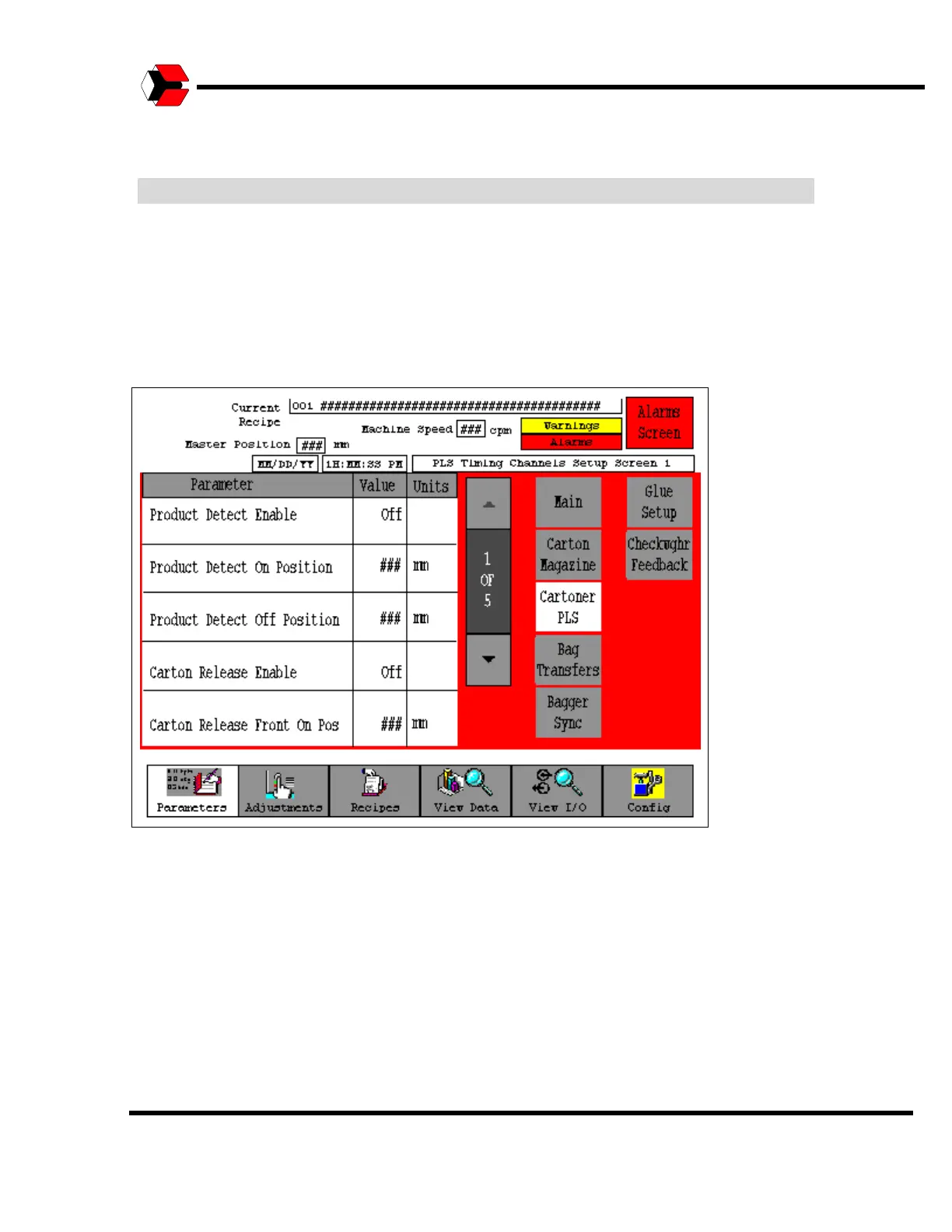

Figure 5.11
Cartoner PLS Screen 1 of 5
