Rovema CMK Operator’s Manual
Section 4: Parts and Functions
200246 CMK Operators Manual (02/06/2006) 4-9
Carton Erector
The carton erector is a combination of a flap raiser, flap guides and an air nozzle.
The cartons are erected between the carton holding-down device and the carton
chain. The cartons are moved out of the magazine by the driver chain and moved
to the carton chain.
The cartons held down by the hold-down device until they have completely left
the magazine. At the same time, the two upper cover flaps are raised to the side
guides by a pneumatically activated flap raiser. The lower cover flap runs into the
lower side guide.

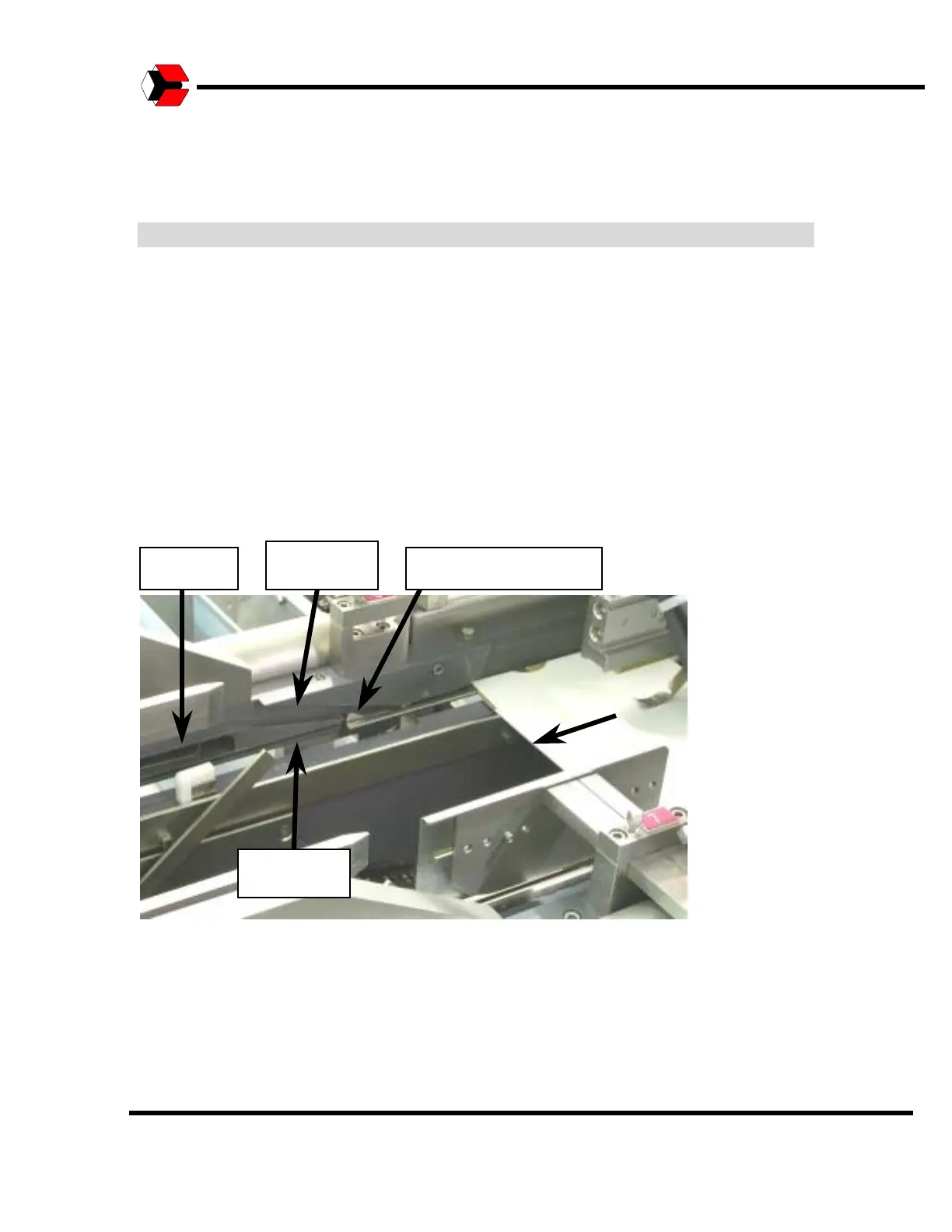

Figure 4.10
Shows the carton erector.
Air Nozzle Pneumatic Flap Raiser
Upper Flap
Guides
Lower Flap
Guide
