Rovema CMK Operator’s Manual
Section 4: Parts and Functions
200246 CMK Operators Manual (02/06/2006) 4-22
Carton Guides
The purpose of the carton guides is to hold cartons that have been erected into a
rectangular position. The guides form a closed frame around the cartons. The
outer (fixed) flights of the carton, the inner (adjustable) flights, the height
adjustment and the carton holding surface form the frame for cartons.

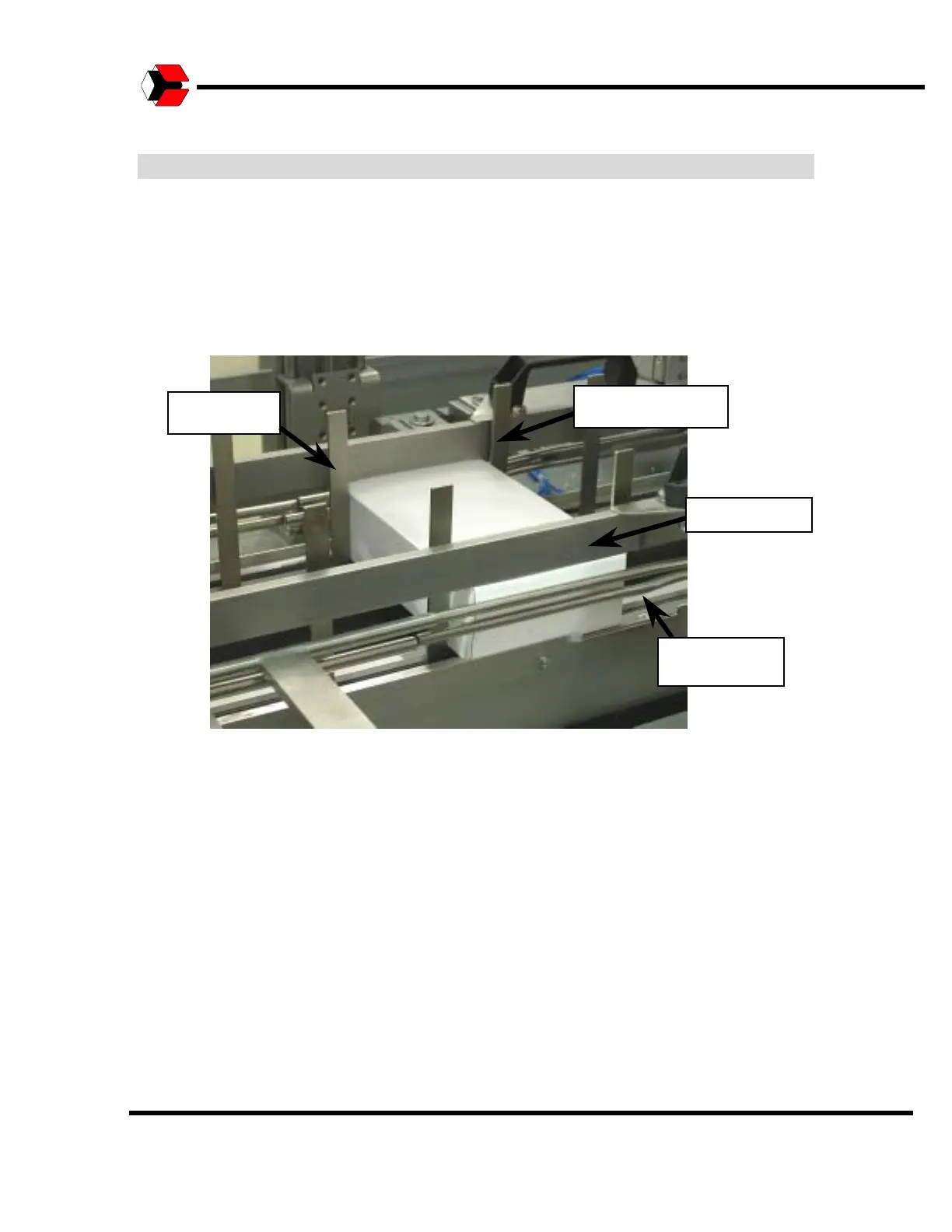

Figure 4.23
Shows the carton guides.
Fixed Flight
Adjustable Flight
Upper Guide
Fixed Holding
Surface
