Rovema CMK Operator’s Manual
Section 8: Maintenance
200246 CMK Operators Manual (02/06/2006) 8-14
Lubrication
General
The reliability of the carton machine and its operation depend significantly on a regular and
adequate lubrication program. Operating malfunctions are often the result of a lack of lubrication
or failure to observe lubrication intervals. Always use the correct lubricants.
To achieve good lubrication results:
• Verify that the lubrication equipment is operating properly.
• Use only recommended lubricants.
• Clean the lubrication locations so the lubricant is applied properly.
• Apply the lubrication on regular intervals.
Central lubrication
• This machine is equipped with a central lubrication system that supplies lubricant (oil) to
all necessary areas in the machine.
• The lubricant is drawn out of a storage container, through tubing, to areas that require
lubrication on regular intervals.
• In the standard design of the machine, this process is initiated by the operator, who uses
a lever on the lubrication pump.
• The machine can also be fitted with an optional automatic central lubrication system.

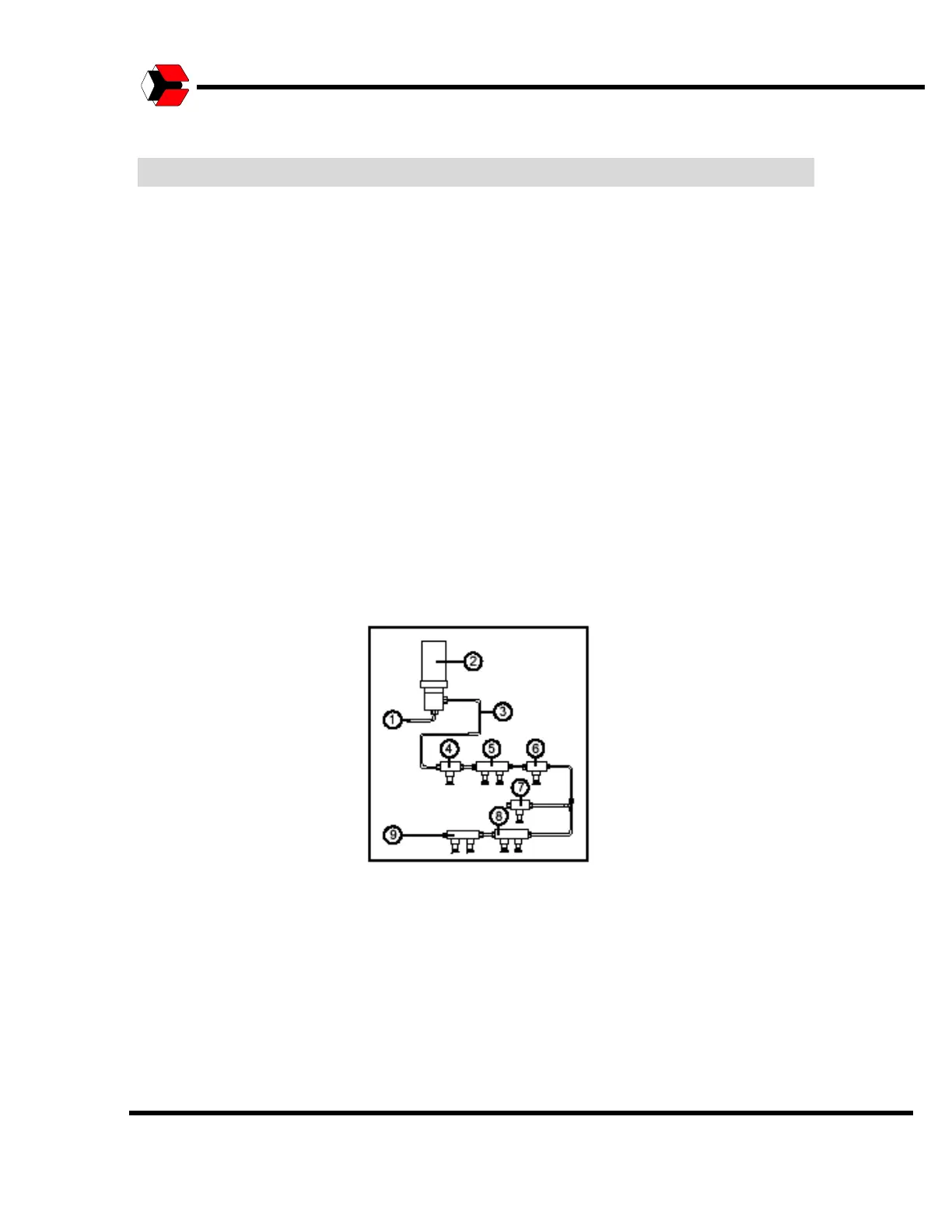

• The drawings below illustrate the layout of the central lubrication system.
(1) Pneumatic connection
(2) Pump
(3) Line
(4) Cup chain lubrication
(5) Cup chain lubrication
(6) Cup chain lubrication
(7) Intermediate chain (optional)
(8) Folding carton chain
(9) Folding carton chain
