Carton Supply
Carton Supply Setup
The mechanical settings for carton supply depend on the dimensions of the
carton blanks. The carton guides and the retaining roller may be adjusted to
different carton dimensions. When the cartons are placed on the conveyor, there
must be a right angle between the cartons and the carton guide. There must also
be a right angle between the cartons and the supply conveyor.

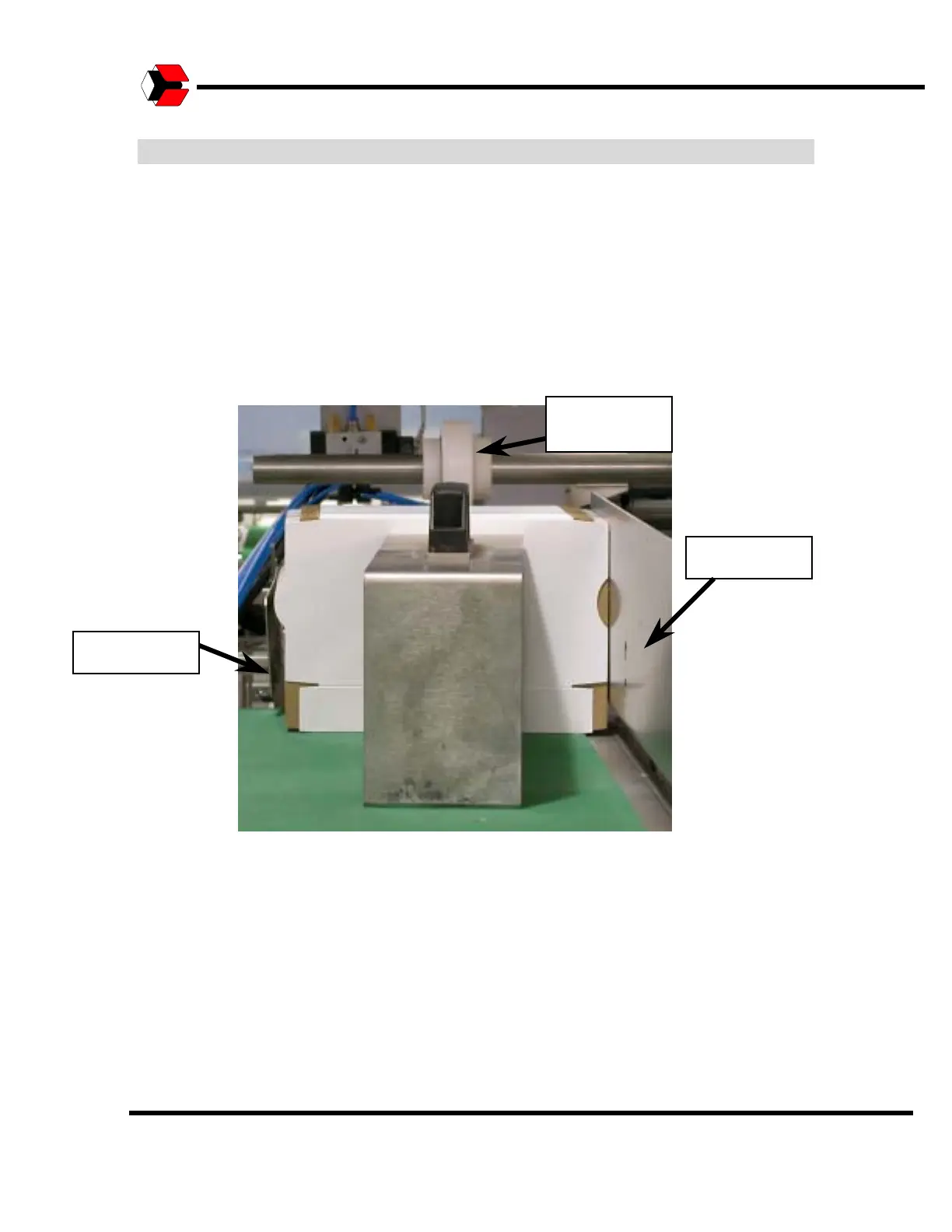

Figure 4.3
Shows the carton supply guides.
Retaining
Roller
Carton Guide
Carton Guide
