Carton Conveyor
Rear Flap Closers

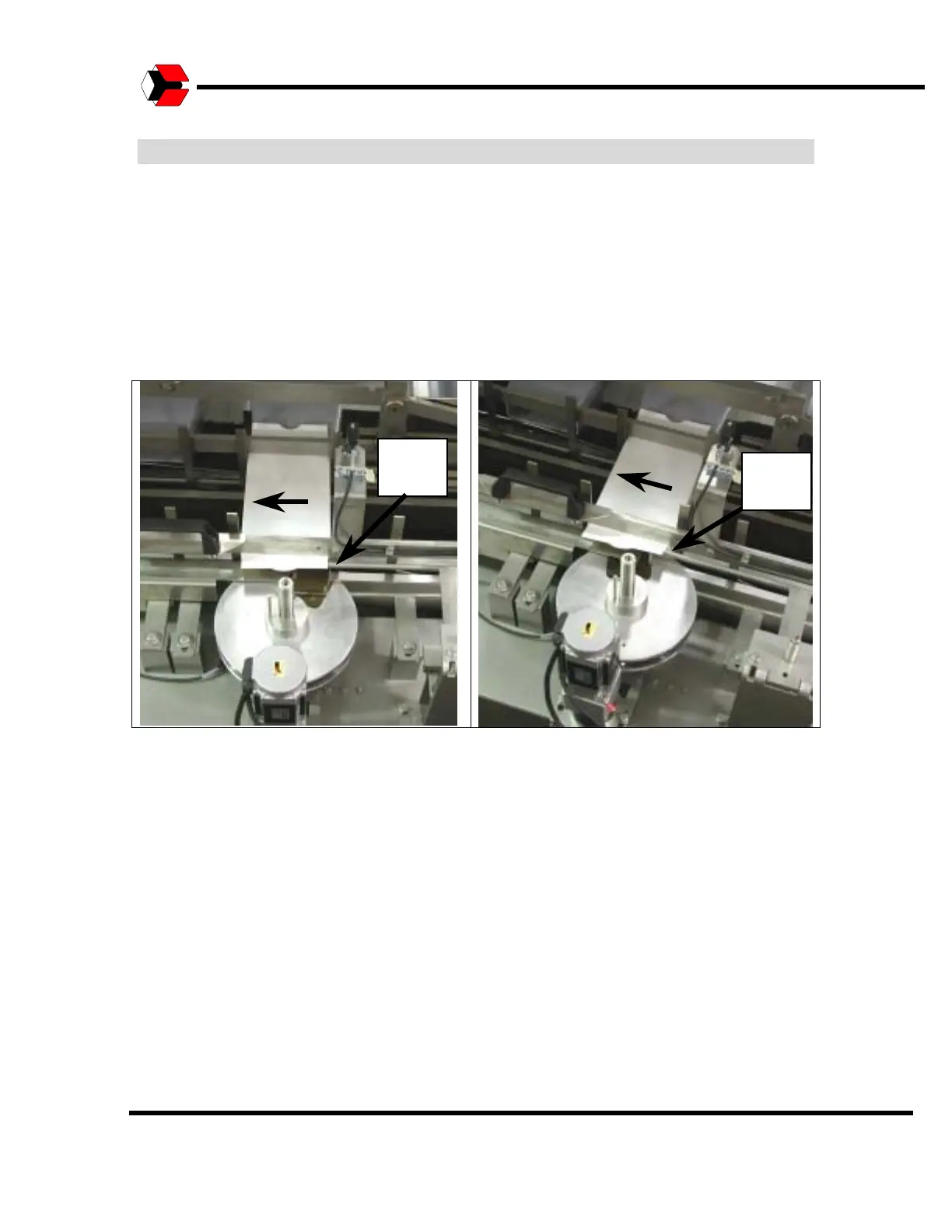

The below figure shows the rear side flaps being caught in the recess in the disk.
The flaps are inserted and held in place by rod guides. The recess is
synchronized to the carriers of the outer carton chain. This makes it possible for
the disk to insert the rear flap.
Figure 4.16
Shows the rear flap closer.
Rear
Flap
Rear
Flap
