Rovema CMK Operator’s Manual
Section 5: Operator Controls
200246 CMK Operators Manual (02/06/2006) 5-46
HMI (Human-Machine-Interface)
View Recipe List Screen
When the Operator selects “View Recipe List”, the Recipe List screen will appear as
shown in the figure below. This screen is not password protected.

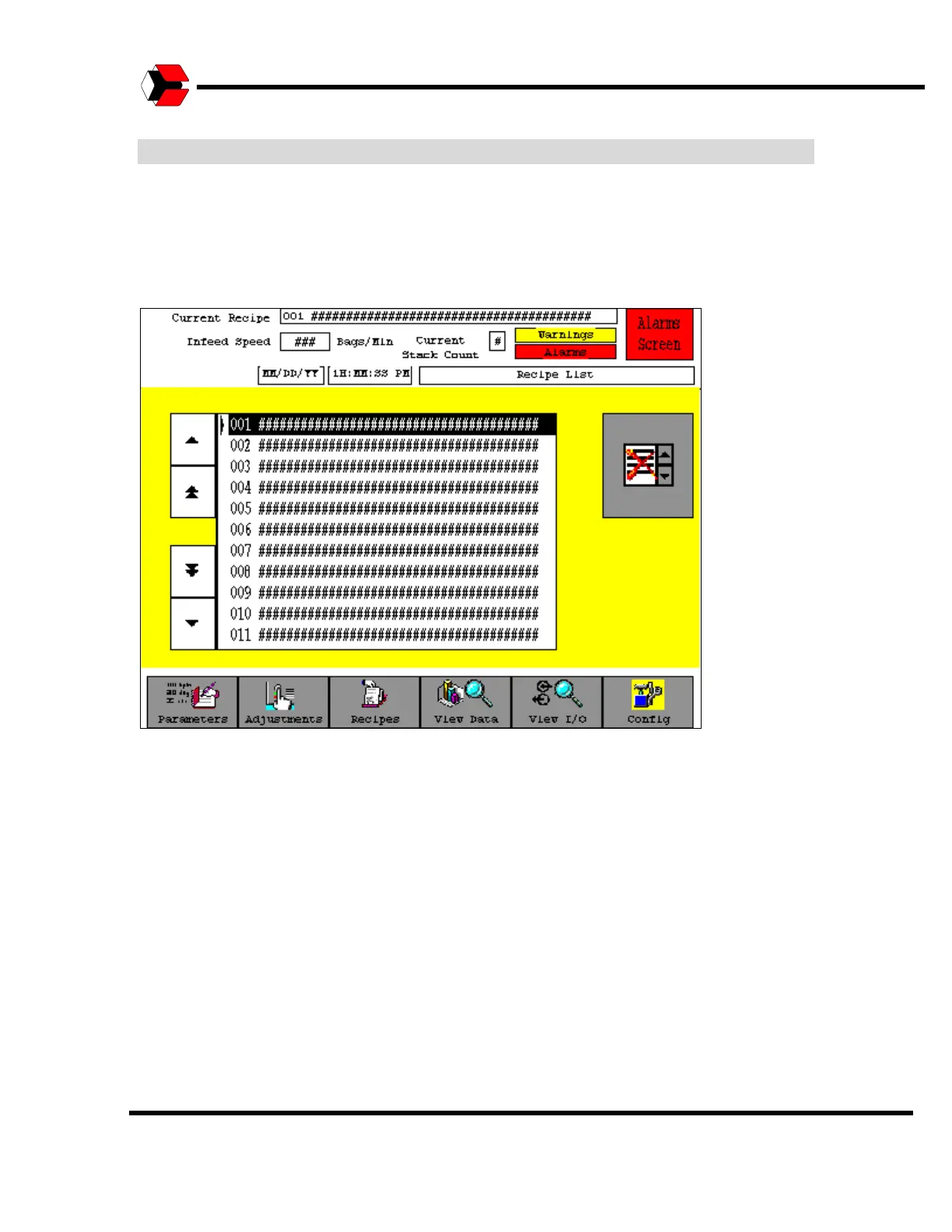

Figure 5.53
View Recipe List Screen
The screen shows a scroll list of all 100 recipes in the controller’s memory. Use the
scroll arrows to select the desired recipe. The Operator may return to the Recipe
Management screen by pressing the button with the “X” graphic.
