Rovema CMK Operator’s Manual
Section 3: Functional Descriptions
200246 CMK Operators Manual (02/06/2006) 3-4
Functional Descriptions

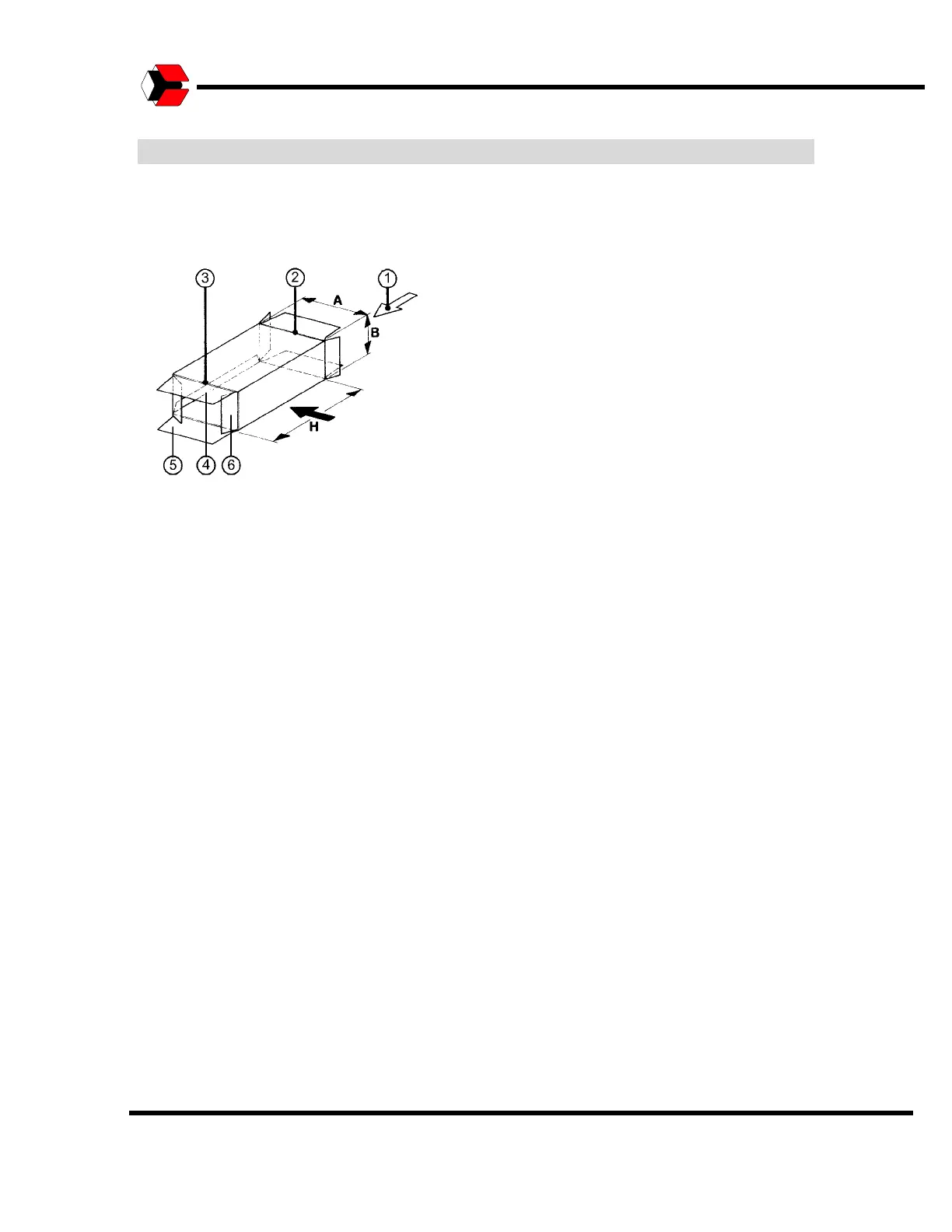

Carton Designations
For the purposes of these operating instructions, the parts of cartons
are designated as follows:
(1) Insert side
(2) Bottom side
(3) Top side
(4) Upper cover flap
(5) Lower cover flap
(6) Side flap
A = Width
B = Height
H = Length
Figure 3.2
The designations are determined by the machine, based only on the direction of
motion of the cartons. The position of a print format has no effect on the
designation.
Gluing
Hot melt glue is applied to close the carton flaps. The length of the glue that is
applied (the track) and the amount of glue can be adjusted on the HMI operating
display and on the glue device. The glue nozzles that are used are also an
important consideration for the specific glue application. (Consult the operating
instructions for the glue device to obtain additional information.)
