Barrel Loader
Insertion Slides Adjustments:
• To replace insertion plates (1), loosen clamping screw (3) then remove
and replace plate (1).
• To adjust the insertion depth of the slides into the carton use adjustment
screw (2).
• If the slide should not be inserted into the carton, remove adjustment
screw (2).
• To remove the entire slide, loosen the fastening screw (5). This may be
necessary to replace the rollers (4).

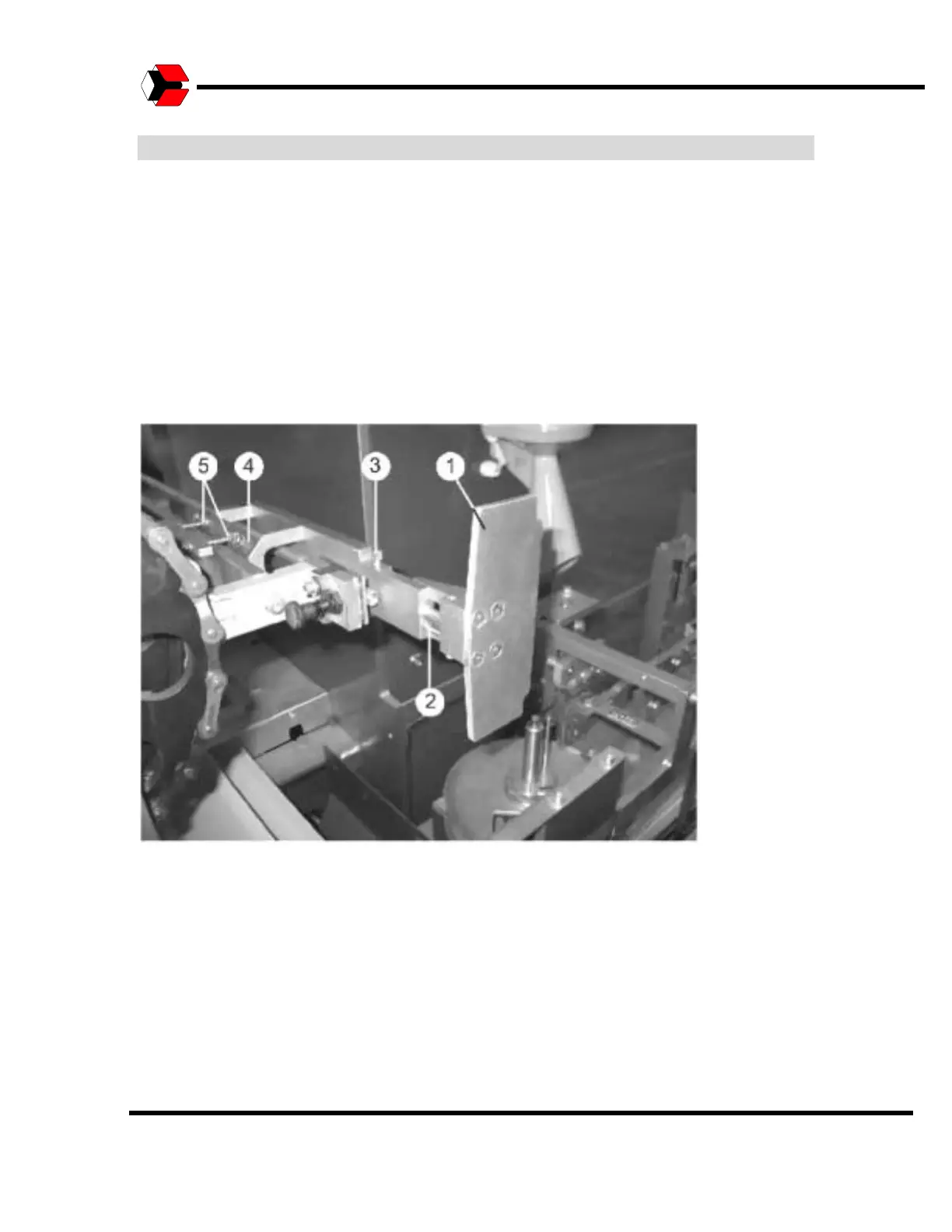

Figure 7.22
Replacing Insertion Slides.
