SATO CT4-LX User Manual

119

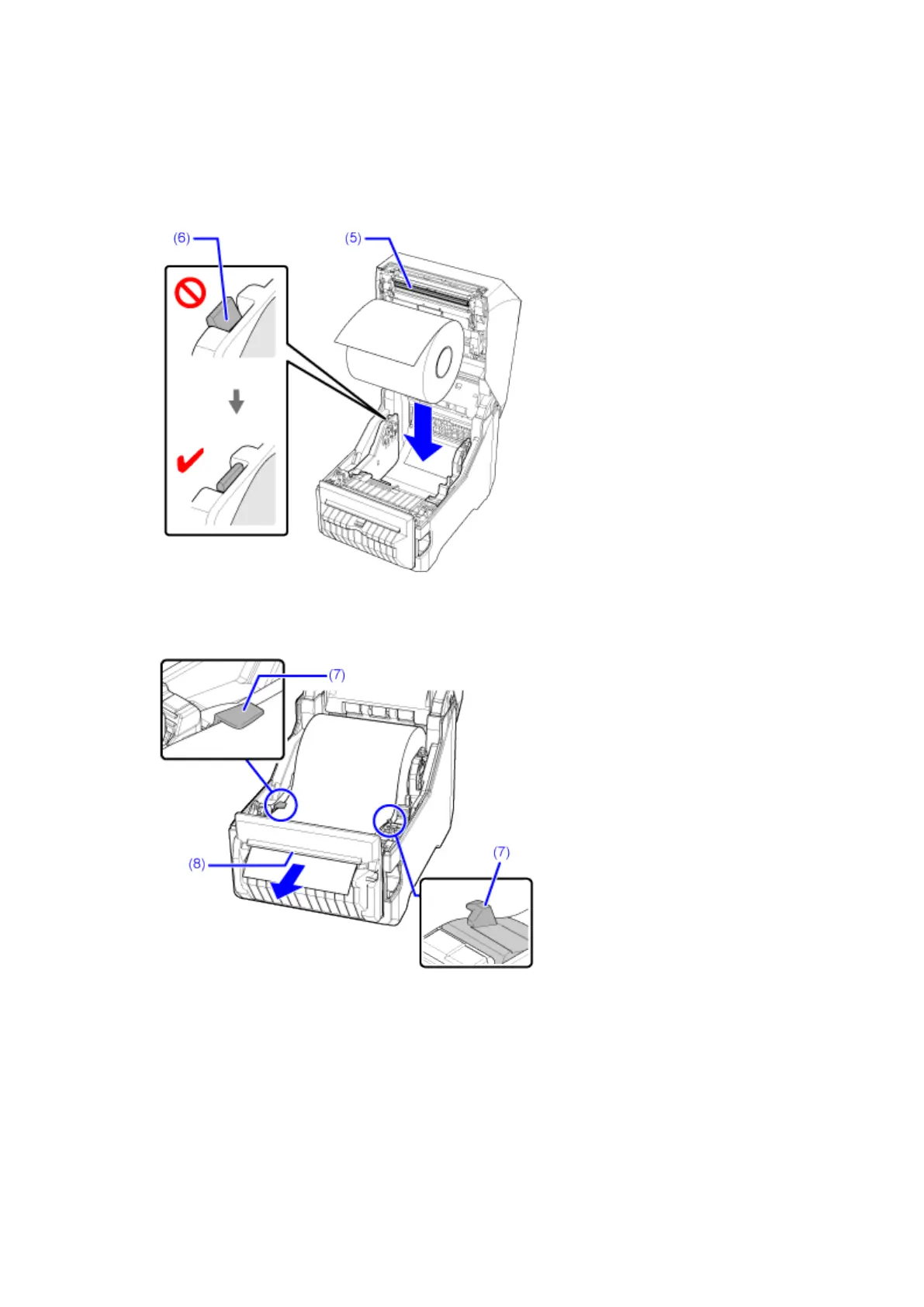

3. Load the media roll.
Load the media roll from above so the print side faces the print head (5).
If the media roll is loaded correctly, the flaps (6) stand up.
4. Pull the media out from the product so it goes under the left and right tabs (7), and
pass it through the media discharge outlet (8).
5. Close the top cover.
Push both ends of the top cover, and close it firmly until it clicks.

SATO CT4-LX Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Print Resolution	203 dpi
Max Print Width	4.09 inches (104 mm)
Media Type	Roll, Fan-fold
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Ribbon Width	0.98 inches (25 mm) to 4.09 inches (104 mm)
Ribbon Length	984 feet
Connectivity	USB, Ethernet, Bluetooth
Supported Barcode Types	PDF417, QR Code
Power Requirements	100-240 VAC, 50/60 Hz
