SATO CT4-LX User Manual

Operations in Linerless Tearoff Mode
342
Operations in Linerless Tearoff Mode

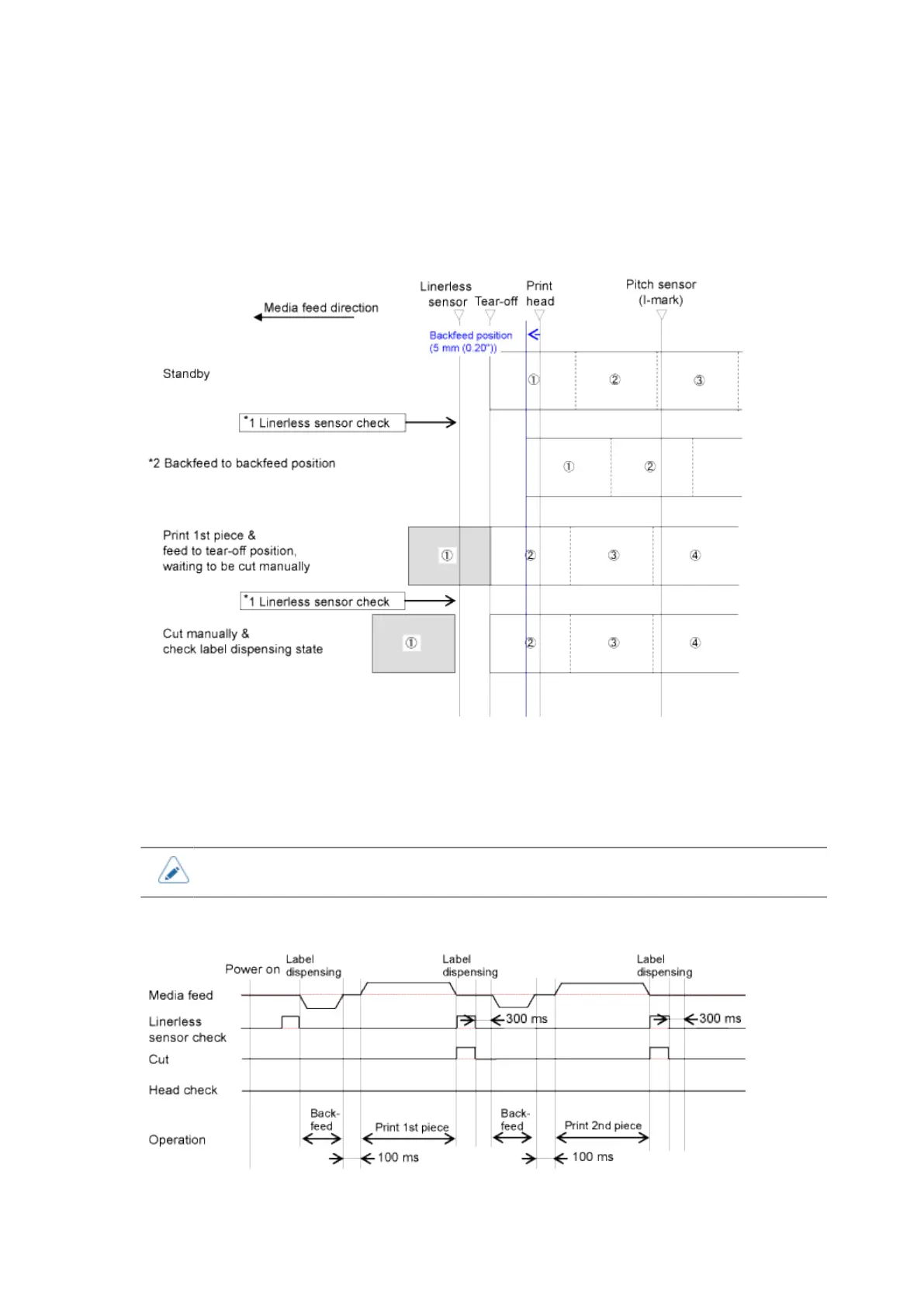

Linerless Tearoff Mode (Head Check Disabled)
Operation
*1 The linerless sensor confirms the dispensing condition and the product does not perform the next
operation until the label is dispensed.
*2 The backfeed speed becomes 2 inches/sec immediately after powering on the product, or more
than 1 hour after completing a print operation or after completing a feed operation.
• The figure above shows the reference position when the I-mark sensor is used.
Timing Chart

SATO CT4-LX Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Print Resolution	203 dpi
Max Print Width	4.09 inches (104 mm)
Media Type	Roll, Fan-fold
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Ribbon Width	0.98 inches (25 mm) to 4.09 inches (104 mm)
Ribbon Length	984 feet
Connectivity	USB, Ethernet, Bluetooth
Supported Barcode Types	PDF417, QR Code
Power Requirements	100-240 VAC, 50/60 Hz
