SATO CT4-LX User Manual

RS-232C Interface
524

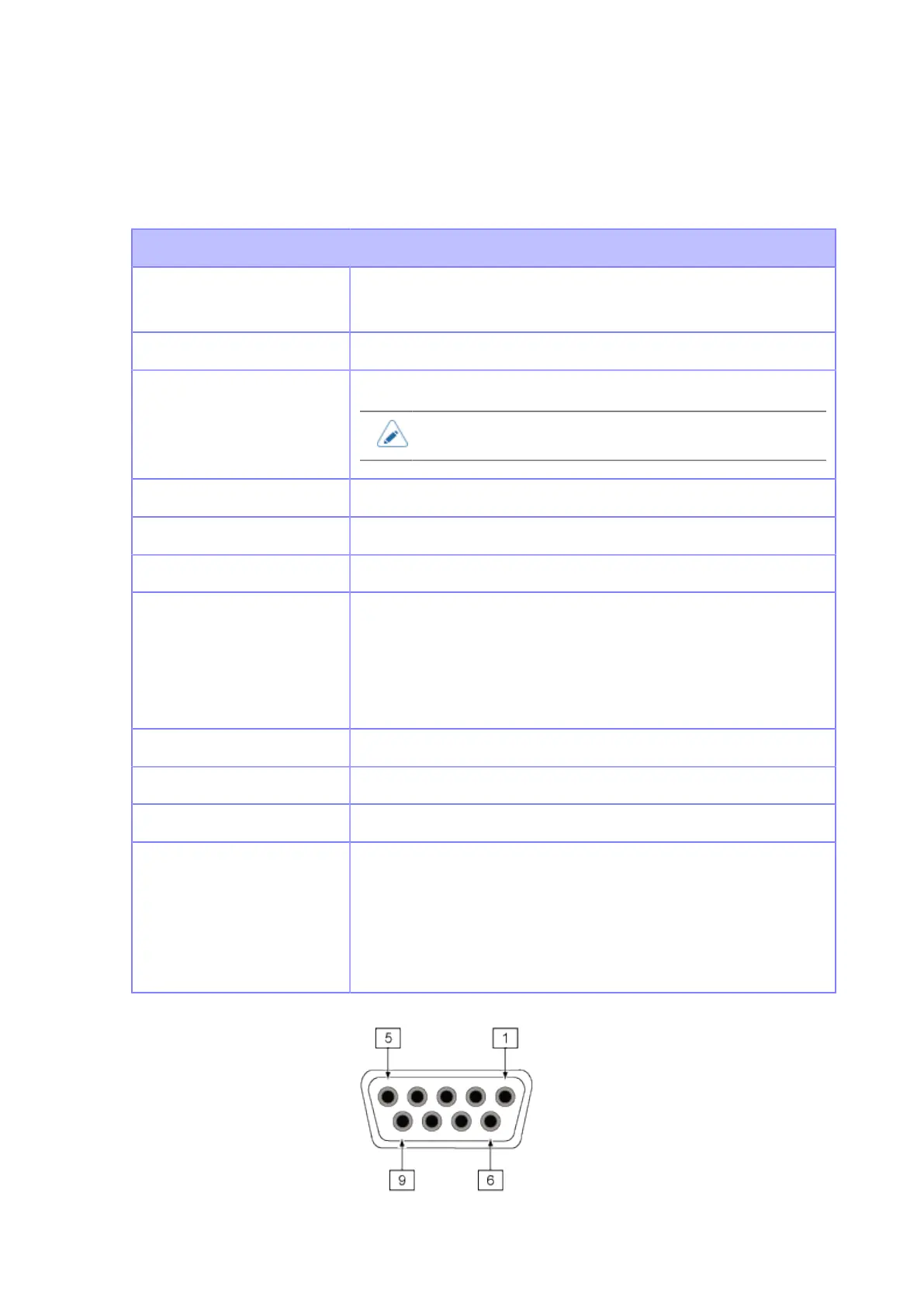

RS-232C Interface
This interface complies with the RS-232C standard.
Basic Specifications
Asynchronous ASCII Half-duplex communication
Bi-directional communication
Data Transmission Rate 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
Transmission Form Start, b1, b2, b3, b4, b5, b6, b7, b8, Stop
• "b8" will be omitted if using 7 bit oriented.
Data Length 7 or 8 bits (Selected)
Stop Bit 1 or 2 bits (Selected)
Parity Bit ODD, EVEN, NONE (Selected)
Codes Used
ASCII Character Codes
7 bits
Graphics
8 bits
Control Codes STX (02H), ETX (03H), ACK (06H), NAK (15H)
Connector DB-9 Female or equivalent
Signal Level High = +5 to +12 V, Low = -5 to -12 V
Protocol
• READY/BUSY Multi
• XON/XOFF Multi
• STATUS3
• STATUS4
• STATUS5

SATO CT4-LX Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Print Resolution	203 dpi
Max Print Width	4.09 inches (104 mm)
Media Type	Roll, Fan-fold
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Ribbon Width	0.98 inches (25 mm) to 4.09 inches (104 mm)
Ribbon Length	984 feet
Connectivity	USB, Ethernet, Bluetooth
Supported Barcode Types	PDF417, QR Code
Power Requirements	100-240 VAC, 50/60 Hz
