SATO CT4-LX User Manual

Inserting the Core Adapters
126

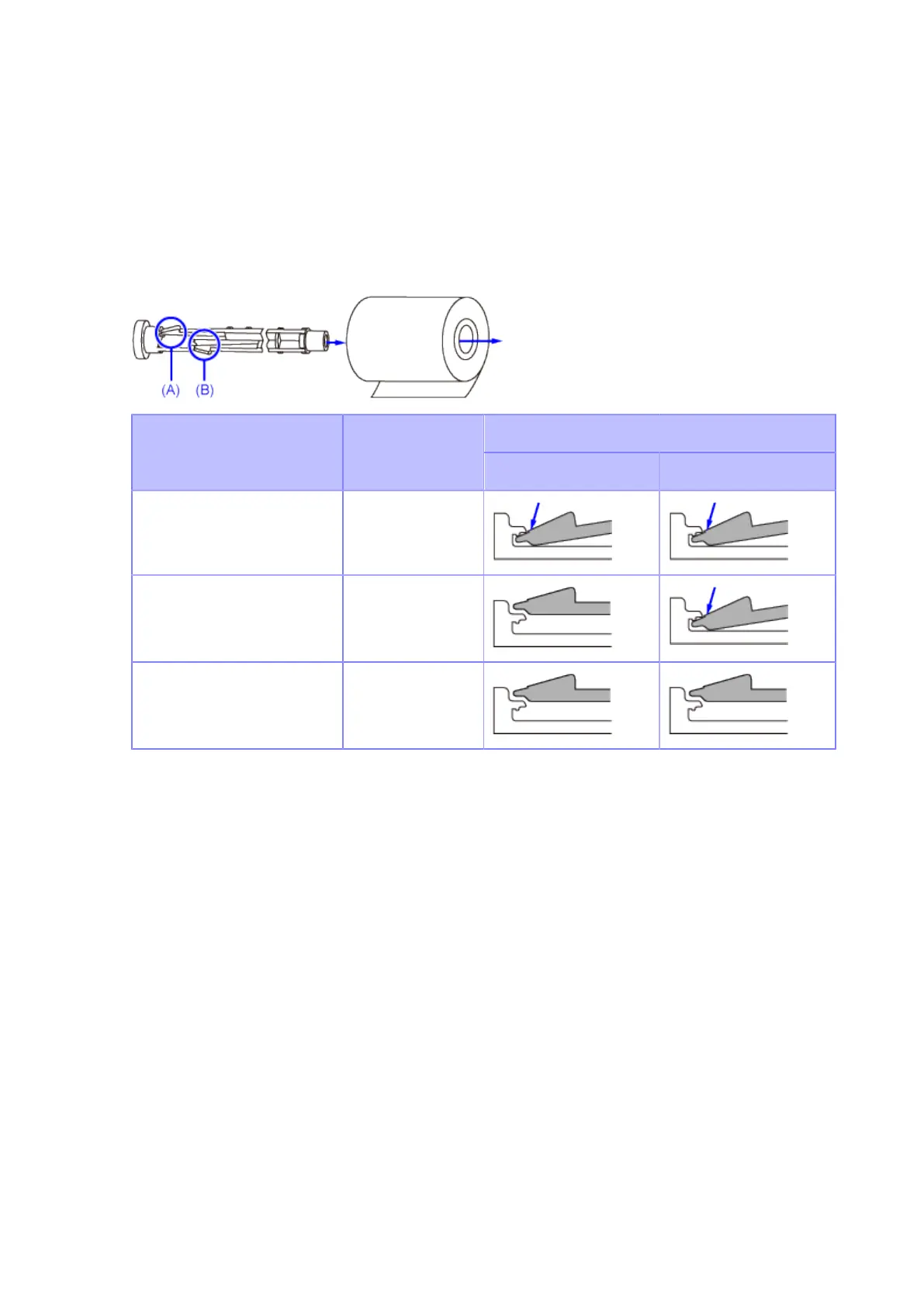

Inserting the Core Adapters
Before loading the ribbon to the product, insert one core adapter into the carbon ribbon and one into
the ribbon core.
The positions of the hooks on the core adapters need to be changed depending on the width of the
carbon ribbon.
Position of core adapter hooksWidth of carbon ribbon Ribbon core
being used
(A) (B)
92 mm (3.62")/110 mm
(4.33")/111 mm (4.37")
111 mm (4.37")
59 mm (2.32")/76 mm
(2.99")
76 mm (2.99")
45 mm (1.77") 45 mm (1.77")
1. Change the positions of the hooks on the core adapters according to the width of
the carbon ribbon.
2. Insert a core adapter into the carbon ribbon.
3. Insert a core adapter into the ribbon core.

SATO CT4-LX Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Print Resolution	203 dpi
Max Print Width	4.09 inches (104 mm)
Media Type	Roll, Fan-fold
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Ribbon Width	0.98 inches (25 mm) to 4.09 inches (104 mm)
Ribbon Length	984 feet
Connectivity	USB, Ethernet, Bluetooth
Supported Barcode Types	PDF417, QR Code
Power Requirements	100-240 VAC, 50/60 Hz
