SATO CT4-LX User Manual

Adjusting the Print Darkness
380
Adjusting the Print Quality
Adjusting the Print Darkness

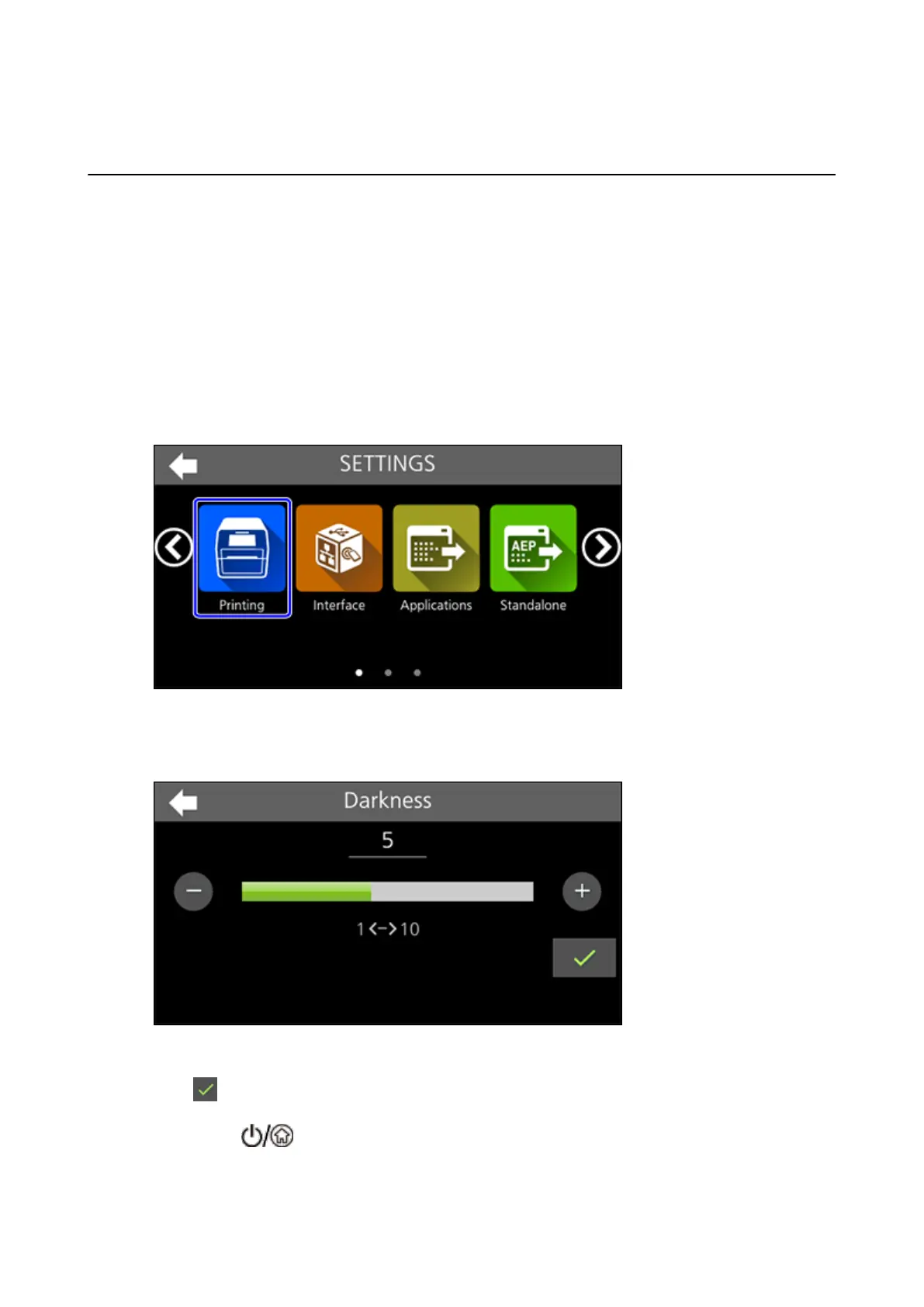

The adjustment procedure for the print darkness is as follows:
1. Tap [SETTINGS] on the Home screen or Offline screen.
2. Input the password if it is enabled.
3. Tap [Printing].
4. Tap [Darkness].
5. Change the setting value.
The setting range is from 1 to 10. 1 is the lightest and 10 is the darkest.
6.
Tap to save the setting value.
7.
Press the (Power/Home) button to show the Home screen.

SATO CT4-LX Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Print Resolution	203 dpi
Max Print Width	4.09 inches (104 mm)
Media Type	Roll, Fan-fold
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Ribbon Width	0.98 inches (25 mm) to 4.09 inches (104 mm)
Ribbon Length	984 feet
Connectivity	USB, Ethernet, Bluetooth
Supported Barcode Types	PDF417, QR Code
Power Requirements	100-240 VAC, 50/60 Hz
