387
Setting Write/Read Conditions Appropriate for RFID Tags
Using the SATO RF Analyze Function to Measure RFID Tags
Use the SATO RF Analyze function to measure an RFID tag.
This function automatically moves the product's RFID standard antenna to measure RFID tags, and
determine the conditions to consistently write and read them. The results of the measurement are
immediately applied to the product. Furthermore, by saving them as an RFID tag model, you can
easily access the settings when using the same RFID tags.
• The length from the leading edge of the tag to the inlay should be 15 mm (0.59") or
more.
• The tag length should be 42 mm (1.65") or more (including liner) to execute SATO RF
Analyze.
• Keep the setting value of the radio power level up to 24 dBm.
Setting Measurement Conditions
Before executing measurement, set the search level, writing/reading power, and name for saving as
an RFID tag model.
Set the writing/reading power according to the Inlay Configuration Guide. For details, access the
following URL:
https://www.sato-global.com/rfid/guide.html
To use inlays that are not in the Inlay Configuration Guide, use the initial values.

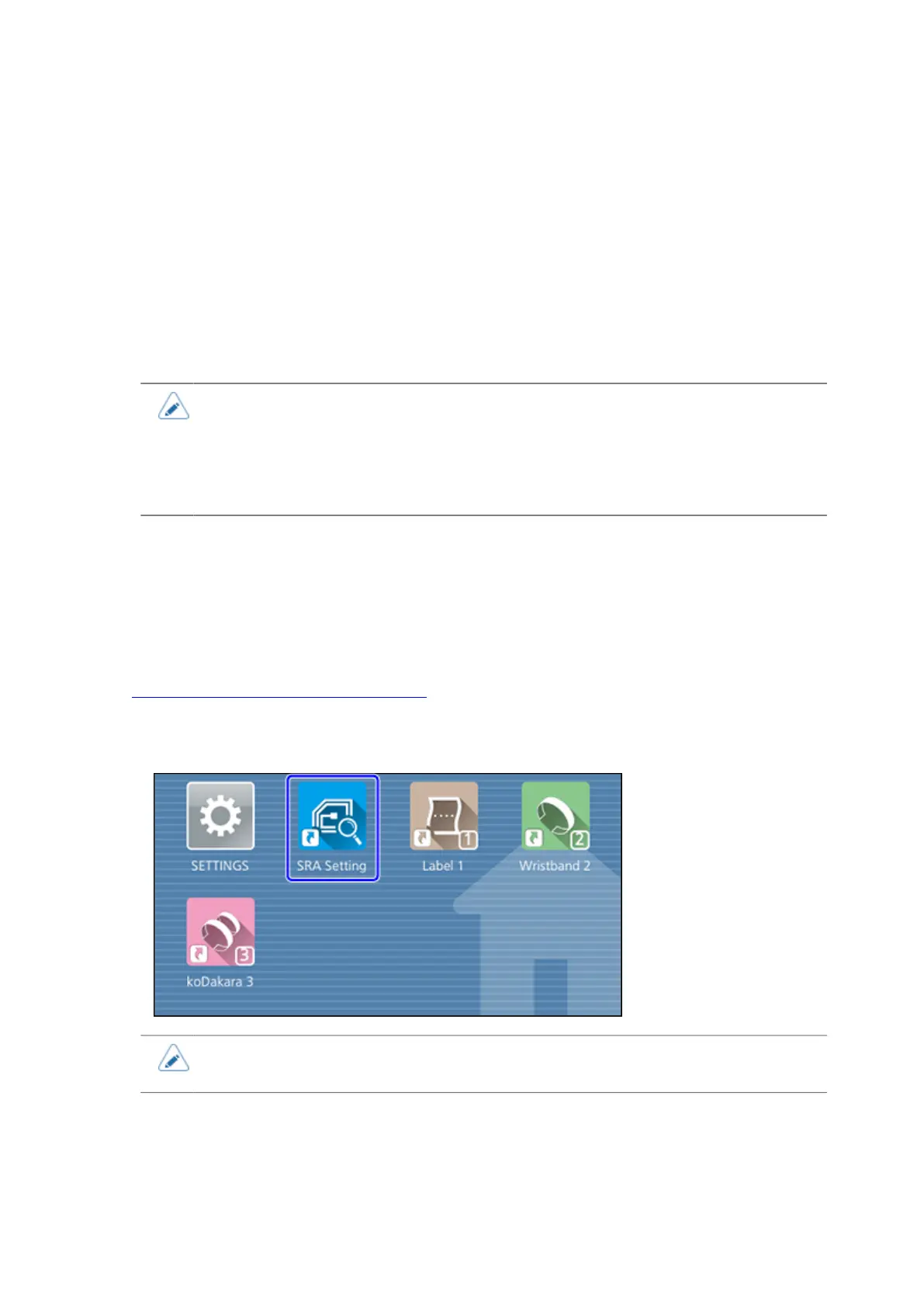

1. Tap [SRA Setting] on the Home screen.
• You can also access the SRA settings from the [Interface] > [RFID] menu in the
Settings mode.
To Next Page
