SATO CT4-LX User Manual

Operating the Guidance Video
58

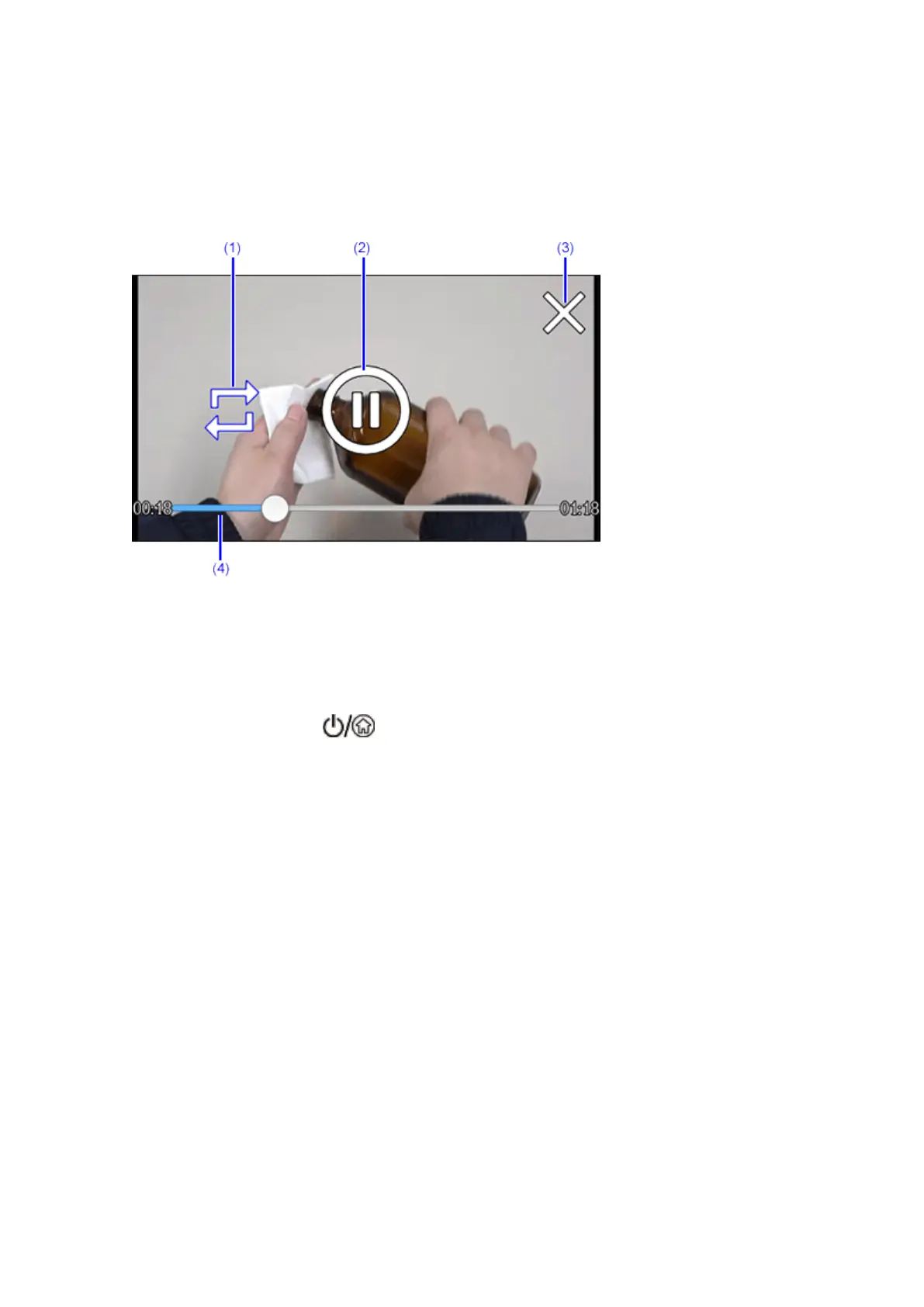

Operating the Guidance Video
Tap the screen as the video is playing to display the icons for operating the video.
(1) Tap to perform continuous playback.
When this function is enabled, the icon changes to blue.
(2) Playback or pause the video.
(3) End the video.
You can also press the (Power/Home) button to end it.
(4) Slide or tap the bar to rewind or fast forward the video. Tap the left end of the bar to play the video
from the start.

SATO CT4-LX Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Print Resolution	203 dpi
Max Print Width	4.09 inches (104 mm)
Media Type	Roll, Fan-fold
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Ribbon Width	0.98 inches (25 mm) to 4.09 inches (104 mm)
Ribbon Length	984 feet
Connectivity	USB, Ethernet, Bluetooth
Supported Barcode Types	PDF417, QR Code
Power Requirements	100-240 VAC, 50/60 Hz
