Adjusting the Position of the Label Top Sensor
378
Adjusting the Position of the Label Top Sensor
When the Label Waste Prevention function is enabled, the label top sensor, which is located at the
media discharge outlet, detects the leading edge of the media and aligns the media to the print start
position.
The print start position may be misaligned because of the media width or media type. Adjust [Label
Top Sensor] in the [Printing] > [Advanced] > [Adjustments] menu.

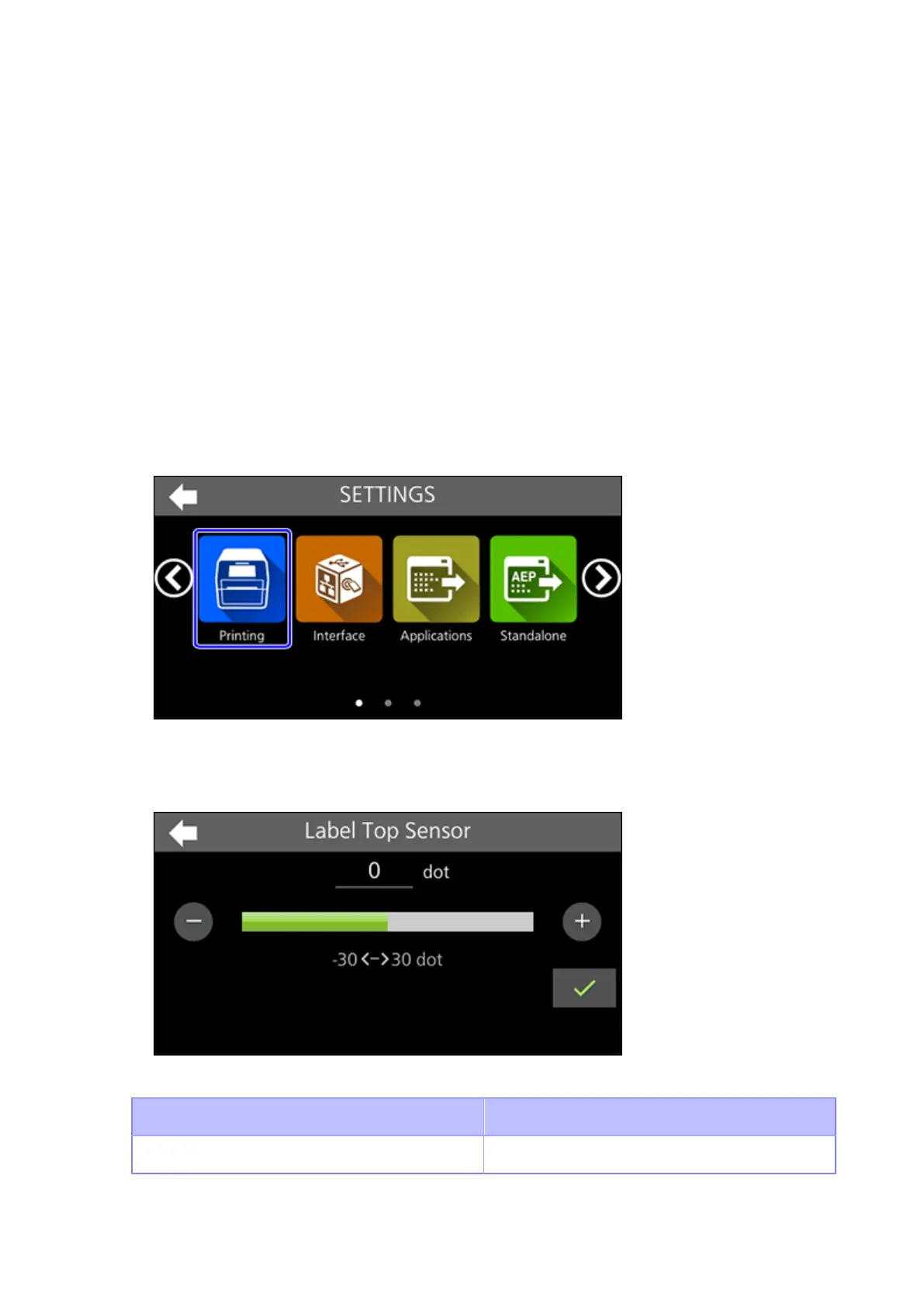

1. Tap [SETTINGS] on the Home screen or Offline screen.
2. Input the password if it is enabled.
3. Tap [Printing].
4. Tap [Advanced] > [Adjustments] > [Label Top Sensor].
5. Change the setting value.
The setting range is as follows:
Resolution Setting range
203 dpi (1 dot = 0.125 mm (0.0049")) -30 to +30 dots

SATO CT4-LX Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Print Resolution	203 dpi
Max Print Width	4.09 inches (104 mm)
Media Type	Roll, Fan-fold
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Ribbon Width	0.98 inches (25 mm) to 4.09 inches (104 mm)
Ribbon Length	984 feet
Connectivity	USB, Ethernet, Bluetooth
Supported Barcode Types	PDF417, QR Code
Power Requirements	100-240 VAC, 50/60 Hz
