SATO CT4-LX User Manual

377
(4) Liner

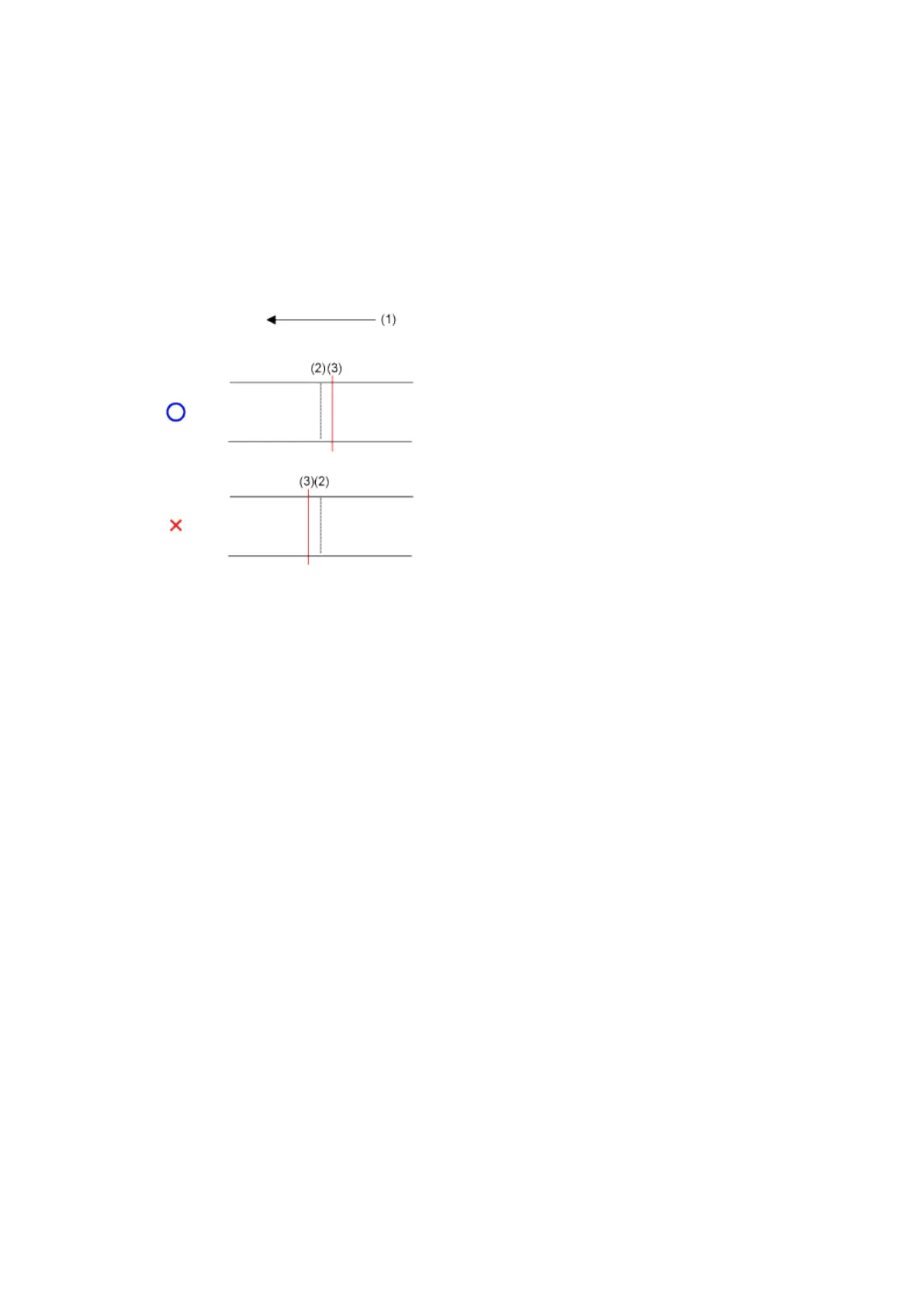

Cut Position When Using the Media with Perforated Line in Tear-Off/Cutter Modes
For media with perforated lines, adjust the cut position so as not to cut the media on the perforated
line or before the perforated line.
When the media is cut on the area not to be cut, it could cause a paper jam or damage.
(1) Feed direction
(2) Perforated line
(3) Cut position

SATO CT4-LX Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Print Resolution	203 dpi
Max Print Width	4.09 inches (104 mm)
Media Type	Roll, Fan-fold
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Ribbon Width	0.98 inches (25 mm) to 4.09 inches (104 mm)
Ribbon Length	984 feet
Connectivity	USB, Ethernet, Bluetooth
Supported Barcode Types	PDF417, QR Code
Power Requirements	100-240 VAC, 50/60 Hz
