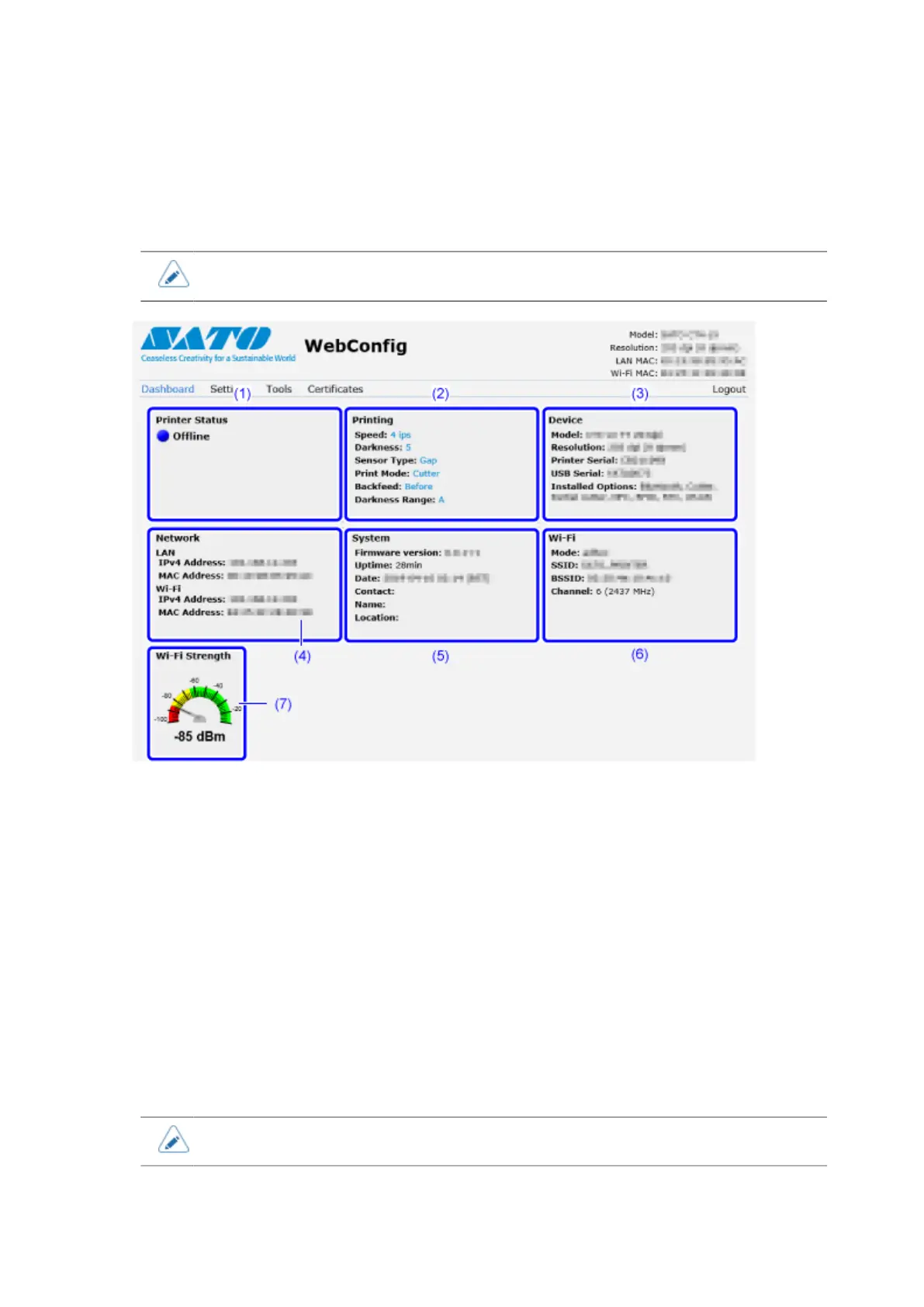

Dashboard
[Dashboard] is the default page for the web configuration page. Each section shows specific
information or the current status of the product.
• You can view the [Dashboard] page without logging in.
(1) [Printer Status]
Shows the current state (online, offline, error) and current status icons.
(2) [Printing]
Shows the print speed, darkness, sensor, print mode and backfeed setting.
(3) [Device]
Shows the model, current resolution and options that are installed.
(4) [Network]
Shows the current IP address and MAC address of the active interface.
(5) [System]
Shows the current firmware version, uptime, SNMP contact, name and location.
(6) [Wi-Fi]
Shows the current Wi-Fi setting.
• This information is shown only if Wi-Fi is available and active.

SATO CT4-LX Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Print Resolution	203 dpi
Max Print Width	4.09 inches (104 mm)
Media Type	Roll, Fan-fold
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Ribbon Width	0.98 inches (25 mm) to 4.09 inches (104 mm)
Ribbon Length	984 feet
Connectivity	USB, Ethernet, Bluetooth
Supported Barcode Types	PDF417, QR Code
Power Requirements	100-240 VAC, 50/60 Hz
