Side View
74
Side View
Make sure that there is sufficient space around the product so that the top cover can be fully opened
when operating or cleaning the product, or replacing consumables.
Make sure that there is sufficient space on the rear side of the product so that no stress is applied to
the power cord or cables connected to the product.

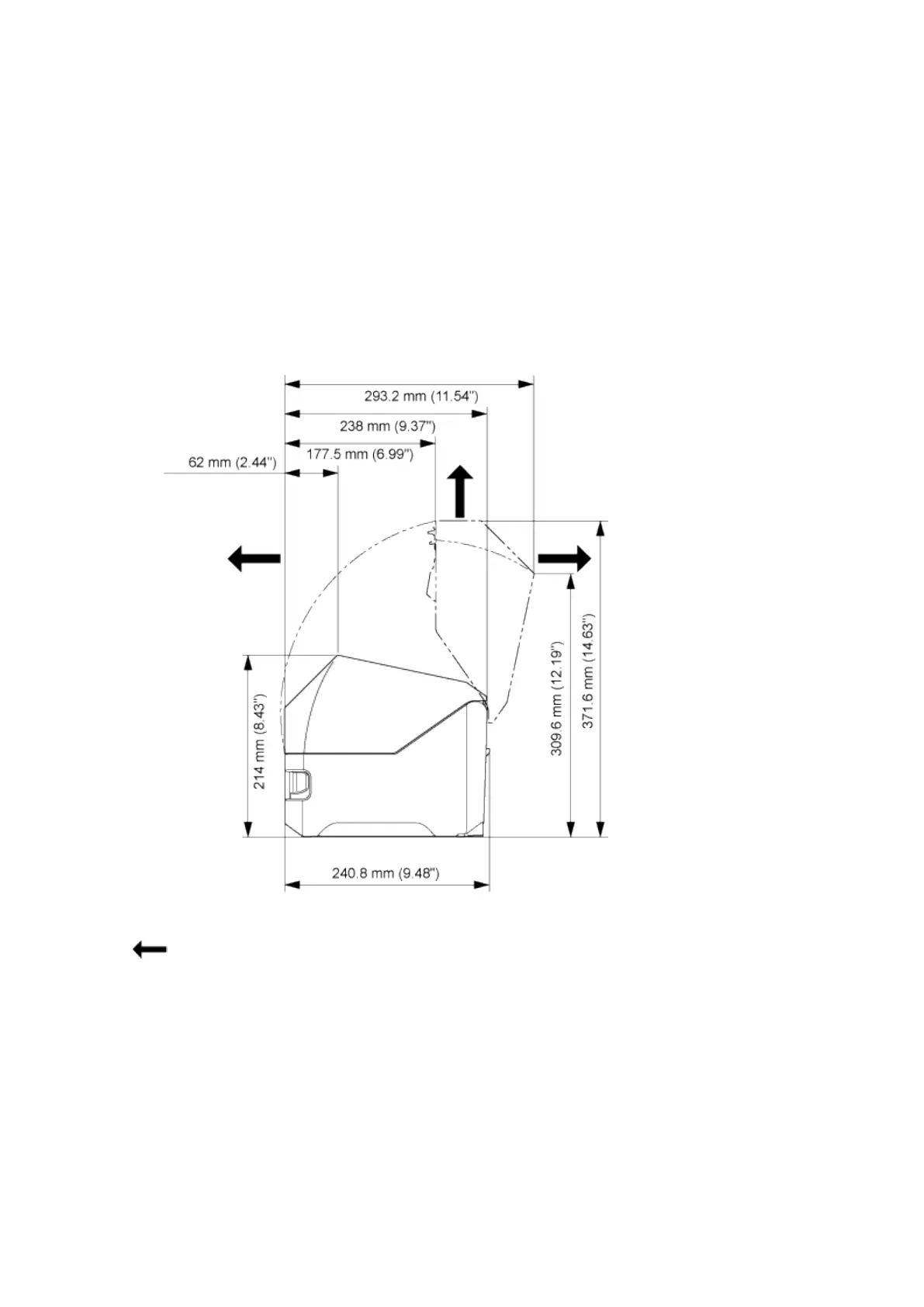

The dimensions of the side of the product are as follows:
The figure below shows the standard model.
: Leave open 150 mm (5.91") or more.
