SATO CT4-LX User Manual

Loading the Fan-fold Media
122

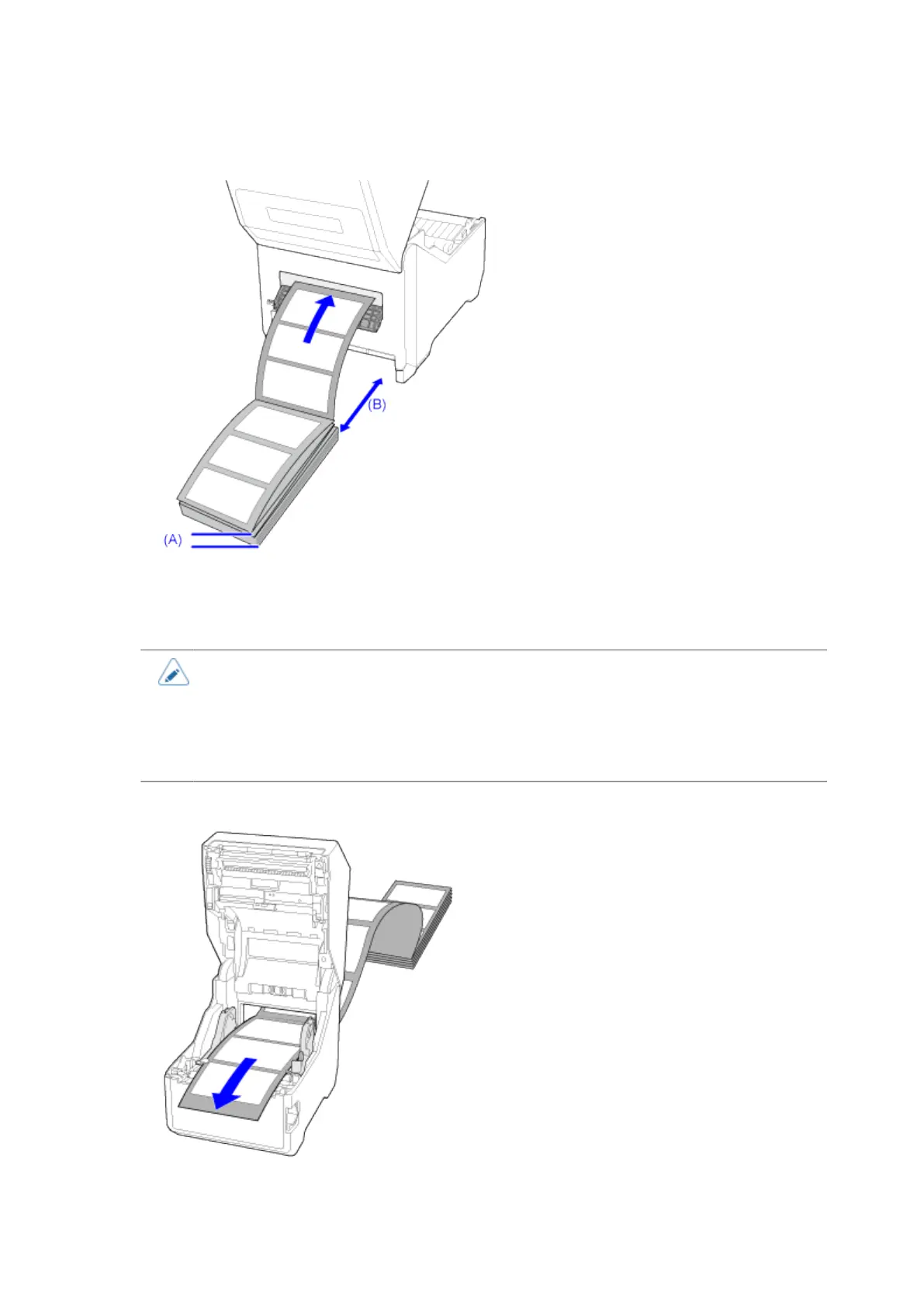

3. Insert the fan-fold media from the media loading port.
(A) Media height (from desk): within 100 mm (3.94")
(B) Distance between the back side of the product and the media: The size of 1 label, or more/the
size of 2 RFID tags, or more
• When loading the media, make sure that the label side faces up.
• The height may be limited depending on where media is placed.
• When drawing the media from under the desk, not from the position on the same desk
which the rear side of the product is placed, place the media so as not to obstruct the
printing operation.
4. Pull out the fan-fold media inserted from the back of the product.

SATO CT4-LX Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Print Resolution	203 dpi
Max Print Width	4.09 inches (104 mm)
Media Type	Roll, Fan-fold
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Ribbon Width	0.98 inches (25 mm) to 4.09 inches (104 mm)
Ribbon Length	984 feet
Connectivity	USB, Ethernet, Bluetooth
Supported Barcode Types	PDF417, QR Code
Power Requirements	100-240 VAC, 50/60 Hz
