SATO CT4-LX User Manual

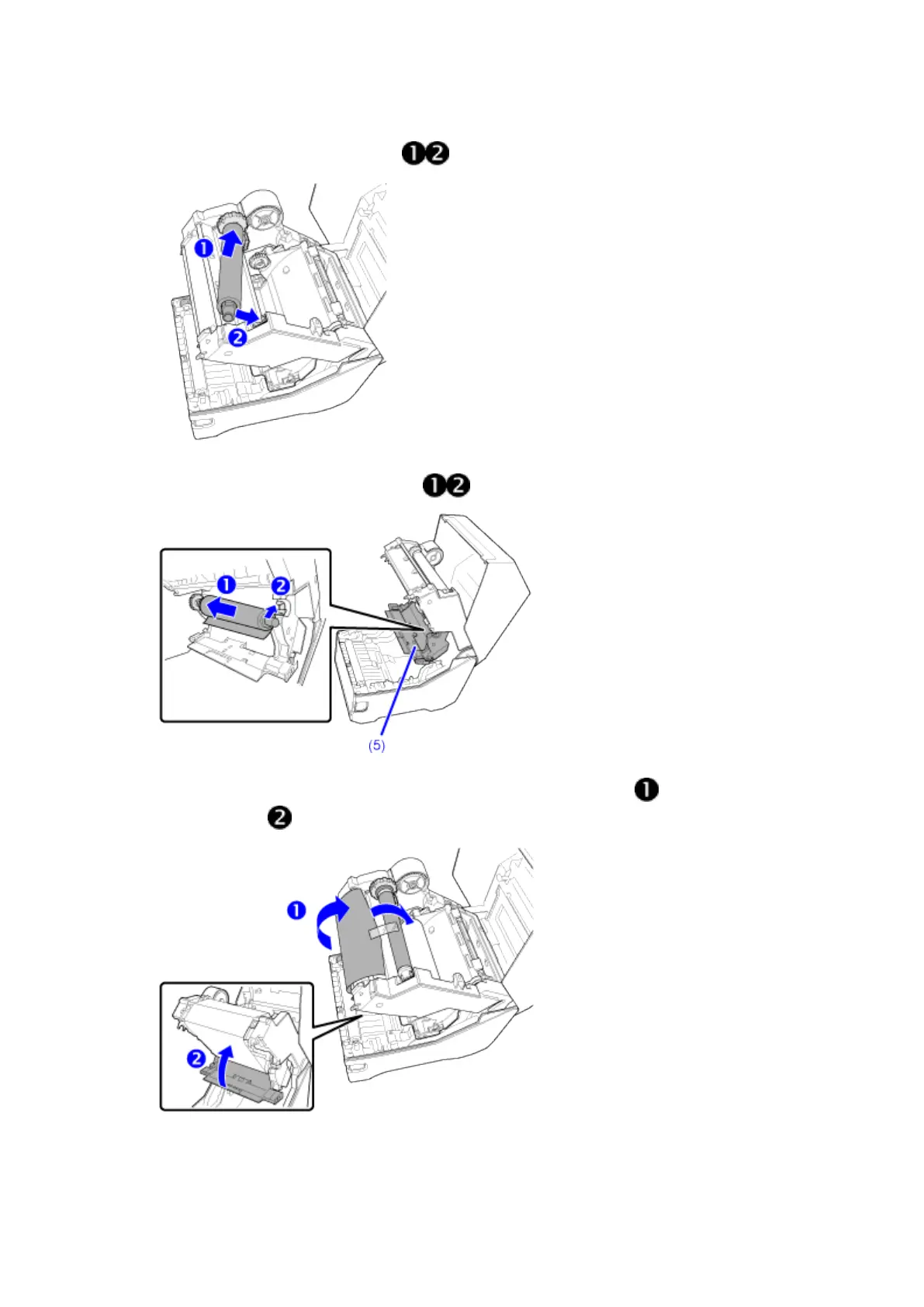

Loading the Ribbon
128
3.
Load the ribbon core in order into the ribbon unit.
4.
Load the carbon ribbon in order into the ribbon cover (5).
5.
Pull out some carbon ribbon and tape it to the ribbon core , and then close the
ribbon cover .

SATO CT4-LX Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Print Resolution	203 dpi
Max Print Width	4.09 inches (104 mm)
Media Type	Roll, Fan-fold
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Ribbon Width	0.98 inches (25 mm) to 4.09 inches (104 mm)
Ribbon Length	984 feet
Connectivity	USB, Ethernet, Bluetooth
Supported Barcode Types	PDF417, QR Code
Power Requirements	100-240 VAC, 50/60 Hz
