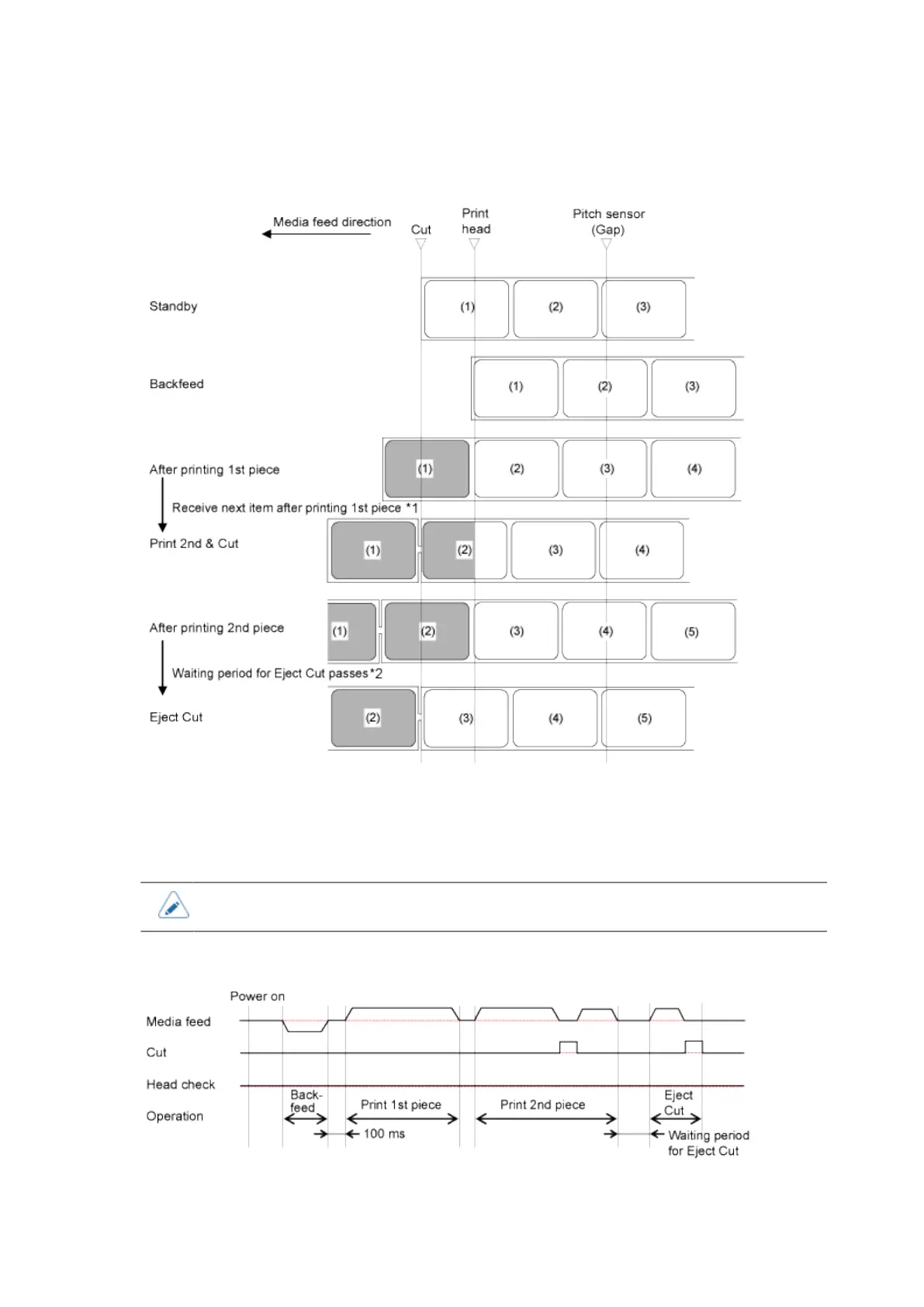

Partial Cutter Mode and Backfeed Before Printing (Head Check Disabled)
Operation
*1 After printing, if the next data is received, printing will be done and the media will be cut on the cut
position.
*2 After printing, if the next data is not received and the waiting period for Eject Cut has passed, Eject
Cut will be performed.
• The figure above shows the reference position when the Gap sensor is used.
Timing Chart

SATO CT4-LX Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Print Resolution	203 dpi
Max Print Width	4.09 inches (104 mm)
Media Type	Roll, Fan-fold
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Ribbon Width	0.98 inches (25 mm) to 4.09 inches (104 mm)
Ribbon Length	984 feet
Connectivity	USB, Ethernet, Bluetooth
Supported Barcode Types	PDF417, QR Code
Power Requirements	100-240 VAC, 50/60 Hz
