SATO CT4-LX User Manual

539
X20 Font
The X20 font is a bitmap font with a basic size of 9 dots H x 5 dots W.
This supports the fixed pitch only.

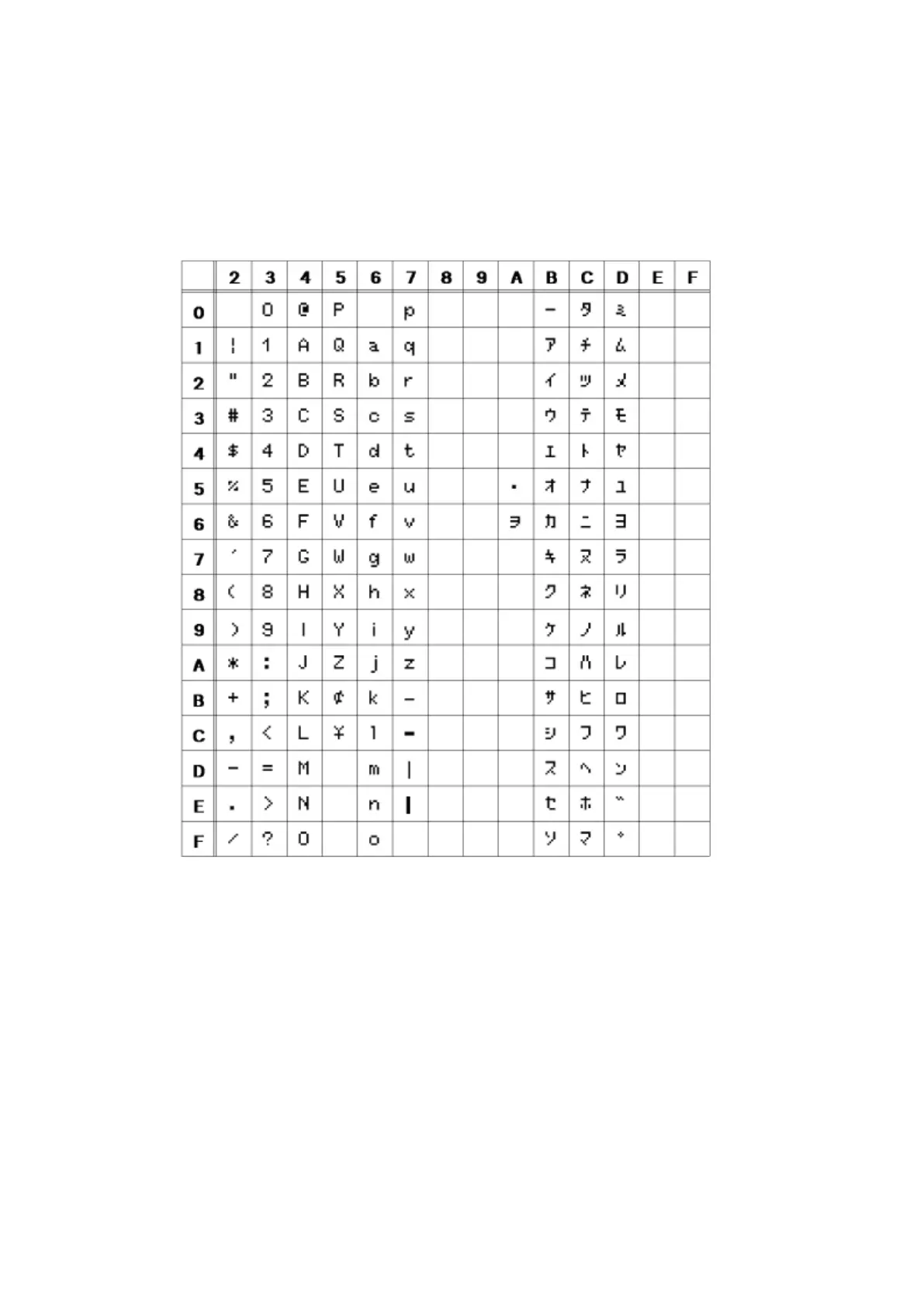

A font sample is shown in the figure below.

SATO CT4-LX Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Print Resolution	203 dpi
Max Print Width	4.09 inches (104 mm)
Media Type	Roll, Fan-fold
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Ribbon Width	0.98 inches (25 mm) to 4.09 inches (104 mm)
Ribbon Length	984 feet
Connectivity	USB, Ethernet, Bluetooth
Supported Barcode Types	PDF417, QR Code
Power Requirements	100-240 VAC, 50/60 Hz
