SATO CT4-LX User Manual

559

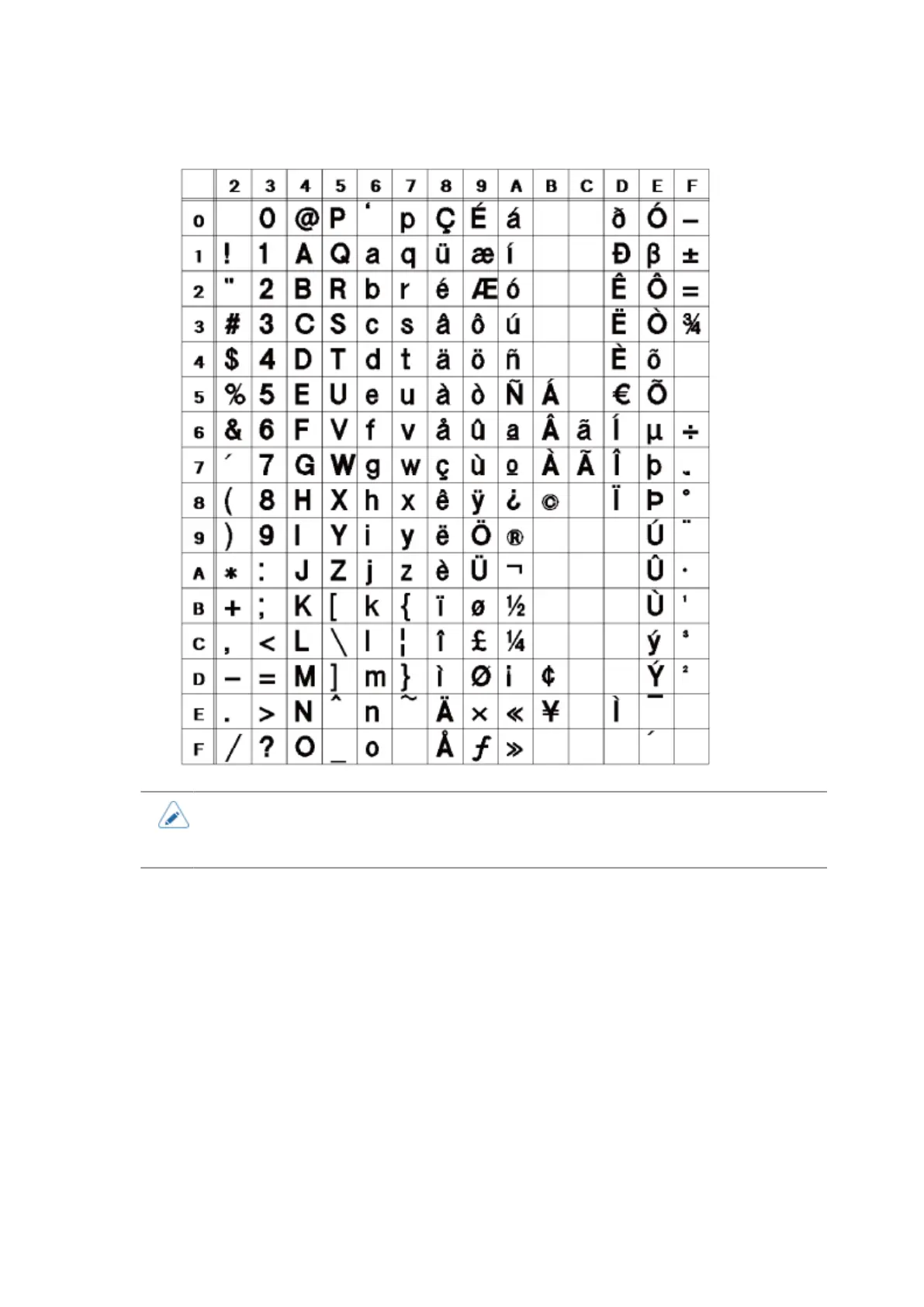

The figure below is a font sample with the standard font.
• The font size can be specified from 1 to 999 dots, but if the font size is too small for the
font shape, it cannot be recognized as a font. Please be careful. Also, if the specified
font size is too small, it may collapse, depending on the font.

SATO CT4-LX Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Print Resolution	203 dpi
Max Print Width	4.09 inches (104 mm)
Media Type	Roll, Fan-fold
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Ribbon Width	0.98 inches (25 mm) to 4.09 inches (104 mm)
Ribbon Length	984 feet
Connectivity	USB, Ethernet, Bluetooth
Supported Barcode Types	PDF417, QR Code
Power Requirements	100-240 VAC, 50/60 Hz
