Shimadzu GC-2014 Instruction Manual

9 Monitoring the GC
9.2
9.
106
GC-2014
9.2Monitoring the Temperature with [Temp Mon]
9.2.1 Screen description

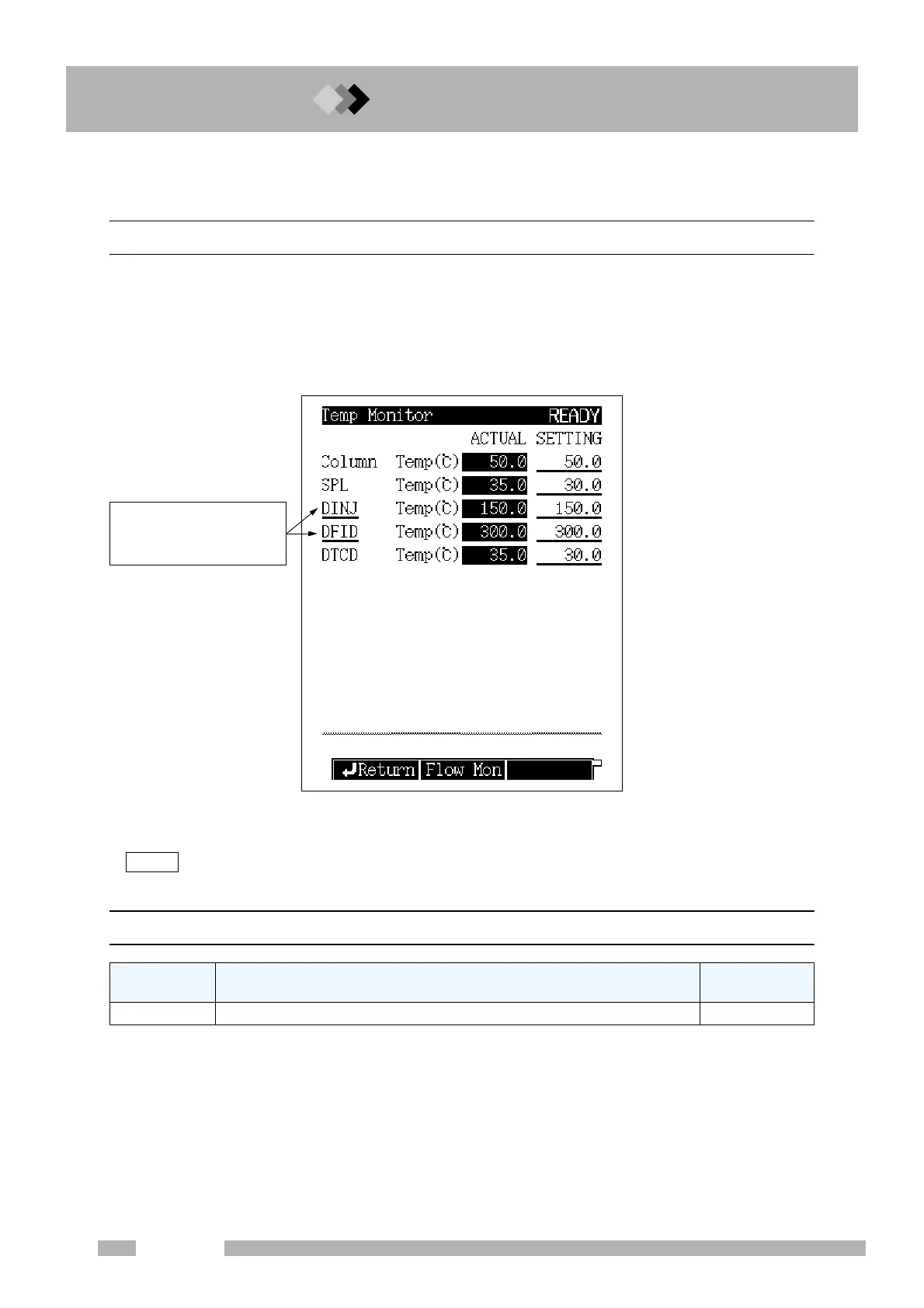

Press [Temp Mon] (PF menu) from the [MONIT] key main screen to display the Temp Moni-
tor screen shown in Fig. 9.2.1.
Monitor the temperature of all installed column ovens, injection ports and detectors from this
screen.
Heated zones without installed components are not displayed on the screen.
9.2.2 PF menu
Fig. 9.2.1 Temperature monitor
PF menu Description
Reference
section
Flow Mon Monitor pressure and flow rate for the injection ports and detectors. 9.3
NOTE
The components that are
included in the current ana-
lytical line are underlined.

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
