Shimadzu GC-2014 Instruction Manual

29
2 Before Use
2.6
2.
GC-2014

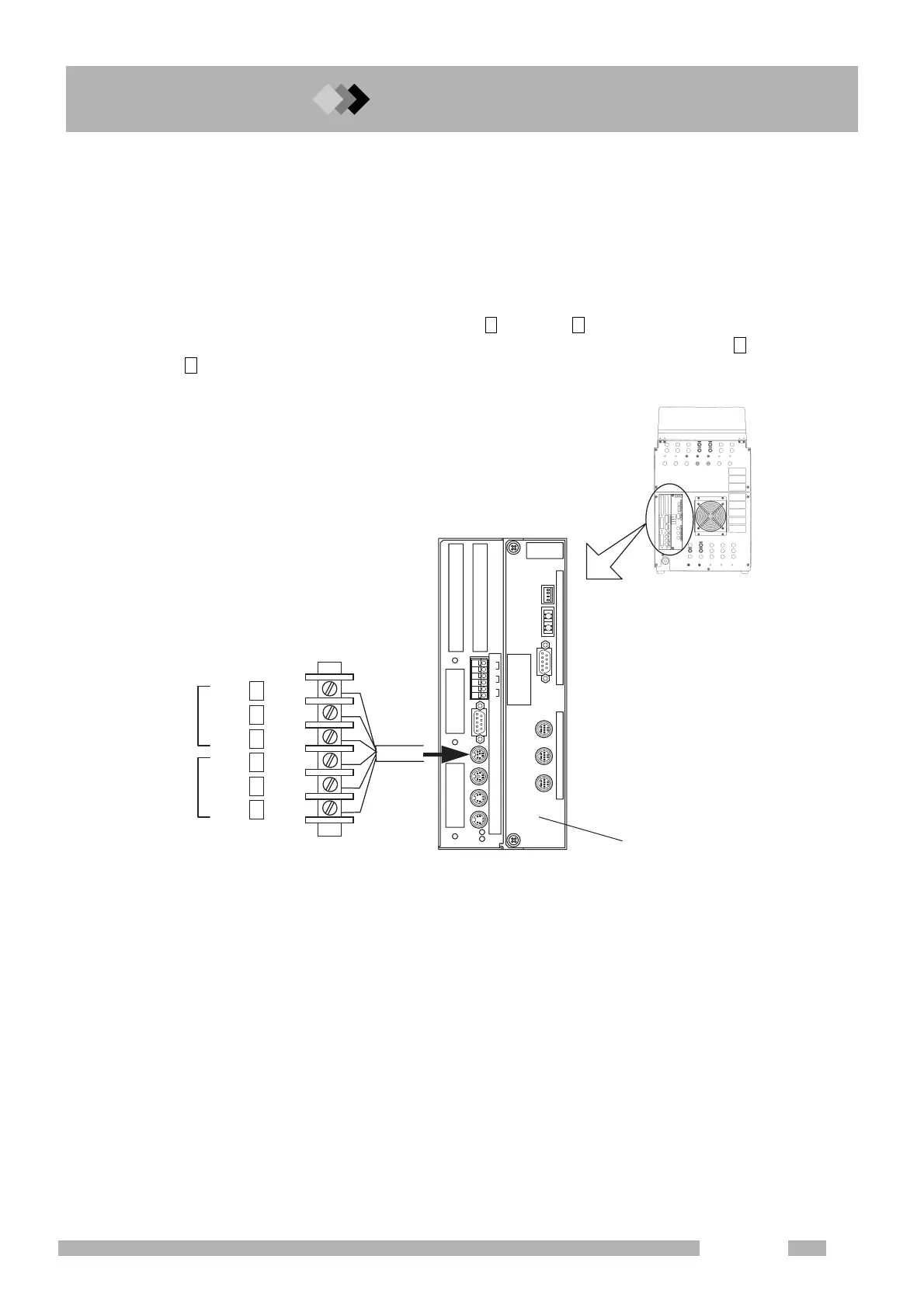

2.6Connecting the Relay Terminals
By using the optional relay cable (P/N221-48568-91), relay that operates according to event
commands can be used.
For detailed information about setting events, refer to “16.3 Time Program” or “16.5 Direct
Operation”.
For example, if the cable is connected to COM and NO found in Fig. 2.6.1, they are
connected by EVENT91 and disconnected by EVENT-91. If it is connected to COM and
NC, they will be connected by EVENT-91 and disconnected by EVENT91.
1 3
1
2
ANALOG OUT 2
ANALOG OUT 1
AOC
INJECIOR1 INJECIOR2 SAMPLER
EVENT OPTION
1
2
3
4
5
6
RS
-
232C
RS
-
232C OP1 LINKSTART
OUT/READY IN
START IN
READY OUT
AOC POWER SUPPLY
START OUT
Back of the GC
AOC built-in power source
㧝
㧞
㧟
㧠
㧡
㧢
COM
NC
NO
COM
NC
NO
EVENT91
EVENT92
(Red)
(White)
(Black)
(Yellow)
(Blue)
(Green)
Fig. 2.6.1 Connecting a relay cable

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
