Shimadzu GC-2014 Instruction Manual

25
2 Before Use
2.4
2.
GC-2014
2.4Connecting a RS-232C Cable to the
Chromatopac C-R8A
Connecting the GC-2014 and Chromatopac C-R8A with a RS-232C cable allows for various
functions such as printing out parameters of the GC.
For detailed information about C-R8A, refer to its instruction manual.
■ Connecting RS-232C cable

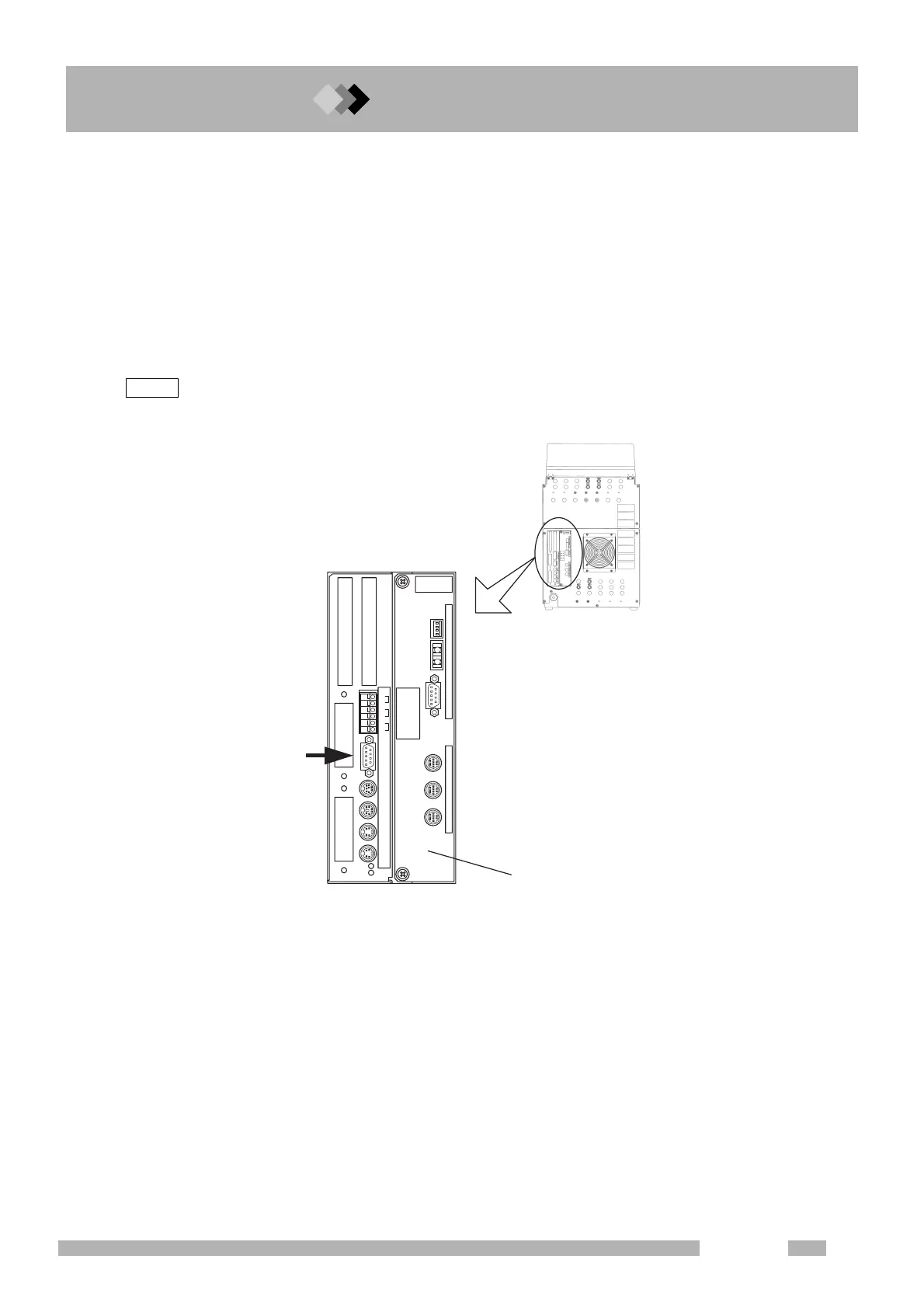

Connect an optional RS-232C cable to the connector on the back of the GC. (Fig. 2.4.1)
AOC built-in power source has the same connector. Connect the cables correctly.
NOTE
ANALOG OUT 2
ANALOG OUT 1
AOC
INJECIOR1 INJECIOR2 SAMPLER
EVENT OPTION
1
2
3
4
5
6
RS
-
232C
RS
-
232C OP1 LINKSTART
OUT/READY IN
START IN
READY OUT
AOC POWER SUPPLY
START OUT
Back of the GC
AOC built-in power source
RS-232C
Fig. 2.4.1 Connection of RS-232C cable

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
