9 Monitoring the GC
9.3
9.
GC-2014
9.3Monitoring the Flow Rate with [Flow Mon]
9.3.1 Screen description
Press [Flow Mon] (PF menu) from the [MONIT] key main screen to display the Flow Monitor
screen shown in Fig. 9.3.1.
Monitor the flow rate and the pressure of the injection ports, and the detector gas flow rates
of the detectors.
Flow controllers that have hot been installed are not displayed on the screen.
9.3.2 PF menu

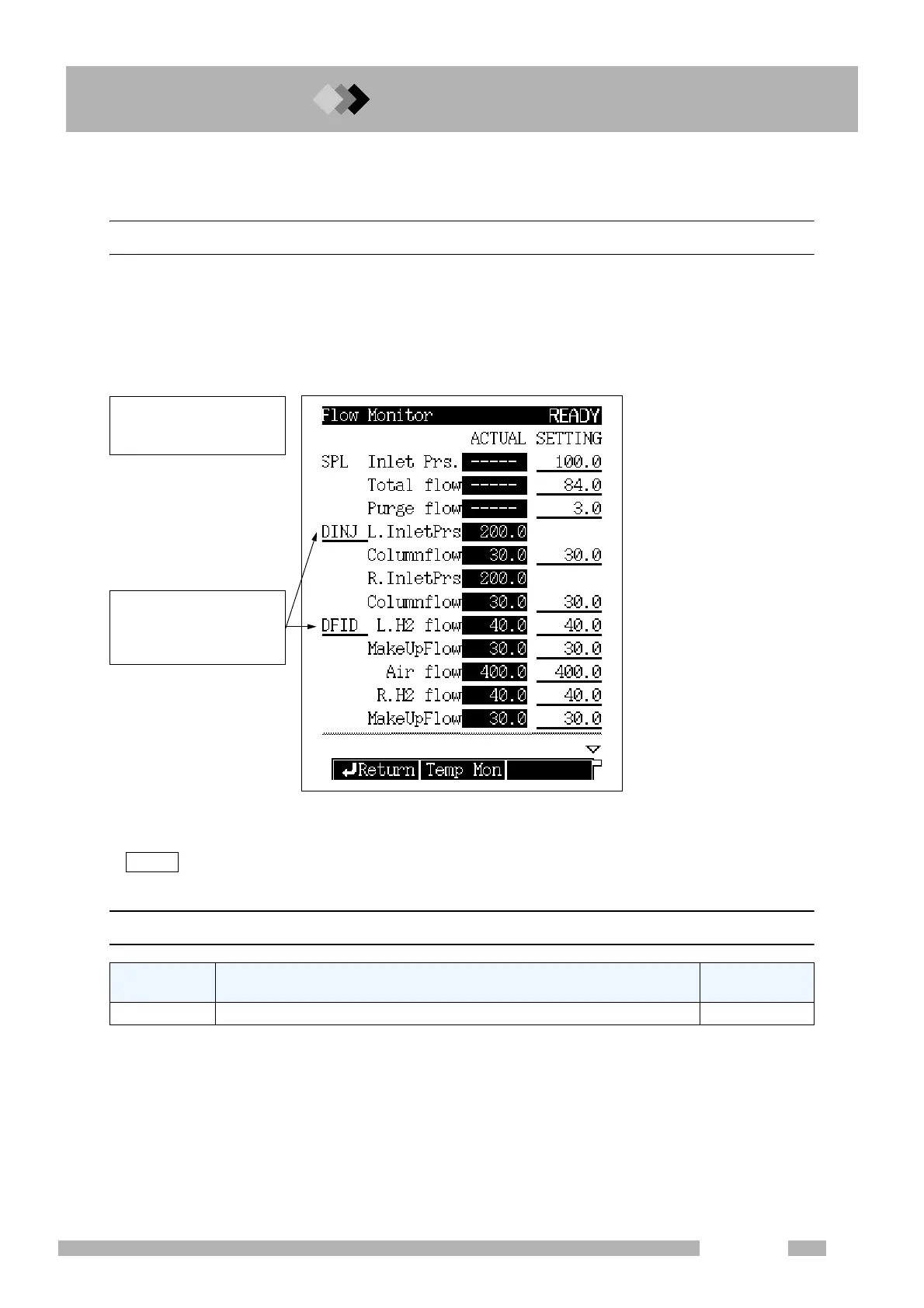

Fig. 9.3.1 Flow rate monitor
PF menu Description
Reference
section
Temp Mon Monitor temperature of the column oven, injection ports and detectors. 9.2
NOTE
The name of injection port
and detectors constructing
the current line are under
lined.
Displayed items depend on
the type of injection ports,
detectors and flow controllers.

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
