Shimadzu GC-2014 Instruction Manual

31
3.1
3.3.
GC-2014
3 Installing Packed Columns and Setting Analytical Flow Lines
3.1Installation Location for Packed Columns
Injection ports and detectors for packed columns can be installed in positions described in
Table 3.1.1 and Fig. 3.1.1.
Table 3.1.1 Installation location for injection ports/detectors for packed columns
Installation location numbers indicate the positions of column connecting joints.
Name Possible installation location
Injection ports
Dual INJ 1-2, 2-3, 3-4
Single INJ 1, 4
Detectors
Dual FID 6-7
TCD 9-10
Single DET 5, 6, 7, 8

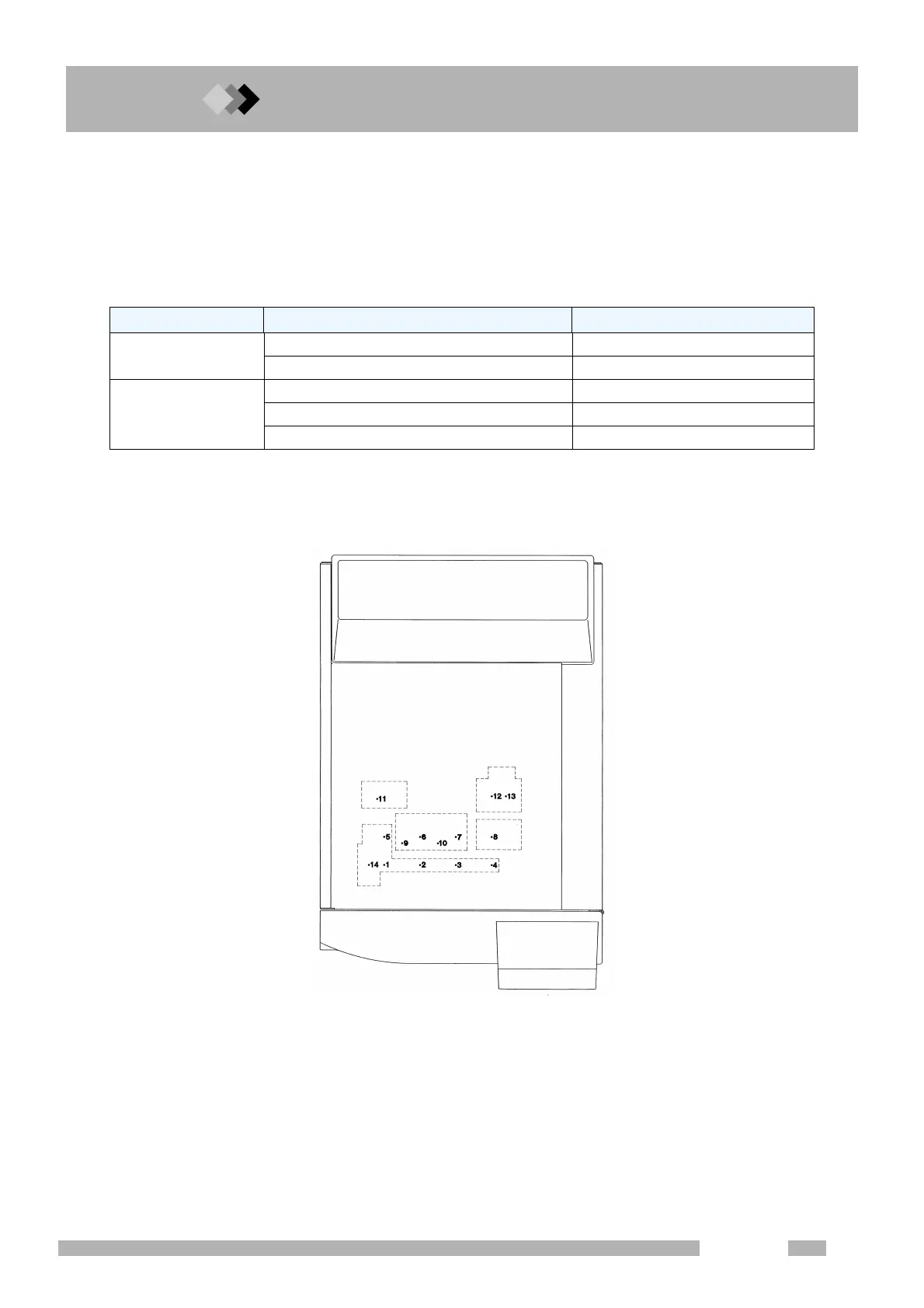

Fig. 3.1.1 Fig. 3.1.1 Installation location for injection ports/detectors for packed
columns (layout viewed from the top of the unit)

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
