8.4Changing Items Displayed with [Customiz]
8.4.1 Screen description
Select [Customiz] (PF menu) from the [SET] key main screen to display the Display Custom-
ization screen shown in Fig. 8.4.1.
On this screen, set the items which will be displayed on the [SET] key main screen. Set an
item to “On” to display it on the main screen. Set the item to “Off” to wide its display.
Settings are the same for all lines. However, for the dual AFC, only column inlet pressure,
column flow rate, and control mode are displayed. For the AFC, when the sampling time is
set to “On,” the sampling time is only displayed on the SPLITLESS injection mode.
Move the cursor using the [ △ ] and [ ▽ ] keys to select an item to be changed; select “On”
or “Off” using the [ ] and [ ] keys, then press the [ENTER] key to validate the selection.
The default it setting displays the column inlet pressures, column flow rate, split ratio,
sampling time and the split mode.

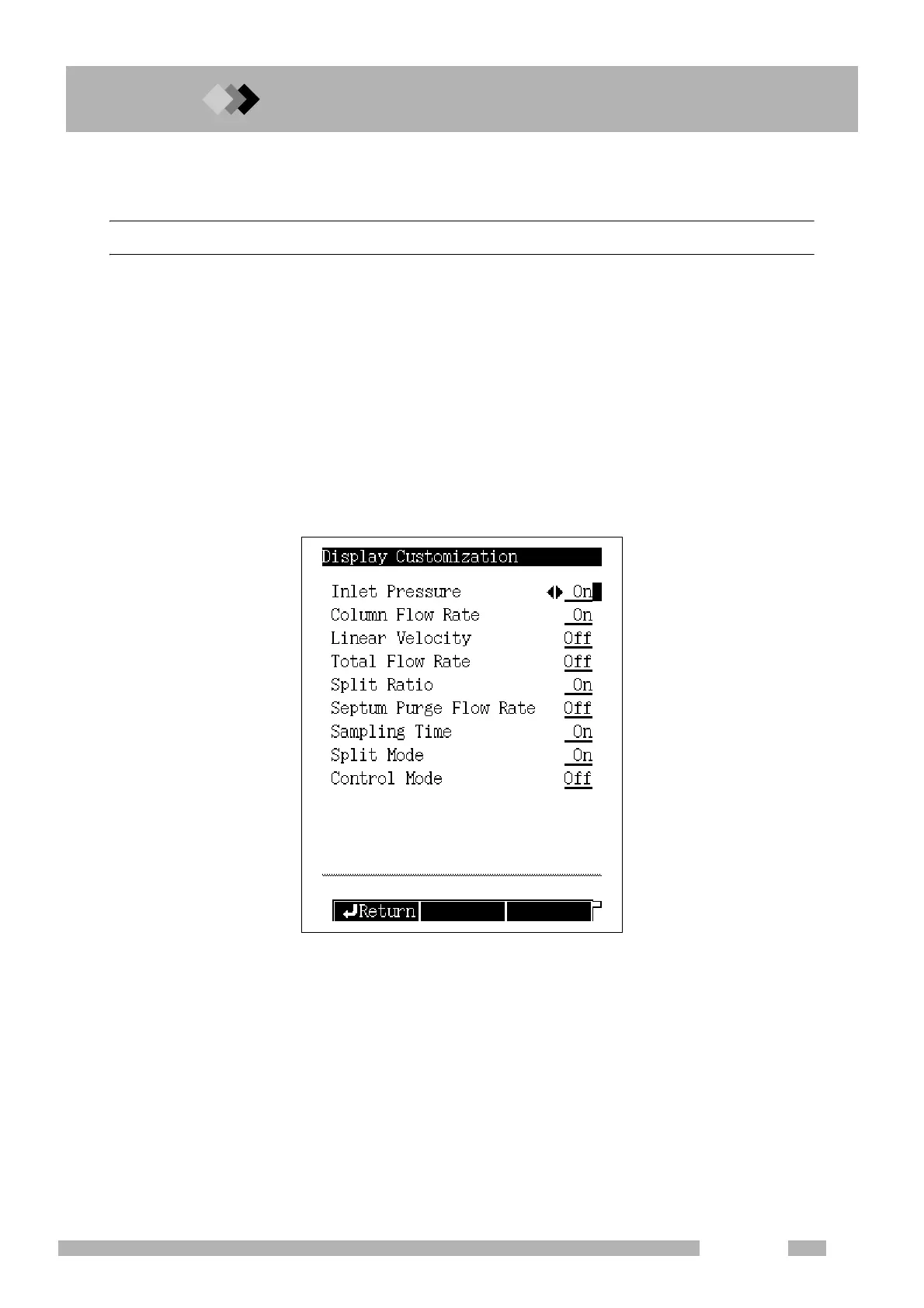

Fig. 8.4.1 Customizing the [Set] key main screen
△
△

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
