Shimadzu GC-2014 Instruction Manual

4 Installing Capillary Columns and Setting Analytical Flow Lines
4.3
4.
52
GC-2014
4.3Capillary Analysis Using the Dual FID
(When a makeup gas flow controller is used)
To perform capillary analysis using a unit with the dual FID, makeup gas needs to be
supplied to the FID that a column is connected to.
In order to supply makeup gas, the optional makeup gas flow controller (P/N 221-70877-91:
1 flow path, 221-70877-92: 2 flow paths) are used.
Prior to installing a column, install the detector adapter (P/N 221-33193-91) to the detector's
joint.
Although an adapter and column are connected to the right (R) side of the dual FID in the
figure below, they can be connected to either side (L/R).

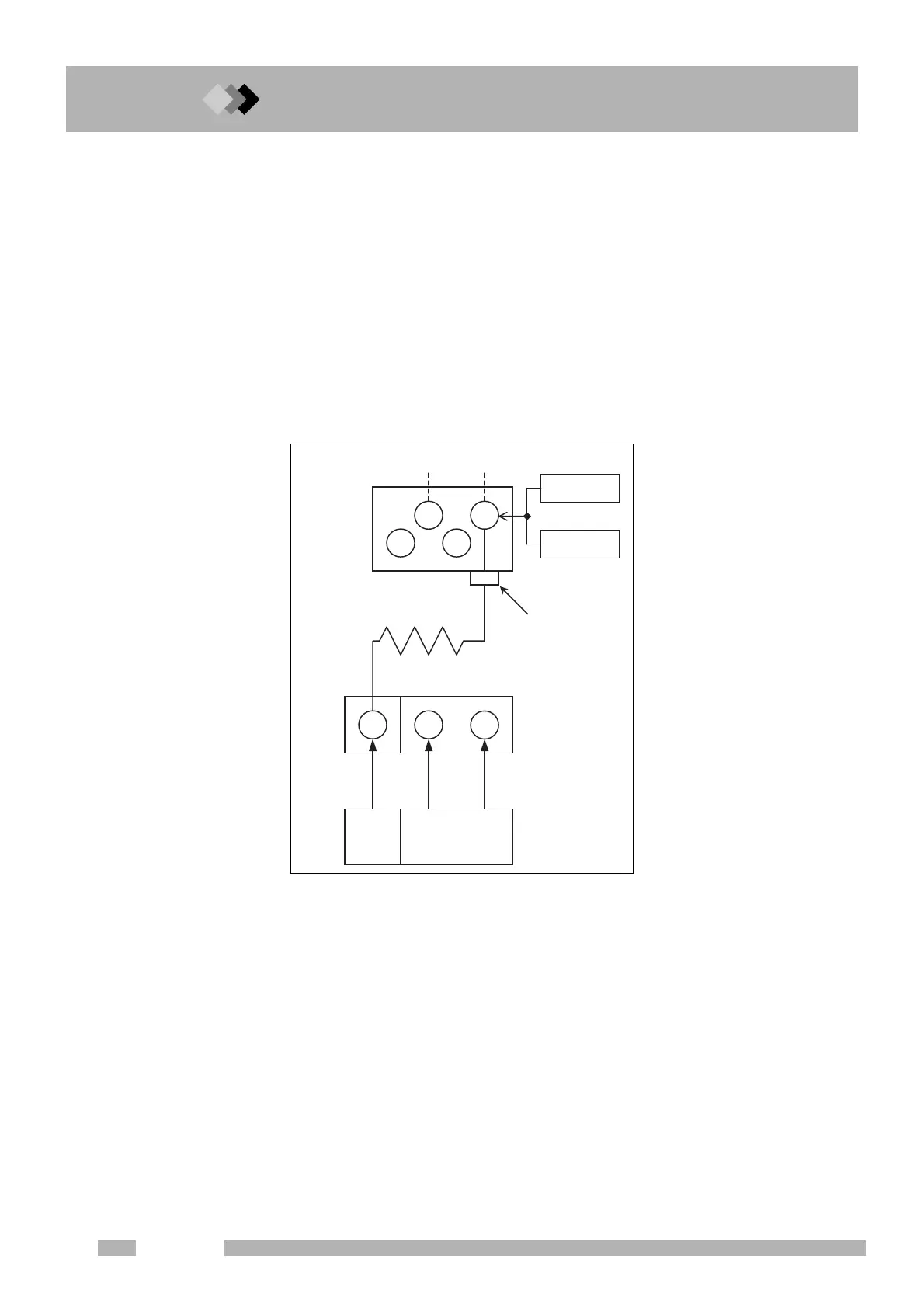

Fig. 4.3.1 Dual FID (flow controller)
Column
Dual FID
L
(L) (R)
Dual INJ
R
L R
Dual AFC
SPL
AFC
Detector
adapter
Hydrogen
Makeup gas
Flow controller

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
