Shimadzu GC-2014 Instruction Manual

16 Special Functions
16.6 GC Configuration
237
GC-2014
16.6.4 Setting the maximum temperature limits
16.6.4.1 Screen description
Select “6. GC CONFIGURATION” from the [FUNC] key screen, and then select “2. MAX
TEMPERATURE” to display the Max. Temperature screen shown in Fig. 16.6.3.
Set the maximum temperature limits of 8 heated zones.
16.6.4.2 Parameter list
COLUMN
Range: 0.0−420.0 °C, Default: 400.0 °C
In order to protect the column, do not allow the maximum oven temperature to exceed
the maximum column temperature.
INJ1/DET1/DET2
Range: 10.0−420.0 °C, Default: 420.0 °C
INJ2
Range: 0.0−420.0 °C, Default: 420.0 °C
AUX3/AUX4/AUX5
Range: 10.0−420.0 °C, Default: 420.0 °C
AUX3, AUX4 and AUX5 are available optionally.
If the are installed, the AUX temperature control unit (P/N 221-48458-91) is required.
16.6.4.3 PF menu list
Selection: Yes/No, Default: Yes
When “Yes” is selected, the Detector temperature setting value must be bigger than or
equal to the Oven temperature setting value.
When “No” is selected, the Detector temperature setting value may be smaller than the
Oven temperature setting value.

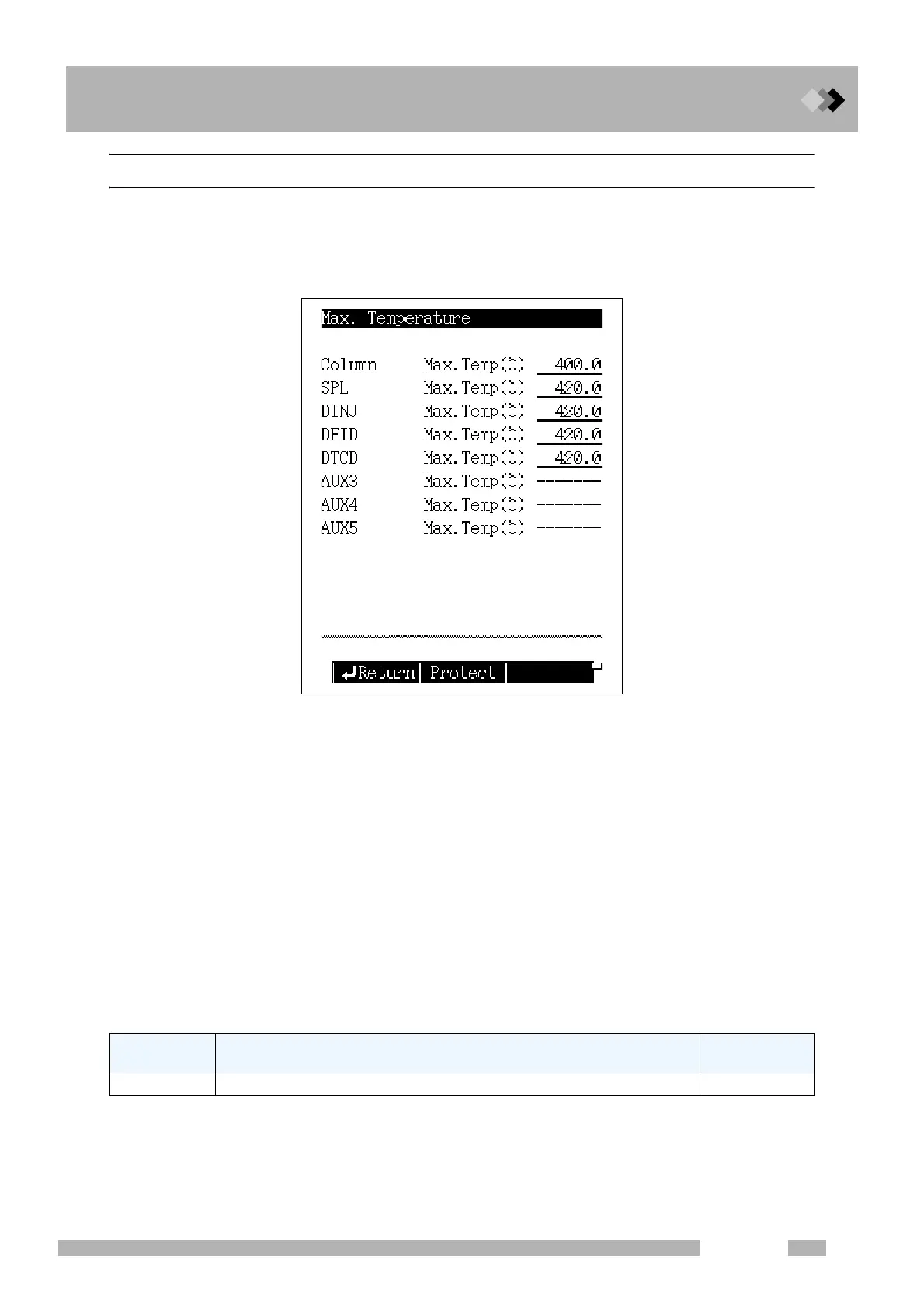

Fig. 16.6.3 Maximum temperature setup screen
PF menu Description
Reference
chapter
Protect Protection against contamination
――

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
