Shimadzu GC-2014 Instruction Manual

14 Diagnosis
14.6
14.
194
GC-2014
14.6Peak Generator
Select “6. PEAK GENERATOR” to generate electronic peaks to confirm of the operation of the
data processing unit.
14.6.1 Screen description
Select “6. PEAK GENERATOR” from the [DIAG] key screen to display the Peak generator
screen shown in Fig. 14.6.1.
14.6.2 Parameter list
PEAK GENERATOR
Range: On/Off, Default: Off
MODE
Range: Noise/No Noise/Trunc, Default: Noise
Ch1−Ch4 STANDARD SIGNAL
Range: On/Off, Default: Off
14.6.3 PF menu

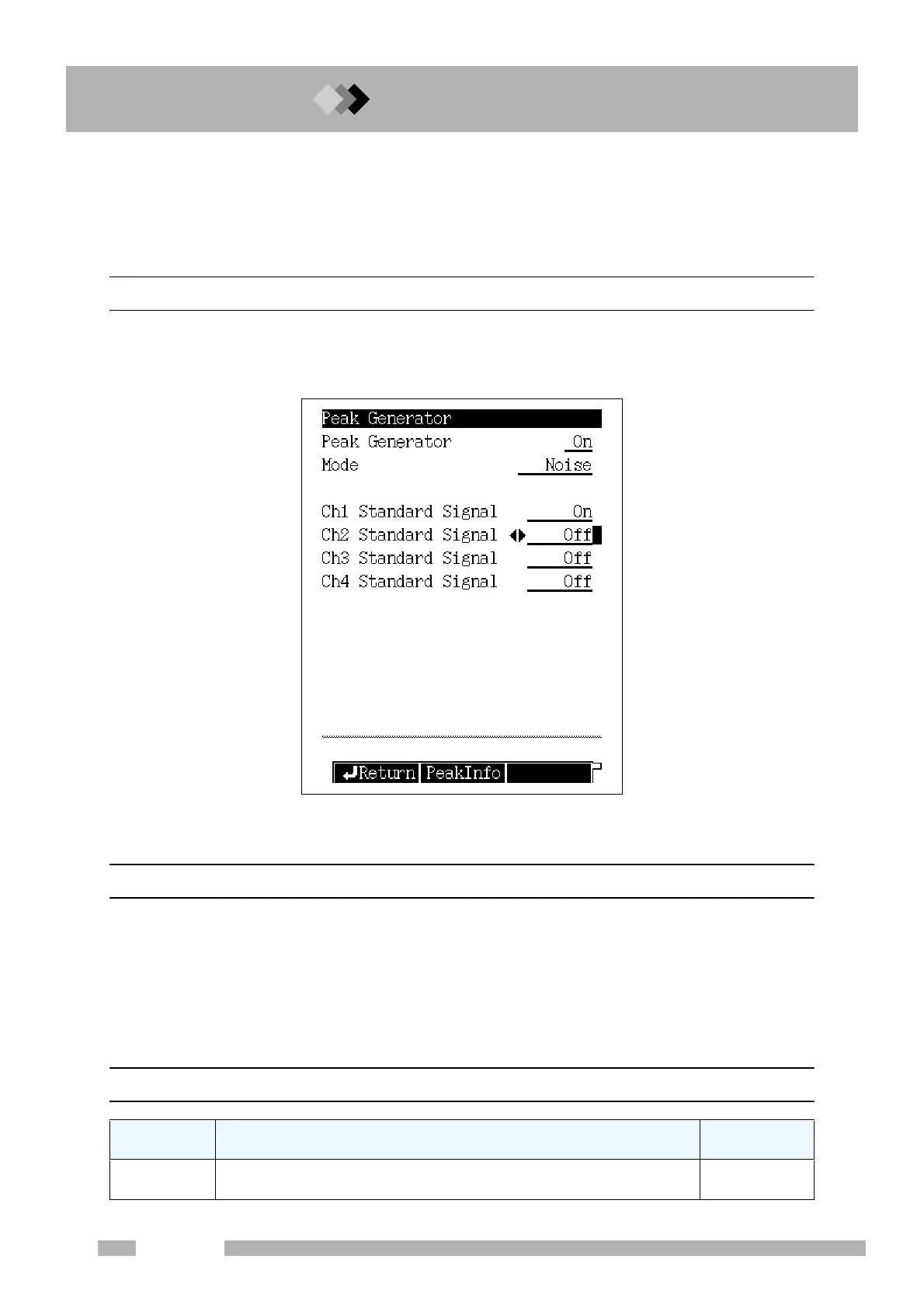

Fig. 14.6.1 Peak generator setup screen
PF menu Description
Reference
section
Peak Info
Specify the parameters (retention time, full width at half height and peak
height) of the peaks to be generated.
――

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
