Shimadzu GC-2014 Instruction Manual

4 Installing Capillary Columns and Setting Analytical Flow Lines
4.5
4.
58
GC-2014
4.5Single DET
To perform capillary analysis using a unit with the single DET (single FID, ECD, FPD, and
capillary FTD), makeup gas is used as described below.
Install the detector adapter to the detector joint then install a column. Detector adapter
comes with all single DET units listed above.
A makeup gas flow controller comes with them.
Makeup gas is unnecessary.

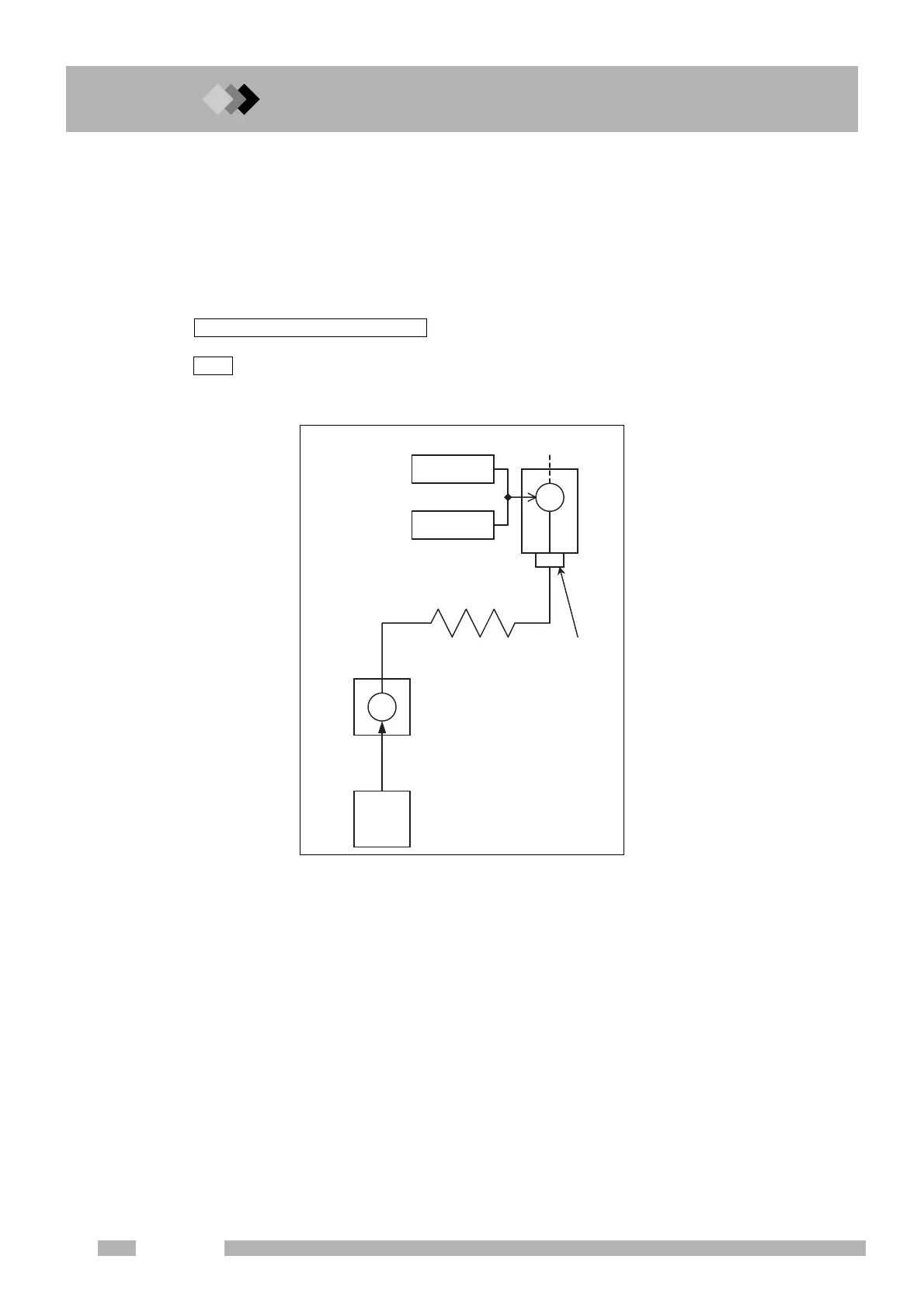

Fig. 4.5.1 Single DET (In case of FID)
Single FID, ECD, and capillary FTD
FPD
Column
Detecto
r
adapter
Single DET
SPL
AFC
Hydrogen
Makeup gas
Flow controller

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
