16 Special Functions
16.6
16.
GC-2014
16.6GC Configuration
16.6.1 Screen description
Select “6. GC CONFIGURATION” from the [FUNC] key screen to display the GC
configuration screen shown in Fig. 16.6.1.
16.6.2 Parameter list
DATE/TIME SETTING
Set the date and the time.
MAX. TEMPERATURE
Set the maximum temperature limit for each headed zone.
TRANSMISSION PARAMETER
Set the parameters related to transmission.
READY CHECK
Indicate the conditions, which should be satisfied in order for the system to be ready and the
STATUS light to illuminate.
SIGNAL SETTING
Set the signals which can be output from the gas chromatograph.
PORT NAME CUSTOMIZATION
Customize the names of various GC items.
LINK DEVICE CODE
Set the link device code the GC is linked to a Chromatopac.

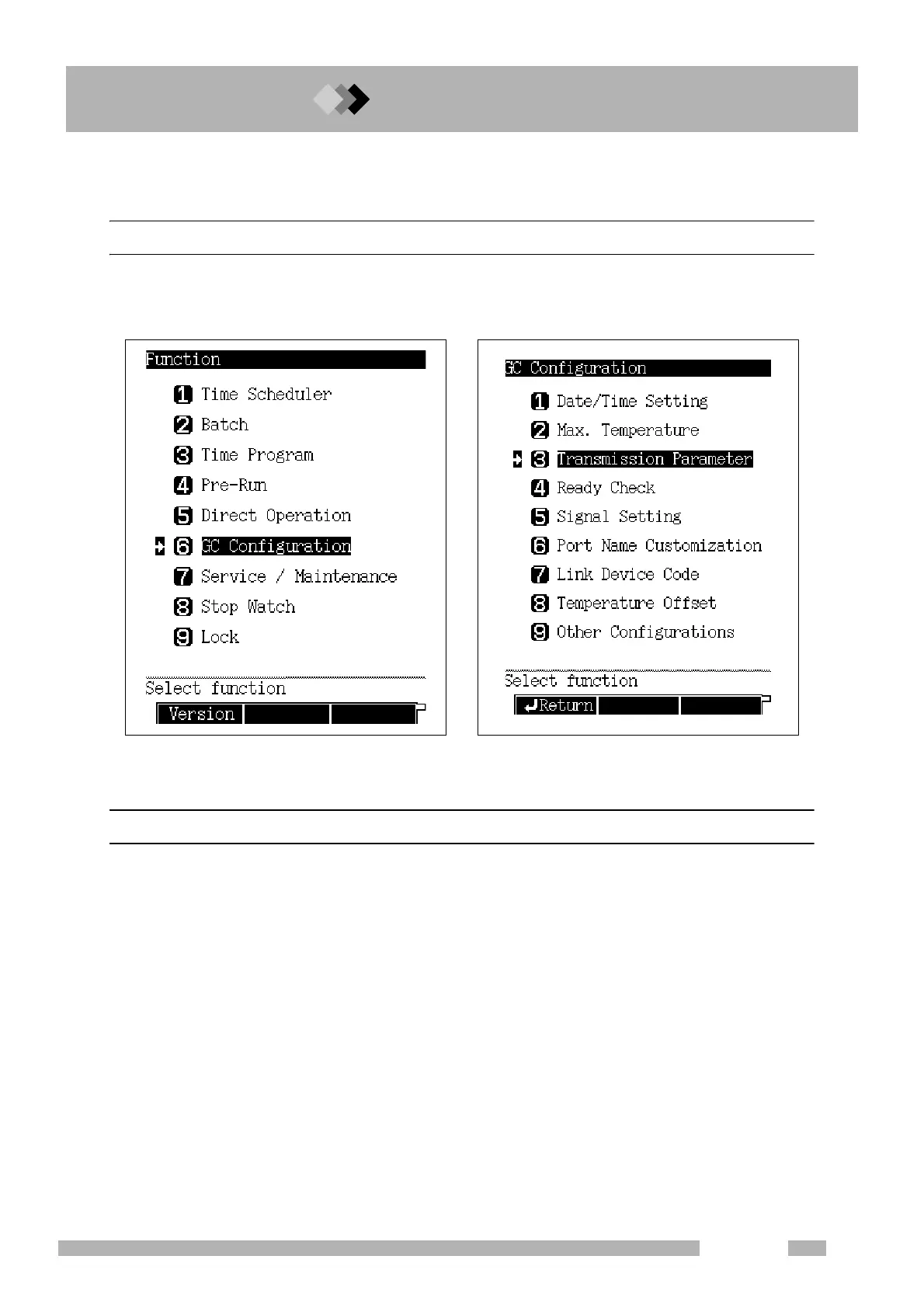

Fig. 16.6.1 GC Configuration setup screen

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
