6.3.2 Moving the cursor
Use the four keys, [ △ ], [ ▽ ], [ ] and [ ] to move the cursor to an item to be set.
However, for screens with listed items, only the [ △ ] and [ ▽ ] keys may be available to move
the cursor. The [ ] and [ ] keys may perform a different function.

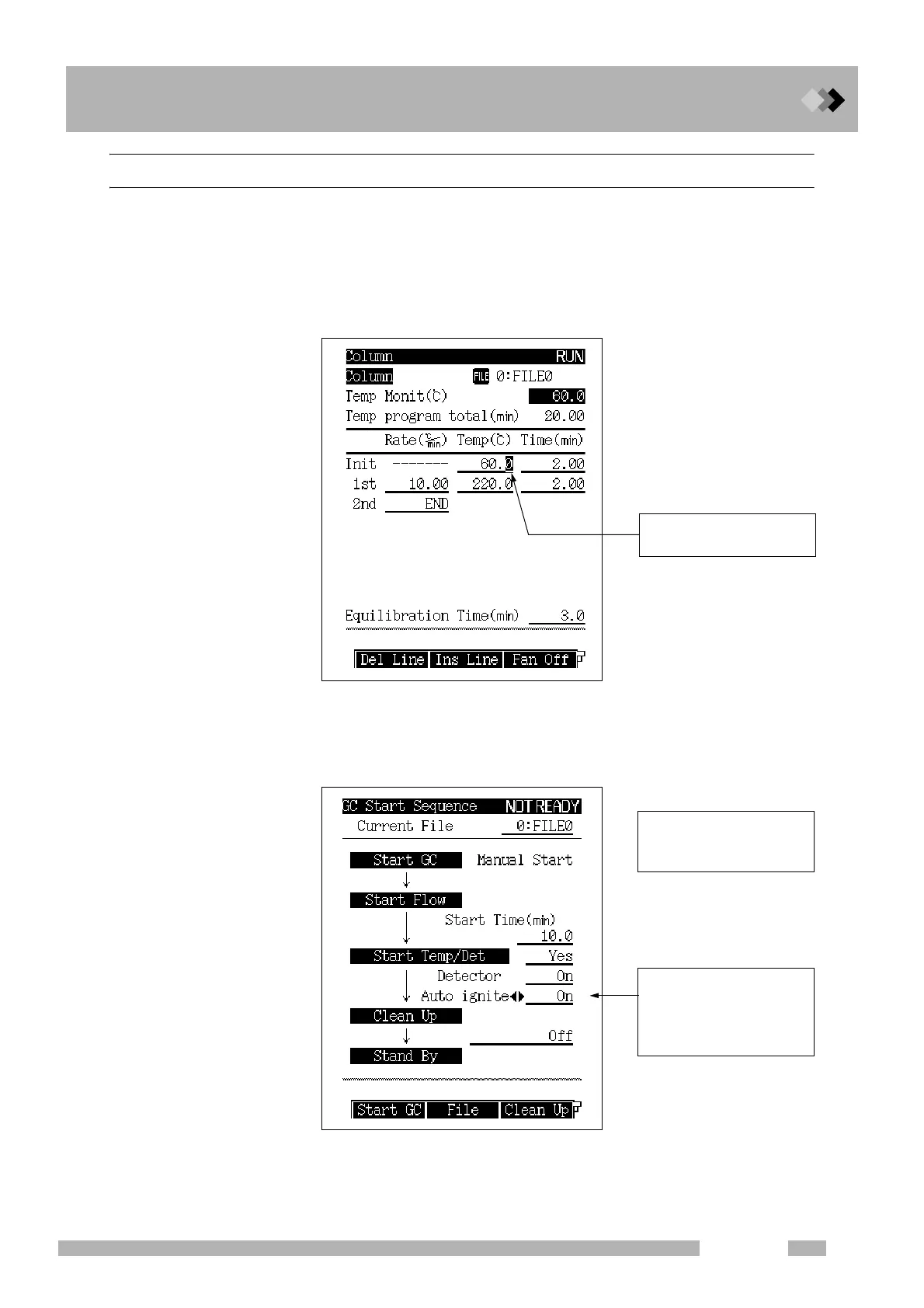

Q Moving the cursor using the [ △ ], [ ▽ ], [] and [] keys
Example: Main screen of the [COL] key
Q Moving the cursor using only the [ △ ] and [ ▽ ] keys
Example: Main screen of the [FLOW] key
Fig. 6.3.2
Fig. 6.3.3
△
△
△
△
△
△
Move the cursor using the
[△], [▽], [ ] and [ ] keys.
△
△
Move the cursor to each
parameter using the [ △ ]
and [ ▽ ] keys.
Items marked with “ ” and
“ ” use the [ ] and [ ]
keys to change the selection.
In this case, the selection is
changed from On → Off → On.
△
△
△
△

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
