Shimadzu GC-2014 Instruction Manual

12 Injection Port
12.2 Split/Splitless Injection System
141
GC-2014
12.2.8 Septum purge
Set the septum purge flow rate. The septum purge removes contamination from the injection
port at the septum.
The septum purge flow rate is set here.
12.2.8.1 Screen description
Select [Purge] (PF menu) from the [FLOW] key main screen to display the septum
purge screen shown in Fig. 12.5.13.

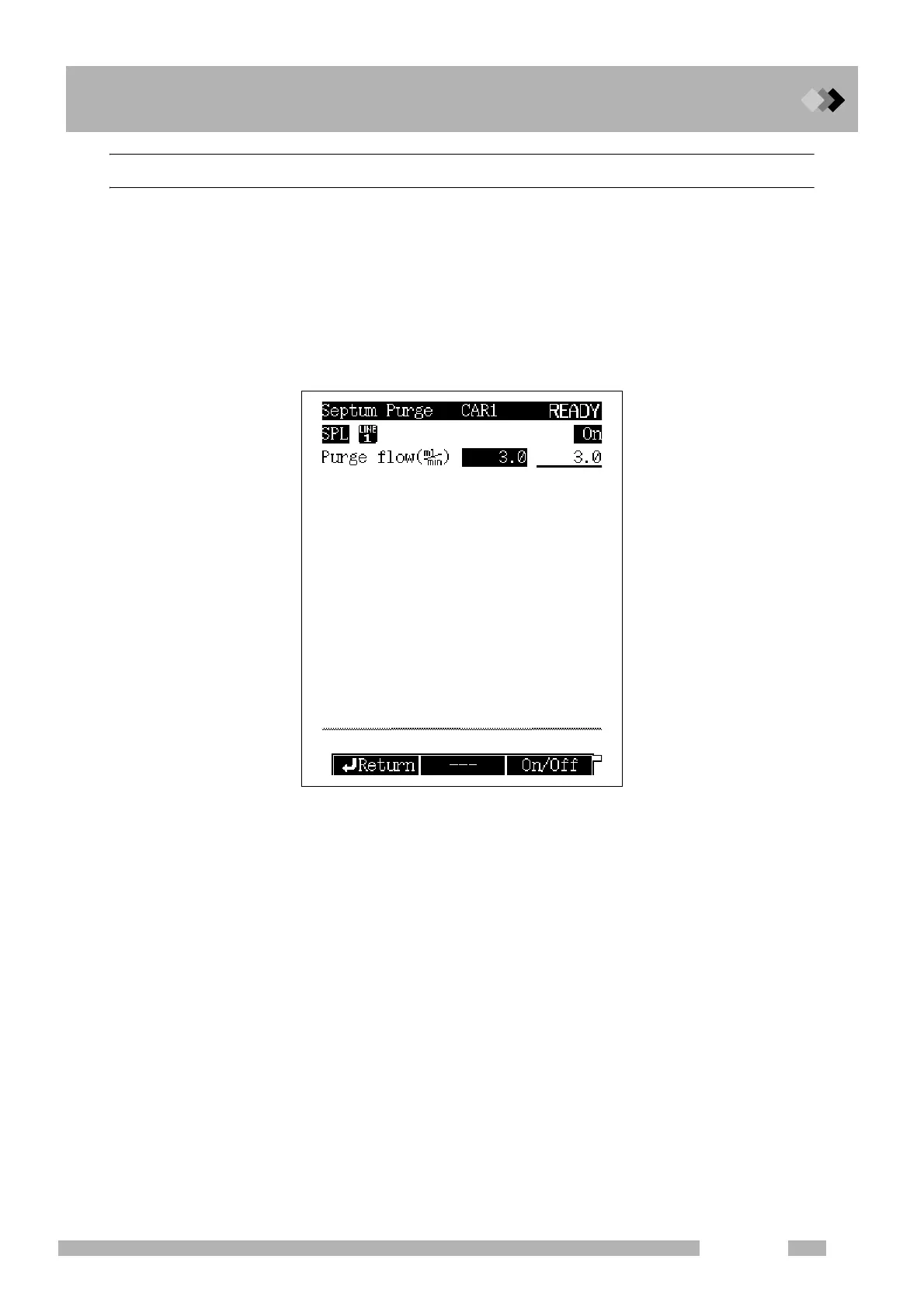

Fig. 12.2.14 Septum purge setup screen

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
