Shimadzu GC-2014 Instruction Manual

6 Basic Key Operation
6.3
6.
72
GC-2014
6.3Basic Key Operations
6.3.1 Screen display
Use the following 10 keys to display the parameter and status screens:
[DIAG], [SYSTEM], [MONIT], [SET], [FUNC], [COL], [FLOW], [INJ], [DET] and [OPTION].
Access the main function screens by pressing one of these keys, then the secondary
screens by selecting a PF menu item displayed at the bottom of the screen. (Because the
PF menu includes direct operations, some PF menu items do not have secondary screens.)

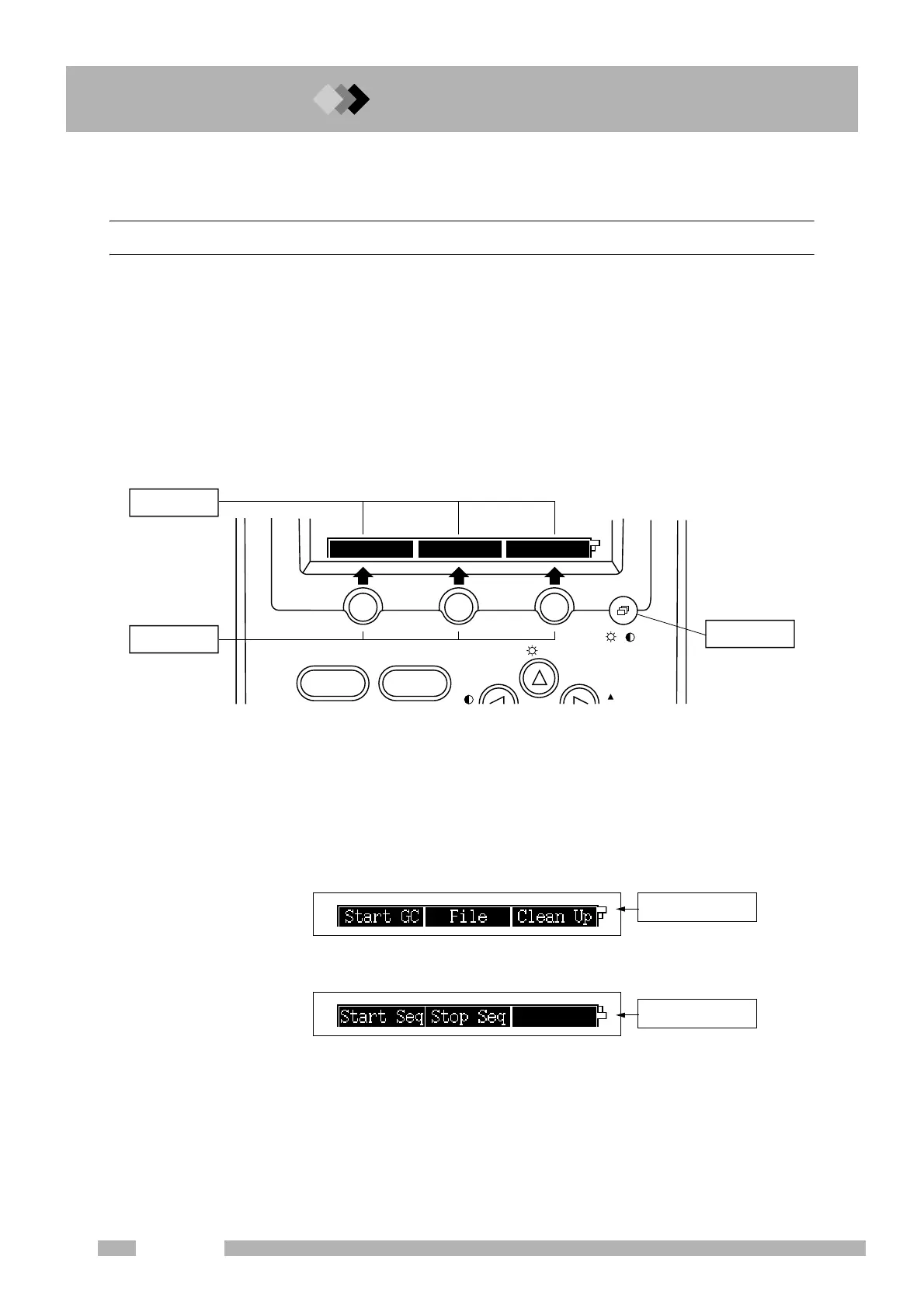

Q PF menu item selection
Select a desired PF menu item by pressing the PF keys ([PF1], [PF2] and [PF3]) underneath
the screen, which correspond to PF menu items.
Fig. 6.3.1
If the PF menu continues over two or more pages, press the [Toggle] key to display the
desired PF menu, then press the [PF] key.
Example:
1st page of PF menu
Press the [Toggle] key to display the 2nd page.
PF1 PF2 PF3
MONIT SET
ON
PF menu
PF key
[Toggle] key
File LineConfg Customiz
Indicates page 1.
Indicates page 2.
PF menu
PF key
-
Toggle key

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
