Shimadzu GC-2014 Instruction Manual

3 Installing Packed Columns and Setting Analytical Flow Lines
3.5
3.
42
GC-2014
3.5Packed Analysis Using the Single DET
To perform glass packed column analysis using the unit with the single DET (single FID,
ECD, FPD, and FTD for packed analysis), move the dual INJ to the front of the single DET
prior to connecting a column.
1. When a SUS column is used, the dual INJ does not need to be moved.
2. If the single packed INJ is installed in front of the single DET, analysis can be performed without
moving the dual INJ. For detailed descriptions, refer to instruction manual of the single packed INJ.

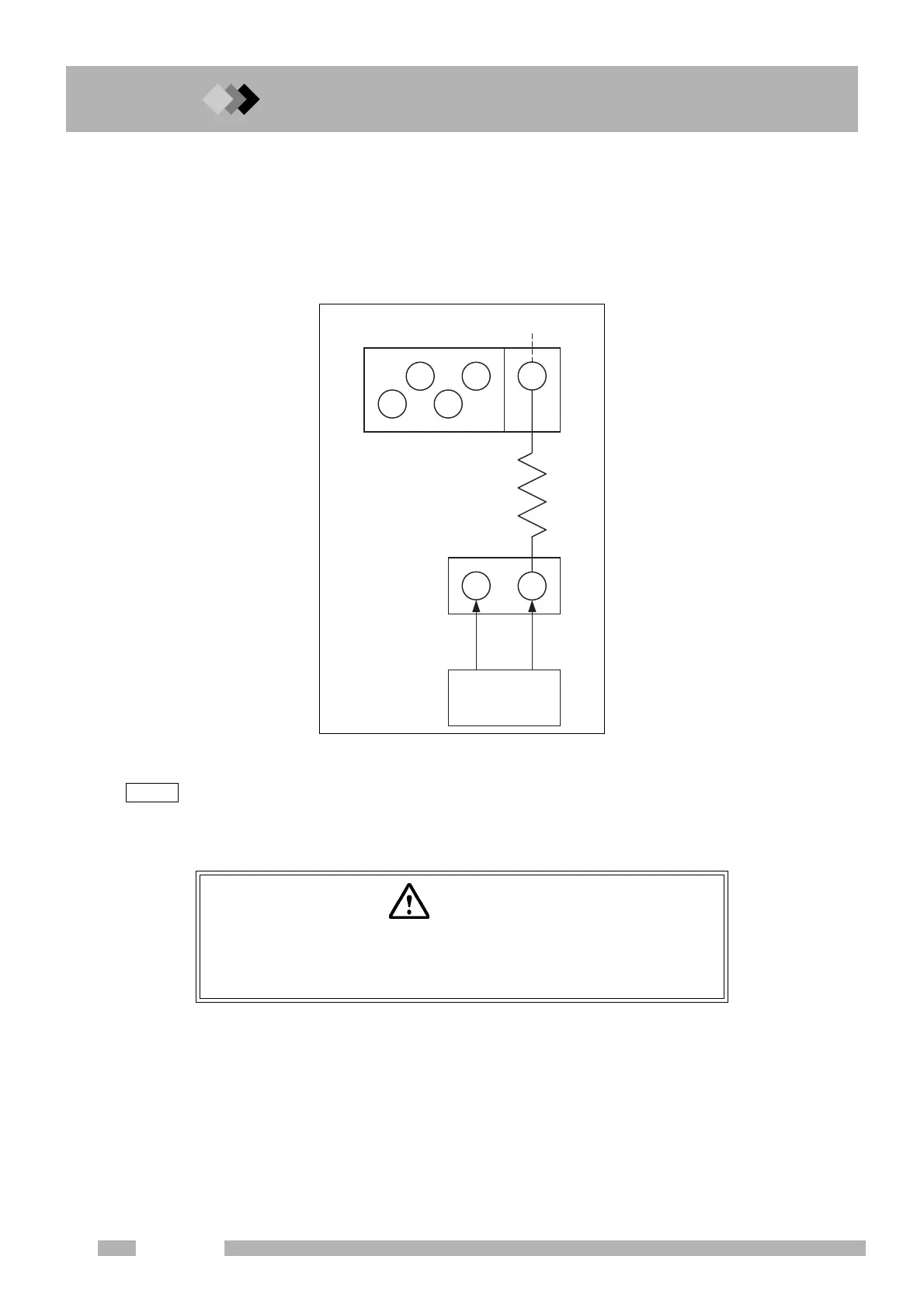

Fig. 3.5.1 Single DET configuration
CAUTION
Dual INJ is set on the single mode so carrier gas is not fed to the
unspecified port (L on the figure above). Do not connect a column to
the port.
L
(L) (R)
Dual INJ
R
Dual AFC
Dual FID/TCD
Column
L R
Single DET
NOTE

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
