Shimadzu GC-2014 Instruction Manual

14 Diagnosis
14.5
14.
192
GC-2014
14.5Standard Installation Test
After the system has been installed by your Shimadzu representative, the standard installation
test is performed to check whether the system is functioning properly.
14.5.1 Screen description
Select “5. STANDARD INSTALLATION” from the [DIAG] key screen to display the Standard
installation screen shown in Fig. 14.5.1.
The installation test can be performed at any time to check for proper functioning. From this
screen, load the analytical conditions of the standard installation test.
14.5.2 PF menu

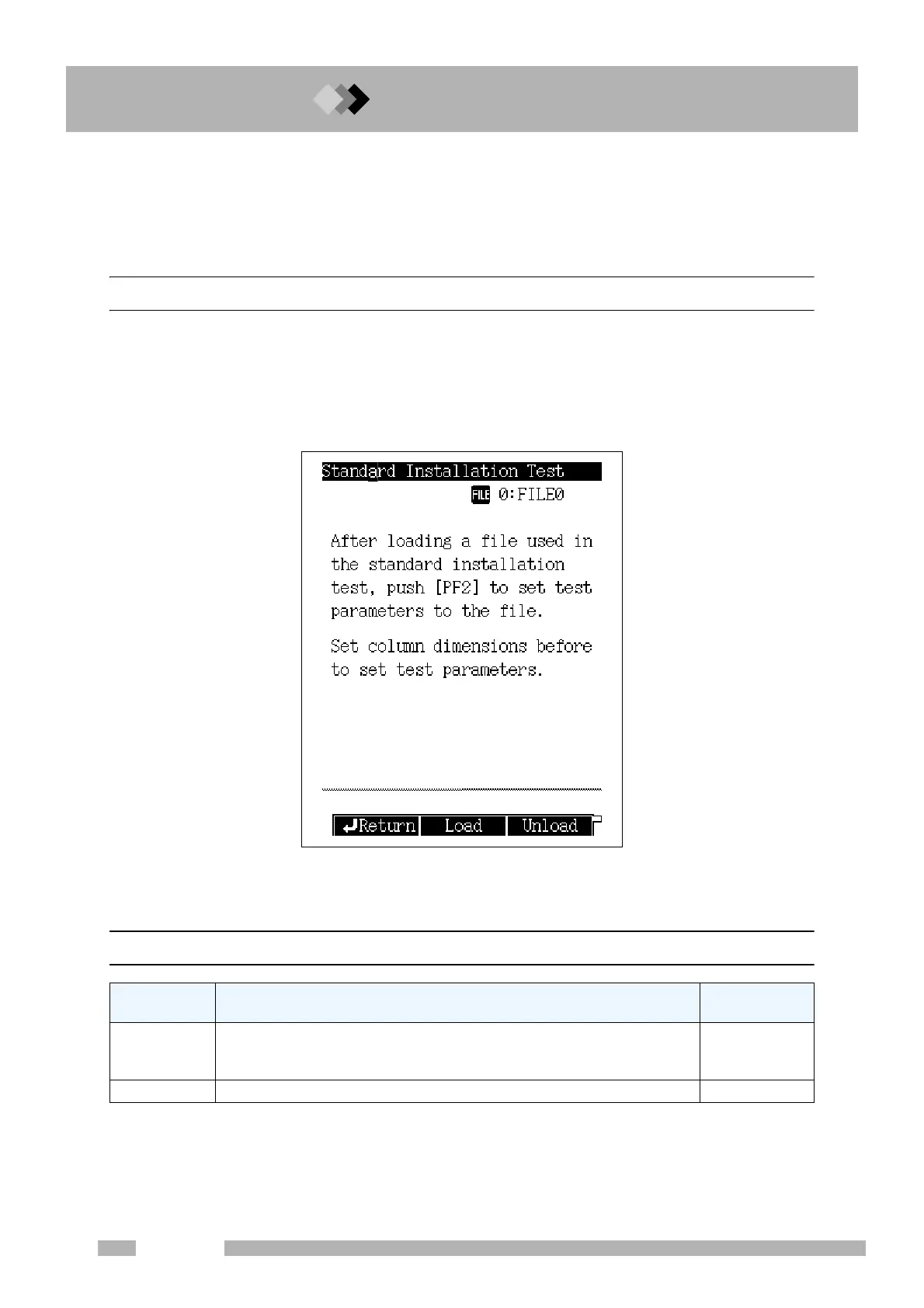

Fig. 14.5.1 Standard installation test main screen
PF menu Description
Reference
section
Load
Automatically sets the analytical conditions of the standard installation test.
When [Load] (PF menu) is pressed, “TEST” is displayed for the used file
name.
――
Unload Returns analytical conditions to their former status.
――

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
