Shimadzu GC-2014 Instruction Manual

16 Special Functions
16.2 Batch Schedule
221
GC-2014
16.2.4 Creating a new batch schedule
Select [New] (PF menu) from the batch schedule screen to display the new batch schedule
screen shown in Fig. 16.2.2.
Set an item using the [ △ ] and [ ▽ ] keys and [ENTER] key. When [Finish] (PF menu)
becomes available and the items have been set, press [Finish] to validate the schedule.
At the top of the screen, the contents of the set schedule are displayed. At the bottom of the
screen, the schedule can be edited.
Up to 100 lines are available per schedule.

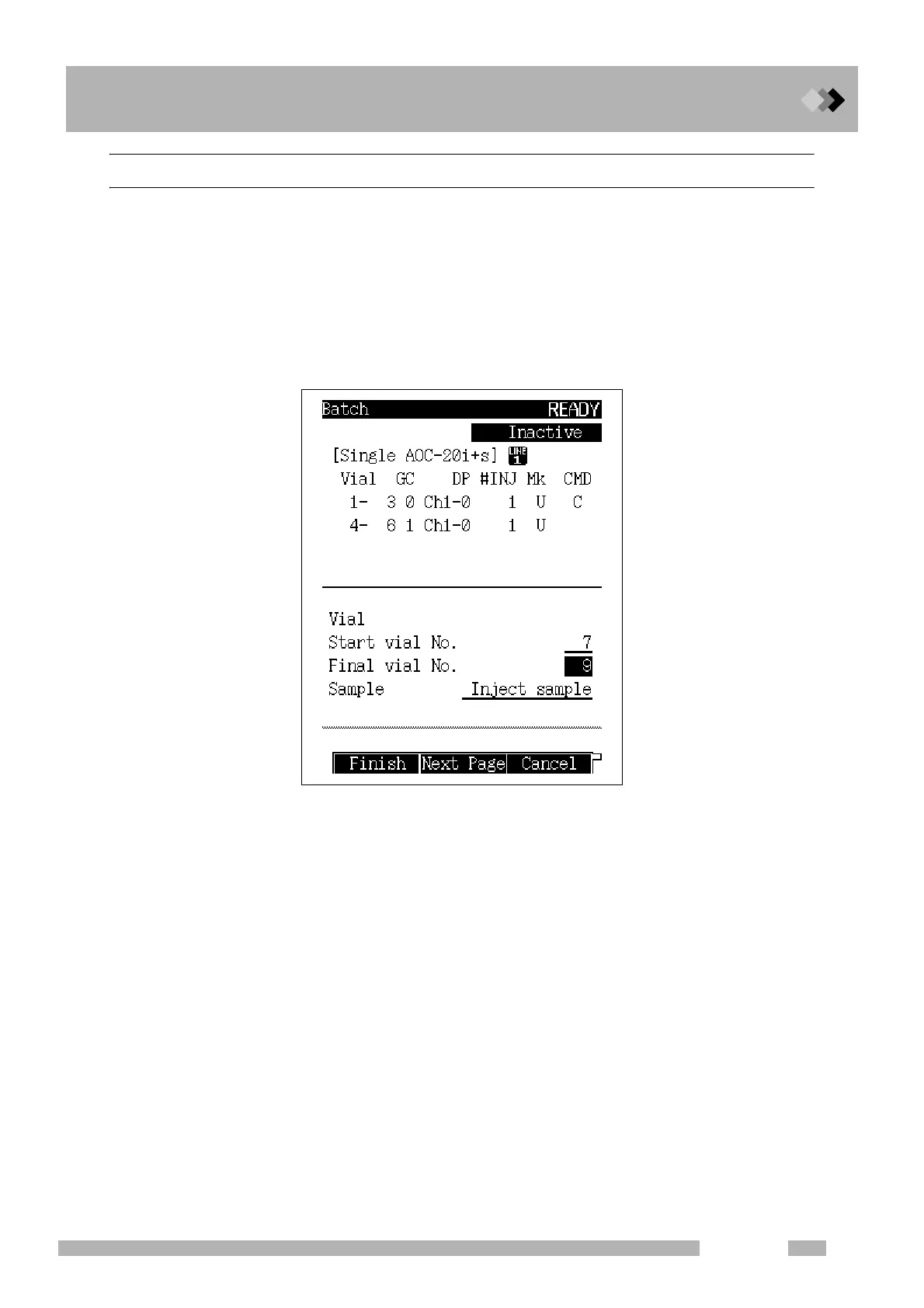

Fig. 16.2.2 New batch schedule screen

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
