Shimadzu GC-2014 Instruction Manual

16 Special Functions
16.6 GC Configuration
239
GC-2014
16.6.6 Setting the Ready Check Parameters
The Ready Check verifies whether the preset analytical conditions have been met.
When the selected items reach the specified settings, the STATUS light illuminates.
16.6.6.1 Screen description
Select “6. GC CONFIGURATION” from the [FUNC] key screen, and then select “4.
READY CHECK”, to display the ready check screen shown in Fig.16.6.5.
Set each parameter to “yes” or “no”. All parameters with “yes” must reach their initial
parameter starts in order for the GC to be ready and the STATUS light to turn green.
16.6.6.2 Parameter list
HEATER PORT
TEMP
Selection: Yes/No, Default: Yes
Indicate which headed zones should be included in the ready check.
CARRIER GAS
Selection: Yes/No, Default: Yes
SEPTUM PURGE
Selection: Yes/No, Default: Yes
Indicate which injection port septum purge flow lines should included in the check.
The displayed items depend on the injection port type.
DET FLOW GAS
MAKE UP
Selection: Yes/No, Default: Yes
HYDROGEN
Selection: Yes/No, Default: Yes

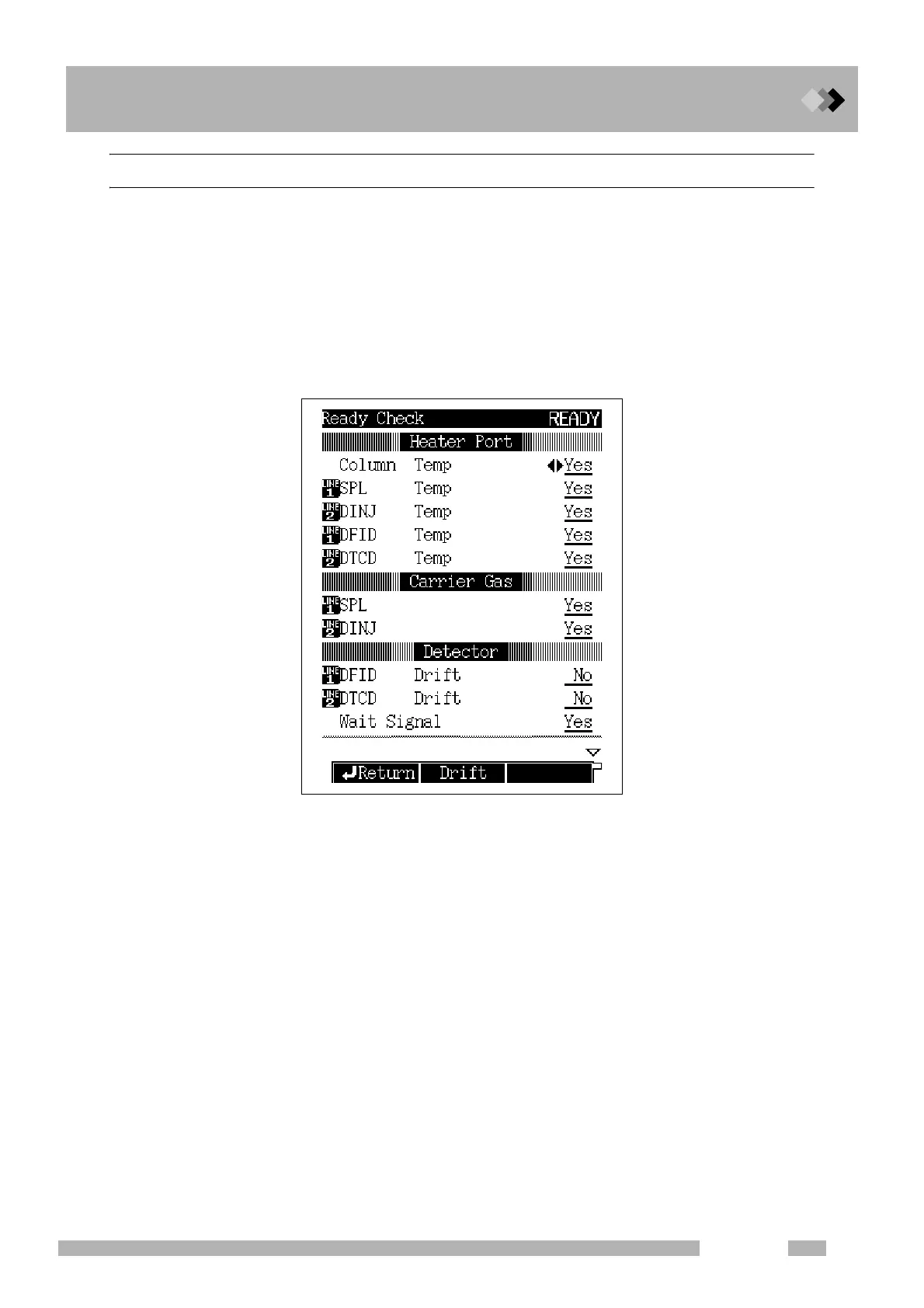

Fig. 16.6.5 Ready Check setup screen

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
