Shimadzu GC-2014 Instruction Manual

14 Diagnosis
14.2 Log Reading Menu
183
GC-2014
14.2.4 Analysis log
When “2. ANALYSIS LOG” is selected, the analysis log is displayed. This log records
whether analyses were allowed to finish and whether monitored valves exceeded their set
valves.
(1) Screen description
Select “2. LOG READING MENU” from the [DIAG] key main screen, then select “2.
ANALYSIS LOG” to display the screen shown in Fig. 14.2.3.
25−545 logs are saved. The number of saved logs depends on the size of each log. If
the number of logs exceeds the capacity, existing logs are deleted starting from the
oldest.
During a temperature program, if the rate of temperature increase is too great, the GC may not be
within the Ready range. When this occurs, the analysis log shows “Fail”.
If there are more items than can be displayed on one screen, scroll through the screen using the left
and right arrow keys.
(2) PF menu

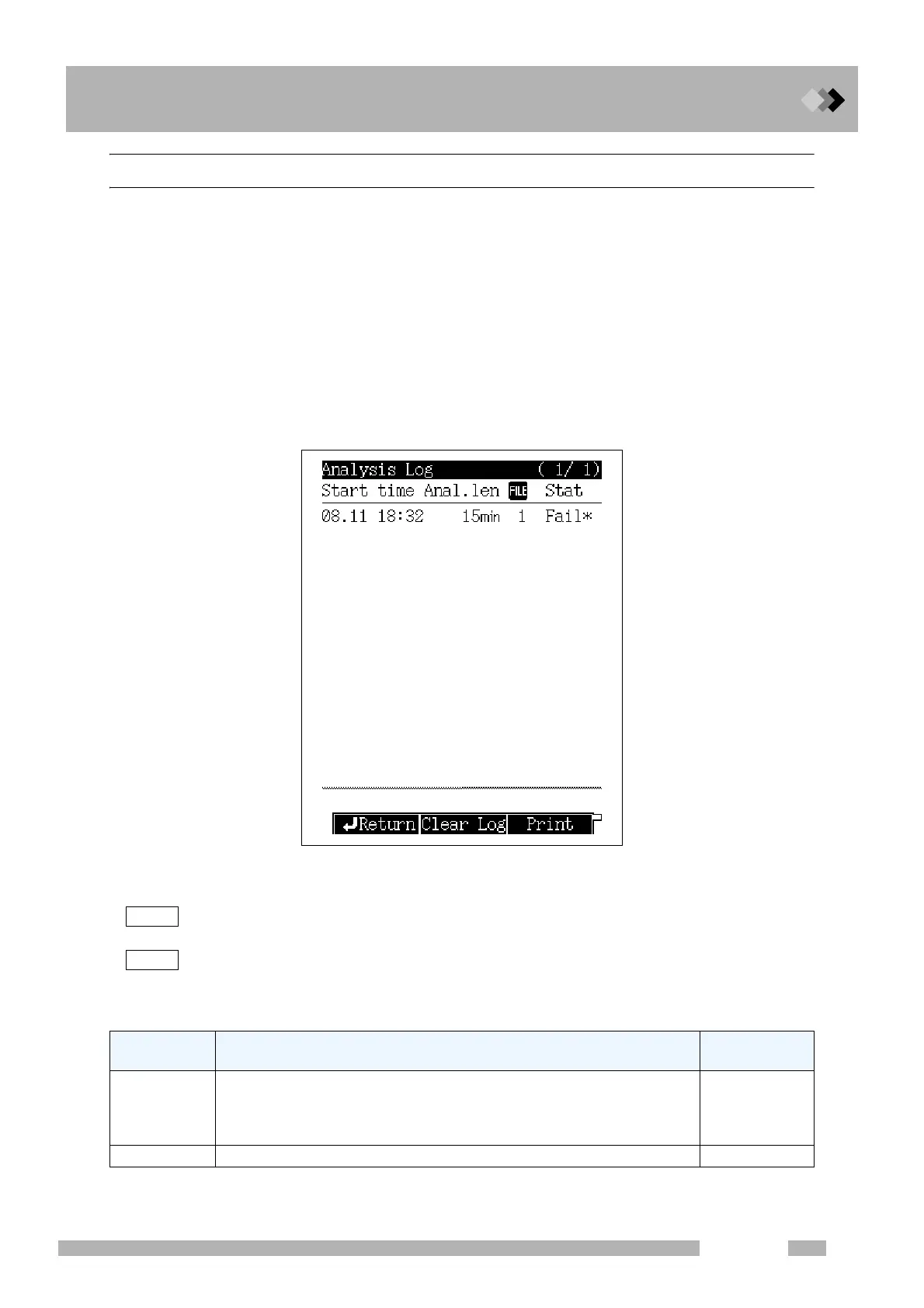

Fig. 14.2.3 Analysis log screen
PF menu Description
Reference
section
Clear Log
Deletes all displayed logs.
When [Clear Log] (PF menu) is pressed, the screen changes and the
message “Clear log with PF2” appears. Press [Clear Log] (PF menu) to
clear the log.
――
Print Prints the analysis log to a Chromatopac.
――
NOTE
NOTE

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
